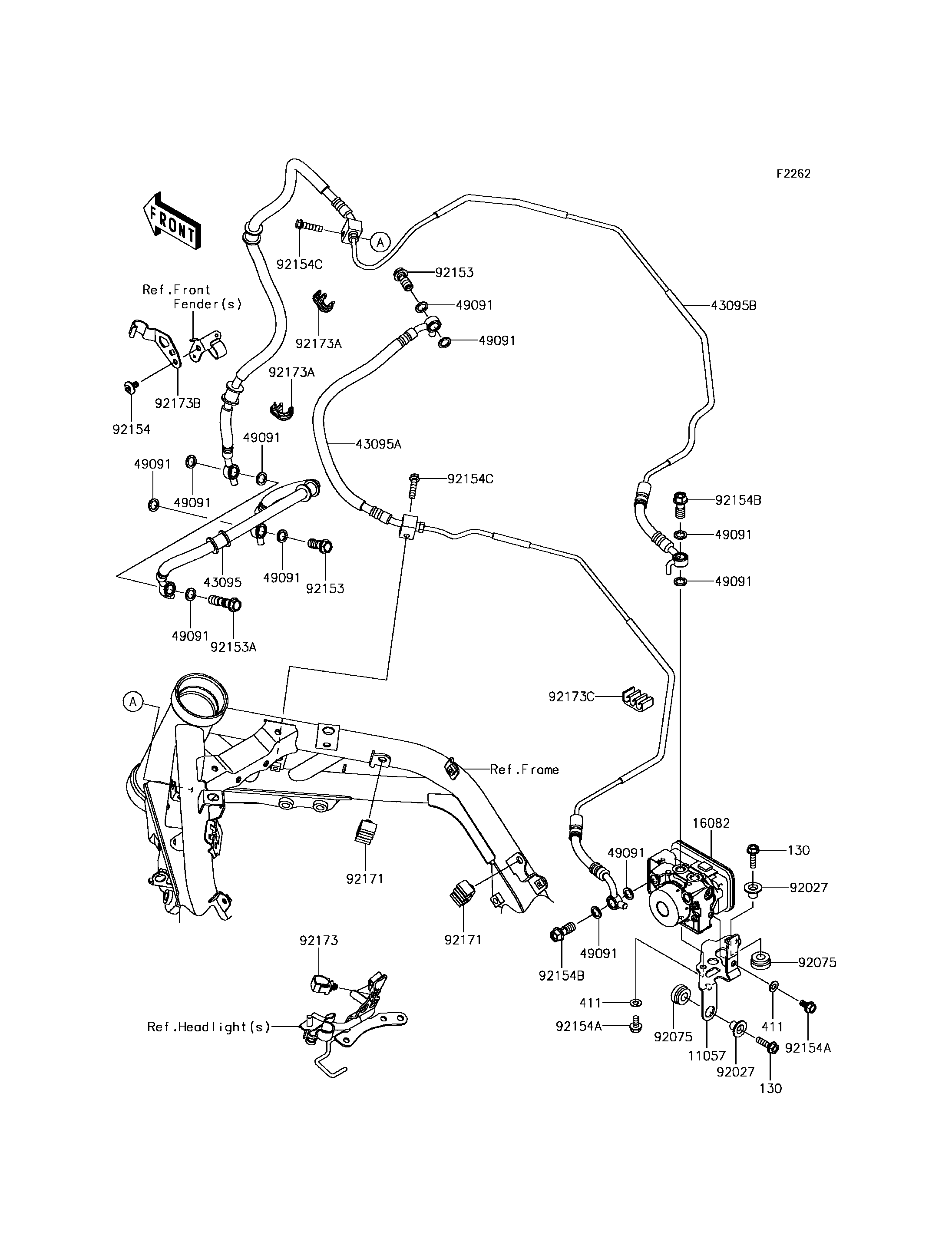

2017 Z900 ABS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
130
130
411
411
11057
16082
43095
43095A
43095B
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
92027
92027
92075
92075
92153
92153
92153A
92154
92154A
92154A
92154B
92154B
92154C
92154C
92171
92171
92173
92173A
92173A
92173B
92173C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X22 130 130BA0622 2
WASHER-PLAIN,6MM 411 411AA0600 2
BRACKET 11057 11057-0256 1
PUMP-ASSY-OIL,ABS 16082 16082-0769 1
HOSE-BRAKE,FR,444MM 43095 43095-0970 1
HOSE-BRAKE,FR M/CYL.-ABS UNIT 43095A 43095-0999 1
HOSE-BRAKE,ABS UNIT-FR CALIPER 43095B 43095-1000 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 11
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
DAMPER 92075 92075-277 2
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,OIL,L=37 92153A 92153-0628 1
BOLT,SOCKET,6X10 92154 92154-0774 1
BOLT,FLANGED,6X12 92154A 92154-1050 2
BOLT,BANJO,10X22 92154B 92154-1138 2
BOLT,FLANGED,6X25 92154C 92154-2154 2
CLAMP 92171 92171-0818 2
CLAMP,HOLDER CLIP 92173 92173-0868 1
CLAMP,HOSE&SENSOR LINE 92173A 92173-1613 2
CLAMP,FR FENDER 92173B 92173-1634 1
CLAMP,PIPE TRIPLE 92173C 92173-1705 1
