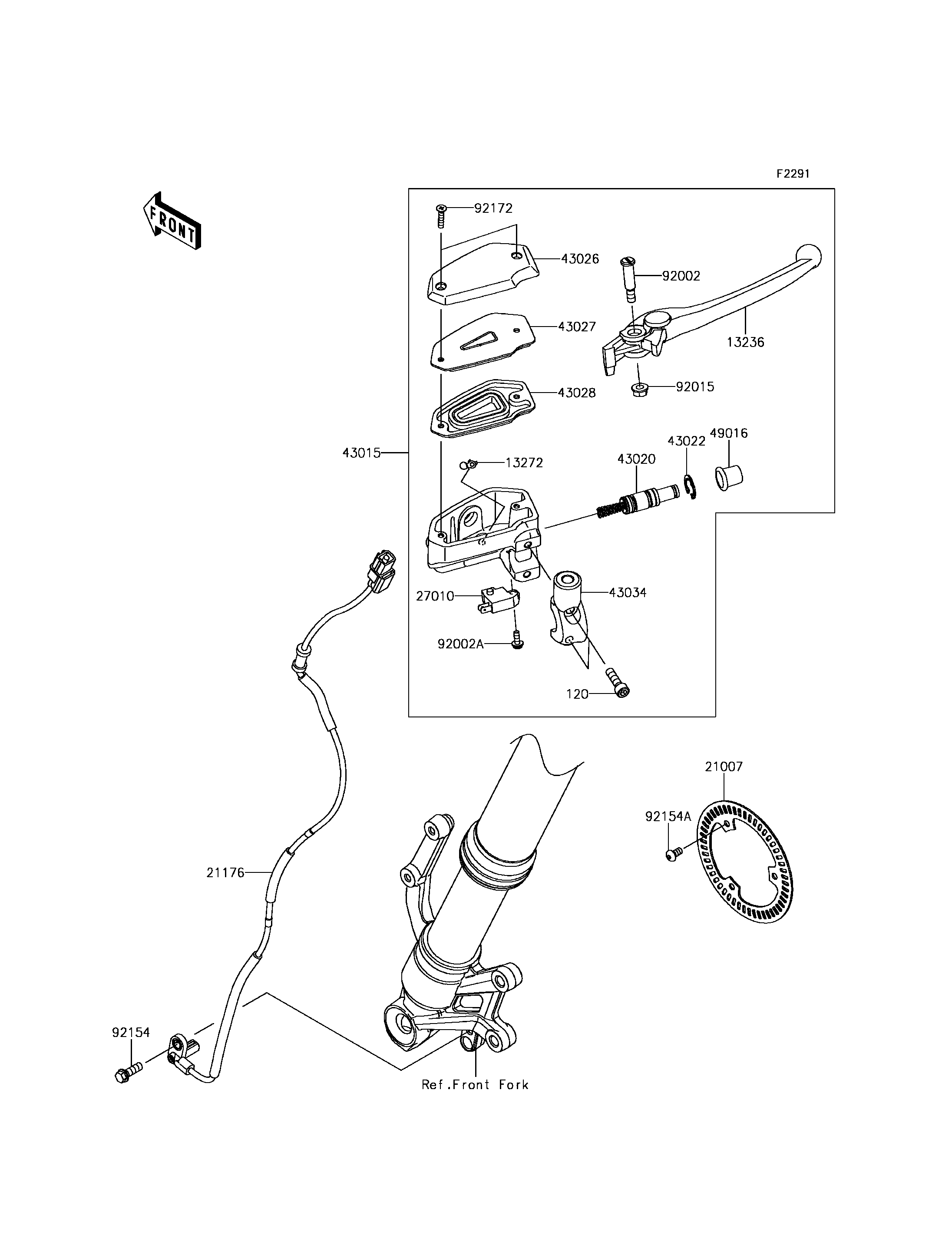

2017 Z900 ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
120
13236
13272
21007
21176
27010
43015
43020
43022
43026
43027
43028
43034
49016
92002
92002A
92015
92154
92154A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X22 120 120CB0622 2
LEVER-COMP,FRONT BRAKE 13236 13236-0140 1
PLATE 13272 13272-0573 1
ROTOR,SENSOR,FR 21007 21007-0643 1
SENSOR,SPEED,FR 21176 21176-0833 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0588 1
PISTON-COMP-BRAKE 43020 43020-0008 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-0019 1
PLATE-DIAPHRAGM 43027 43027-0008 1
DIAPHRAGM 43028 43028-0015 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0049 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
NUT,FLANGED,6MM 92015 92015-1528 1
BOLT,FLANGED,6X18 92154 92154-0784 1
BOLT,SOCKET,5X10 92154A 92154-1292 3
SCREW,4X20 92172 92172-0320 2
