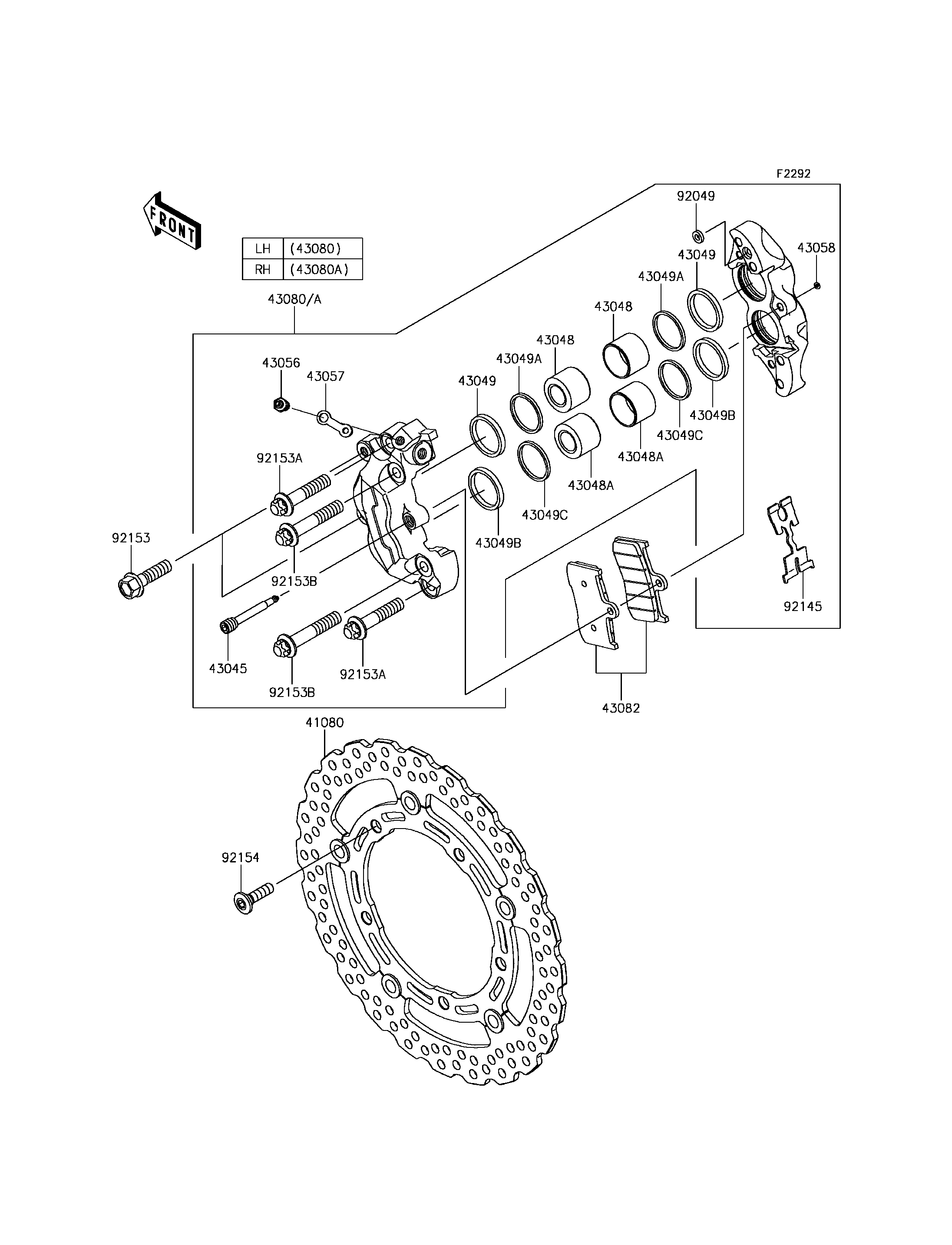

2017 Z900 ABS - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
43045
43048
43048
43048A
43048A
43049
43049
43049A
43049A
43049B
43049B
43049C
43049C
43056
43057
43058
43080
43080A
43082
92049
92145
92153
92153A
92153A
92153B
92153B
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR,BLACK+SIL 41080 41080-0676-11I 2
SHAFT-CALIPER 43045 43045-1053 2
PISTON-CALIPER 43048 43048-0001 4
PISTON-CALIPER 43048A 43048-0021 4
PACKING 43049 43049-0006 4
PACKING 43049A 43049-0007 4
PACKING 43049B 43049-0030 4
PACKING 43049C 43049-0031 4
BREATHER 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
RING,STOPPER 43058 43058-1100 2
CALIPER-SUB-ASSY,FR,LH,BLACK 43080 43080-0130-DJ 1
CALIPER-SUB-ASSY,FR,RH,BLACK 43080A 43080-0131-DJ 1
PAD-ASSY-BRAKE 43082 43082-0168 2
SEAL-OIL 92049 92049-1448 2
SPRING,PAD 92145 92145-0184 2
BOLT,FLANGED,8X30 92153 92153-1089 4
BOLT,TORX,8X38 92153A 92153-1093 4
BOLT,TORX,8X45 92153B 92153-1094 4
BOLT,SOCKET,8X30 92154 92154-0844 10
