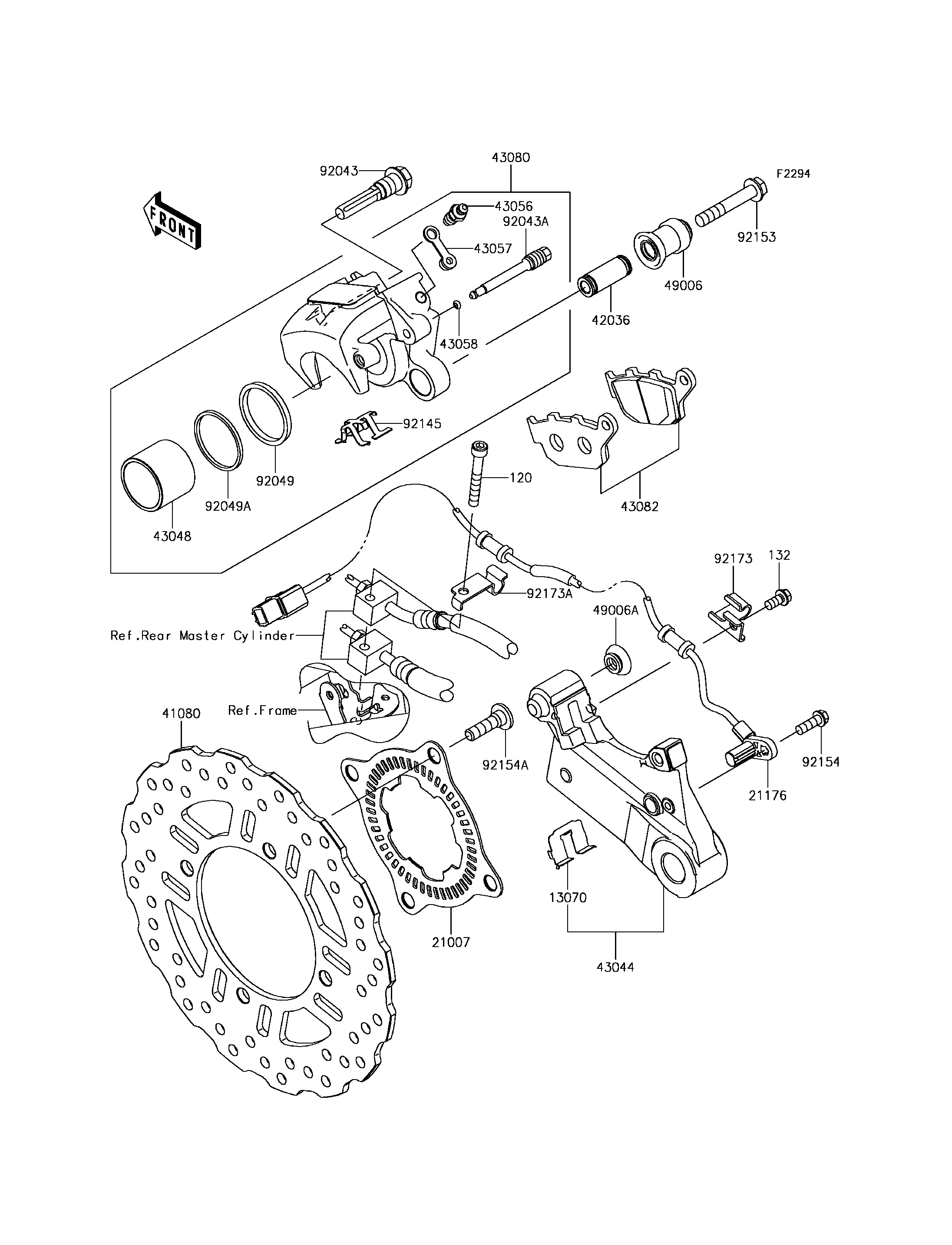

2017 Z900 ABS - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
120
132
13070
21007
21176
41080
42036
43044
43048
43056
43057
43058
43080
43082
49006
49006A
92043
92043A
92049
92049A
92145
92153
92154
92154A
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X45 120 120CA0645 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
GUIDE,BRACKET RETAINER 13070 13070-0795 1
ROTOR,SENSOR,RR 21007 21007-0645 1
SENSOR,SPEED,RR 21176 21176-0834 1
DISC,RR 41080 41080-0668 1
SLEEVE 42036 42036-0050 1
HOLDER-COMP-CALIPER 43044 43044-0082 1
PISTON-CALIPER 43048 43048-0008 1
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
RING,STOPPER 43058 43058-1100 1
CALIPER-SUB-ASSY,RR,BLACK 43080 43080-0156-DJ 1
PAD-ASSY-BRAKE 43082 43082-0151 1
BOOT 49006 49006-0058 1
BOOT,CALIPER 49006A 49006-1242 1
PIN 92043 92043-0137 1
PIN,HANGER 92043A 92043-0820 1
SEAL-OIL 92049 92049-1449 1
SEAL-OIL 92049A 92049-1450 1
SPRING,PAD 92145 92145-0493 1
BOLT,FLANGED 92153 92153-1826 1
BOLT,FLANGED,6X18 92154 92154-0784 1
BOLT,SOCKET,8X30 92154A 92154-0844 4
CLAMP,CALIPER HOLDER 92173 92173-1637 1
CLAMP,PIPE JOINT 92173A 92173-1638 1
