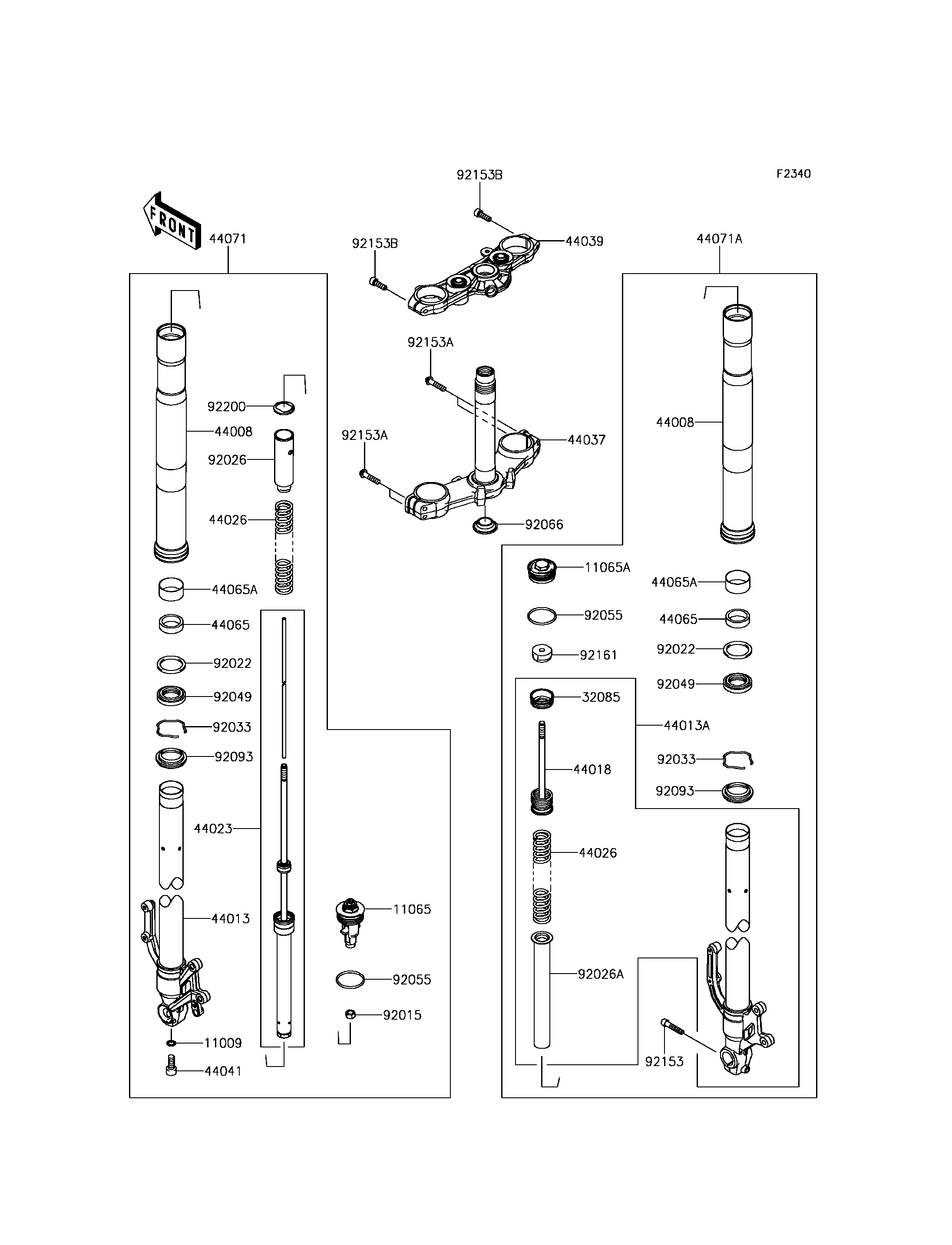

2017 Z900 ABS - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11065
11065A
32085
44008
44008
44013
44013A
44018
44023
44026
44026
44037
44039
44041
44065
44065
44065A
44065A
44071
44071A
92015
92022
92022
92026
92026A
92033
92033
92049
92049
92055
92055
92066
92093
92093
92153
92153A
92153A
92153B
92153B
92161
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X15X1.5 11009 11009-1325 1
CAP,COMP.,LH,BLACK 11065 11065-0972-58Z 1
CAP,COMP.,RH,GRAY 11065A 11065-0973-11G 1
STOPPER 32085 32085-0742 1
PIPE-FORK OUTER,A.BLACK 44008 44008-0062-499 2
PIPE-FORK INNER,LH 44013 44013-0292 1
PIPE-FORK INNER,RH 44013A 44013-0319 1
PISTON-FORK 44018 44018-0003 1
CYLINDER-SET-FORK,LH 44023 44023-0139 1
SPRING-FRONT FORK 44026 44026-0208 2
HOLDER-FORK UNDER,F.S.BLACK 44037 44037-0167-18R 1
HOLDER-FORK UPPER,F.S.BLACK 44039 44039-0167-18R 1
BOLT,SOCKET,FORK CYLINDER 44041 44041-040 1
BUSHING-FRONT FORK 44065 44065-0042 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1114 2
DAMPER-ASSY,FORK,LH,BLACK 44071 44071-1222-58Z 1
DAMPER-ASSY,FORK,RH,BLACK 44071A 44071-1223-58Z 1
NUT 92015 92015-1795 1
WASHER,FORK OUTER TUBE 92022 92022-1298 2
SPACER,FORK 92026 92026-0045 1
SPACER 92026A 92026-0837 1
RING-SNAP 92033 92033-1036 2
SEAL-OIL 92049 92049-0073 2
RING-O 92055 92055-0145 2
PLUG 92066 92066-0032 1
SEAL,FORK OUTER TUBE 92093 92093-1472 2
BOLT,SOCKET,8X40 92153 92153-0506 1
BOLT,FLANGED,8X35 92153A 92153-0649 4
BOLT,SOCKET,8X25 92153B 92153-1625 2
DAMPER,RUBBER CUSHION 92161 92161-1490 1
WASHER 92200 92200-0085 1
