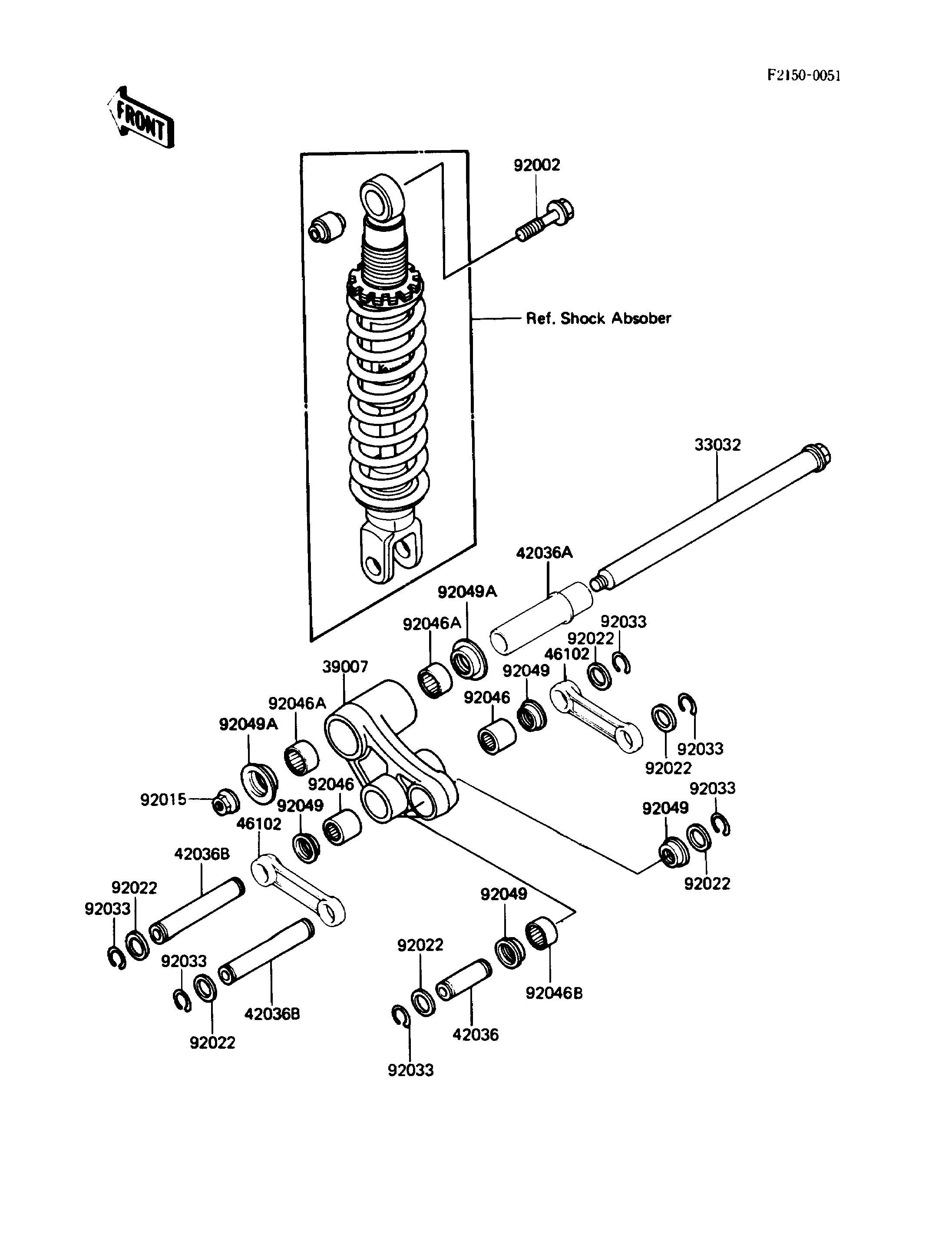

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-SWING ARM 33032 33032-1111 1
ARM-SUSP,UNI TRAK 39007 39007-1059 1
SLEEVE,L=59 42036 42036-1133 1
SLEEVE,L=100 42036A 42036-1136 1
SLEEVE,L=121 42036B 42036-1140 2
ROD,UNI TRAK 46102 46102-1129 2
BOLT,12X55 92002 92002-1130 1
NUT,14MM 92015 92015-1459 1
WASHER,20.1X28X1 92022 92022-1547 6
RING-SNAP,18.3MM 92033 92033-1168 6
BEARING-NEEDLE,BM202726 92046 92046-1110 2
BEARING-NEEDLE,BM283417 92046A 92046-1111 2
BEARING-NEEDLE,BM202715 92046B 92046-1112 1
SEAL-OIL,ARM,CNT 92049 92049-1109 4
SEAL-OIL 92049A 92049-1181 2
