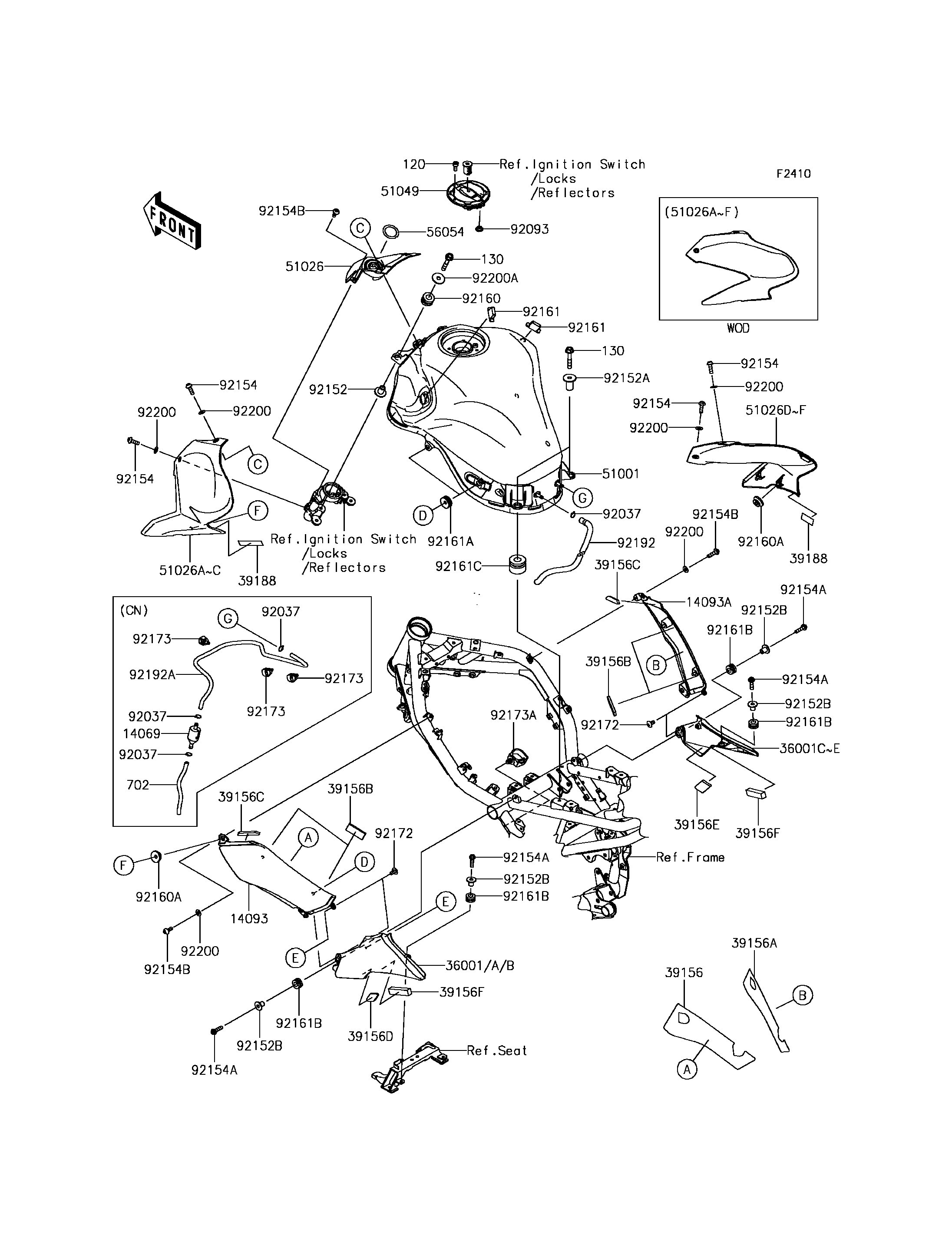

2017 Z900 ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14093
14093
14093A
14093A
36001
36001
36001B
36001B
36001C
36001C
36001E
36001E
39156
39156
39156A
39156A
39156B
39156B
39156B
39156B
39156C
39156C
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
39156F
39156F
39188
39188
39188
39188
51001
51001
51026
51026
51026A
51026A
51026C
51026C
51026D
51026D
51026F
51026F
51049
51049
56054
56054
92093
92093
92152
92152
92152A
92152A
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92154
92154
92154
92154
92154
92154
92154
92154
120
120
130
130
130
130
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92160
92160
92160A
92160A
92160A
92160A
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161C
92161C
92172
92172
92172
92172
92173A
92173A
92192
92192
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,KNEE GRIP,LH 14093 14093-0667 1
COVER,KNEE GRIP,RH 14093A 14093-0668 1
COVER-SIDE,SEAT,LH,P.M.GRAY 36001 36001-0658-36P 1
COVER-SIDE,SEAT,LH,M.S.BLACK 36001B 36001-0658-660 1
COVER-SIDE,SEAT,RH,P.M.GRAY 36001C 36001-0659-36P 1
COVER-SIDE,SEAT,RH,M.S.BLACK 36001E 36001-0659-660 1
PAD,KNEE GRIP COVER,LH 39156 39156-2147 1
PAD,KNEE GRIP COVER,RH 39156A 39156-2148 1
PAD,20X50X5 39156B 39156-2191 4
PAD,10X76X5 39156C 39156-2192 2
PAD,20X20X5 39156D 39156-2194 1
PAD,25X50X5 39156E 39156-2195 1
PAD,15X66X10 39156F 39156-2215 2
TAPE,8X35 39188 39188-0564 2
TANK-COMP-FUEL,M.S.BLACK 51001 51001-0853-660 1
COVER TANK,CNT 51026 51026-0013 1
COVER TANK,LH,P.M.GRAY 51026A 51026-0014-36P 1
COVER TANK,LH,M.F.S.BLACK 51026C 51026-0014-739 1
COVER TANK,RH,P.M.GRAY 51026D 51026-0015-36P 1
COVER TANK,RH,M.F.S.BLACK 51026F 51026-0015-739 1
CAP-TANK 51049 51049-0735 1
MARK,IG. SWITCH 56054 56054-1822 1
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.3X9.5X14.1 92152 92152-1847 2
COLLAR,6.3X12X22.6 92152A 92152-2252 2
COLLAR,5.6X8X11.2 92152B 92152-2342 4
BOLT,SOCKET,5X16 92154 92154-0209 4
BOLT-SOCKET,5X12 120 120CA0512 4
BOLT-FLANGED,6X35 130 130BA0635 4
BOLT,SOCKET,5X20 92154A 92154-0210 4
BOLT,SOCKET,5X12 92154B 92154-1421 4
DAMPER,10X20X12 92160 92160-1167 2
DAMPER 92160A 92160-1613 2
DAMPER 92161 92161-0365 2
DAMPER 92161A 92161-0588 4
DAMPER,8X16X8.6 92161B 92161-0685 4
DAMPER,12X28X21 92161C 92161-1468 2
SCREW,5X10 92172 92172-0864 4
CLAMP 92173A 92173-0861 1
TUBE,6X9X670/30 92192 92192-1688 1
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 6
WASHER,6.5X22X1.6 92200A 92200-1087 2
BREATHER,TANK 14069 14069-0008 1 CN
COVER-SIDE,SEAT,LH,C.L.GREEN 36001A 36001-0658-51P 1 CN
COVER-SIDE,SEAT,RH,C.L.GREEN 36001D 36001-0659-51P 1 CN
COVER TANK,LH,C.L.GREEN 51026B 51026-0014-51P 1 CN
COVER TANK,RH,C.L.GREEN 51026E 51026-0015-51P 1 CN
CLAMP,TUBE 92037 92037-010 1 CA
CLAMP,TUBE 92037 92037-010 4 CN
TUBE-RUBBER,6X9X300 702 702A06300 1 CN
CLAMP,12MM DIA. 92173 92173-0736 3 CN
TUBE,6X9X670/30,BLUE 92192A 92192-1734 1 CN
