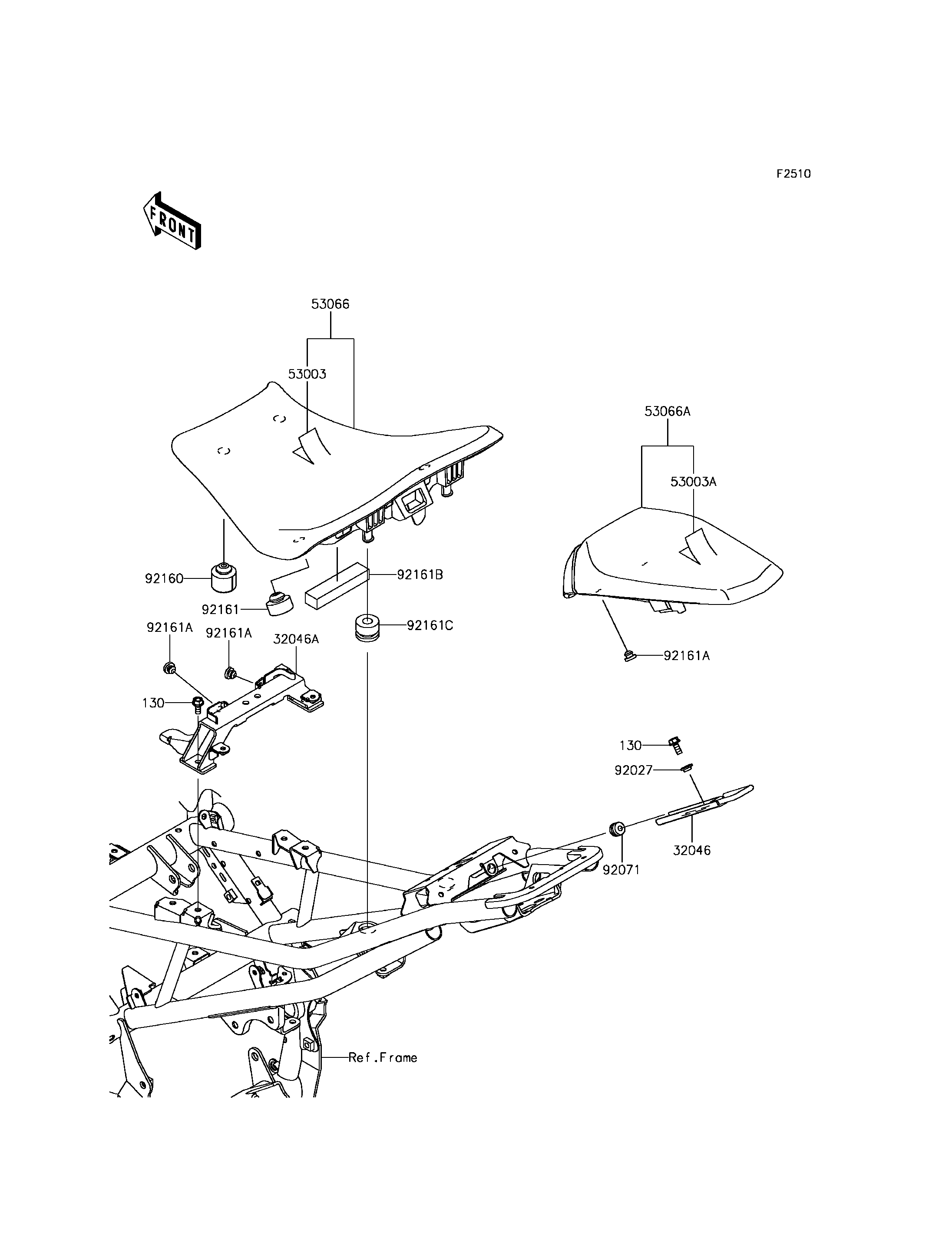

Parts Diagrams |
130
130
32046
32046A
53003
53003A
53066
53066A
92027
92071
92160
92161
92161A
92161A
92161A
92161B
92161C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130CA0614 | 3 | ||
| BRACKET-SEAT,FR LOCK | 32046 | 32046-0401 | 1 | ||
| BRACKET-SEAT,FR | 32046A | 32046-0418 | 1 | ||
| LEATHER,FR SEAT,BLACK | 53003 | 53003-0432-MA | 1 | ||
| LEATHER,RR SEAT,BLACK | 53003A | 53003-0433-MA | 1 | ||
| SEAT-ASSY,FR,BLACK | 53066 | 53066-0581-MA | 1 | ||
| SEAT-ASSY,RR,BLACK+BLK | 53066A | 53066-0582-12Y | 1 | ||
| COLLAR,L=4.6 | 92027 | 92027-1168 | 1 | ||
| GROMMET | 92071 | 92071-0038 | 1 | ||
| DAMPER | 92160 | 92160-1513 | 2 | ||
| DAMPER,RR SEAT | 92161 | 92161-0930 | 2 | ||
| DAMPER | 92161A | 92161-1084 | 4 | ||
| DAMPER,20X90X15 | 92161B | 92161-1867 | 1 | ||
| DAMPER,12X28X21 | 92161C | 92161-1913 | 2 |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SEAT,FR LOCK | |
| REF # | 32046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SEAT,FR | |
| REF # | 32046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEATHER,FR SEAT,BLACK | |
| REF # | 53003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEATHER,RR SEAT,BLACK | |
| REF # | 53003A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,FR,BLACK | |
| REF # | 53066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,RR,BLACK+BLK | |
| REF # | 53066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=4.6 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RR SEAT | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,20X90X15 | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,12X28X21 | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
