130
14093
14093A
23062
25023
25031
92009
92015
92152
92154
92160
92160A
92200

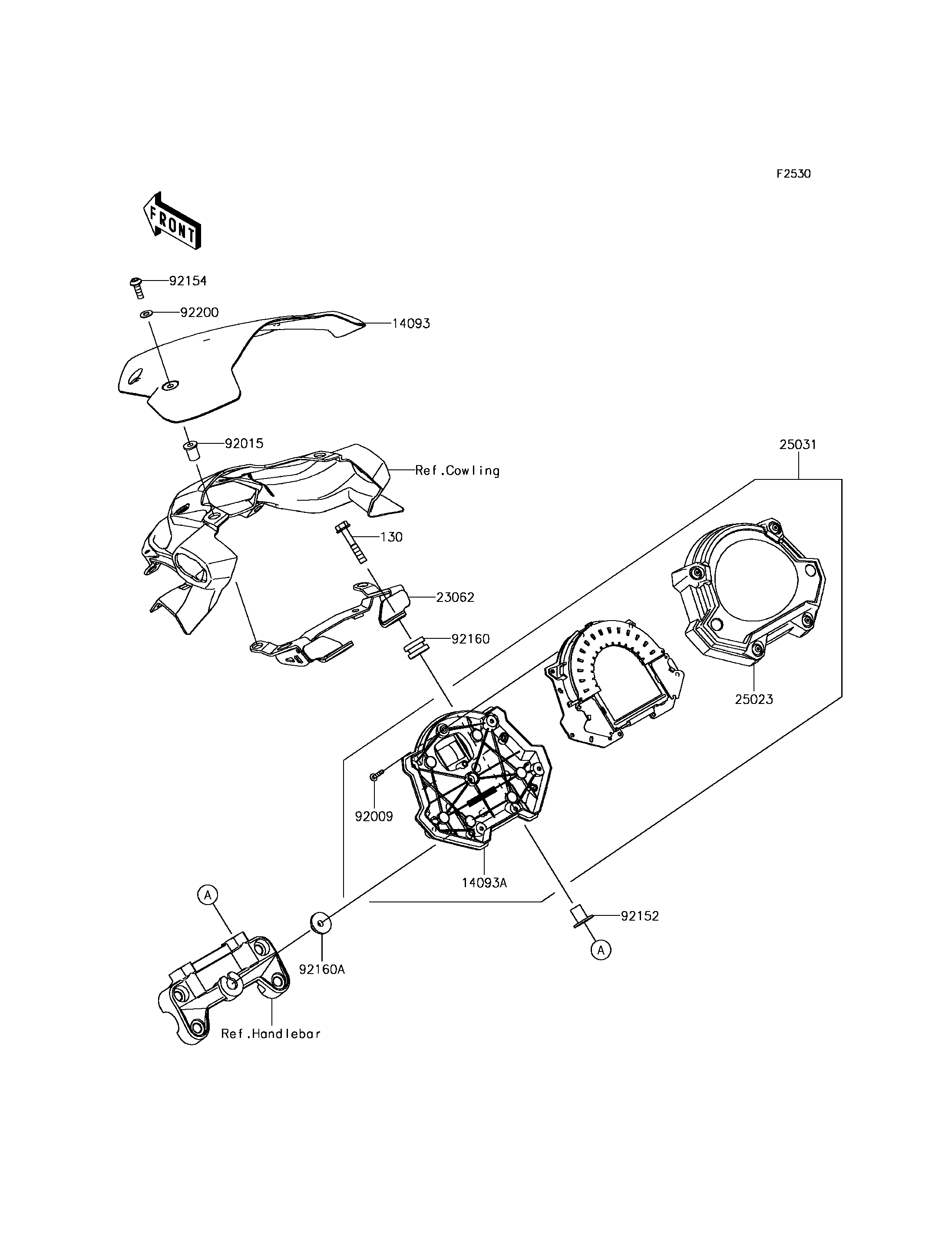

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X35 130 130BB0635 2
COVER,METER 14093 14093-0512 1
COVER,LWR CASE 14093A 14093-0526 1
BRACKET-COMP 23062 23062-0928 1
COVER-METER CASE 25023 25023-0128 1
METER-ASSY,COMBINATION,ABS 25031 25031-0731 1
SCREW,TAPPING,3X16 92009 92009-1391 8
NUT,WELL,5MM 92015 92015-1757 4
COLLAR 92152 92152-0604 2
BOLT,SOCKET,5X16 92154 92154-0026 4
DAMPER,10X20X12 92160 92160-1167 2
DAMPER 92160A 92160-1613 1
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 4
