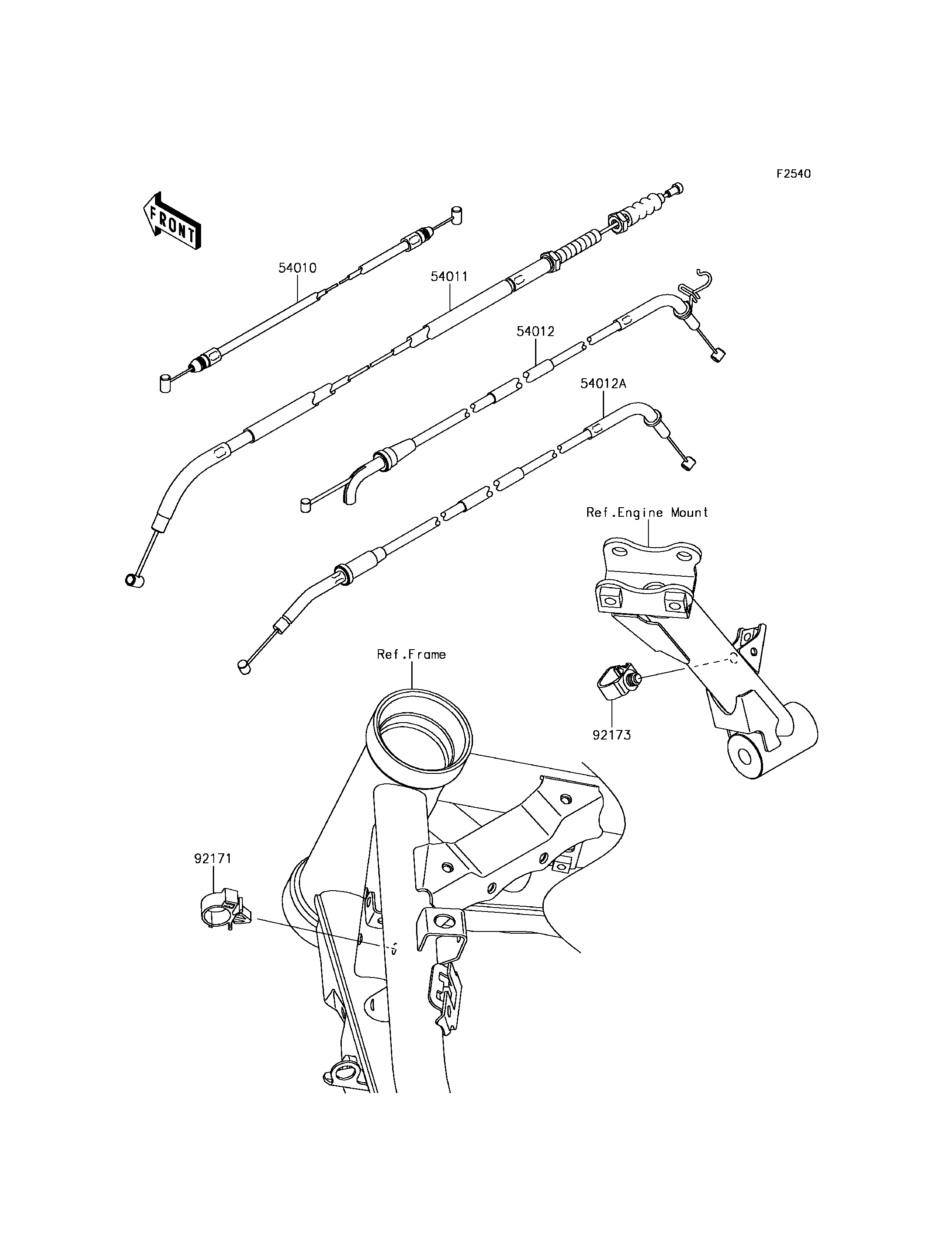

54010
54011
54012
54012A
92171
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SEAT LOCK 54010 54010-0614 1
CABLE-CLUTCH 54011 54011-0618 1
CABLE-THROTTLE 54012 54012-0646 1
CABLE-THROTTLE 54012A 54012-0647 1
CLAMP 92171 92171-0782 1
CLAMP,HOLDER CLIP 92173 92173-0868 1
