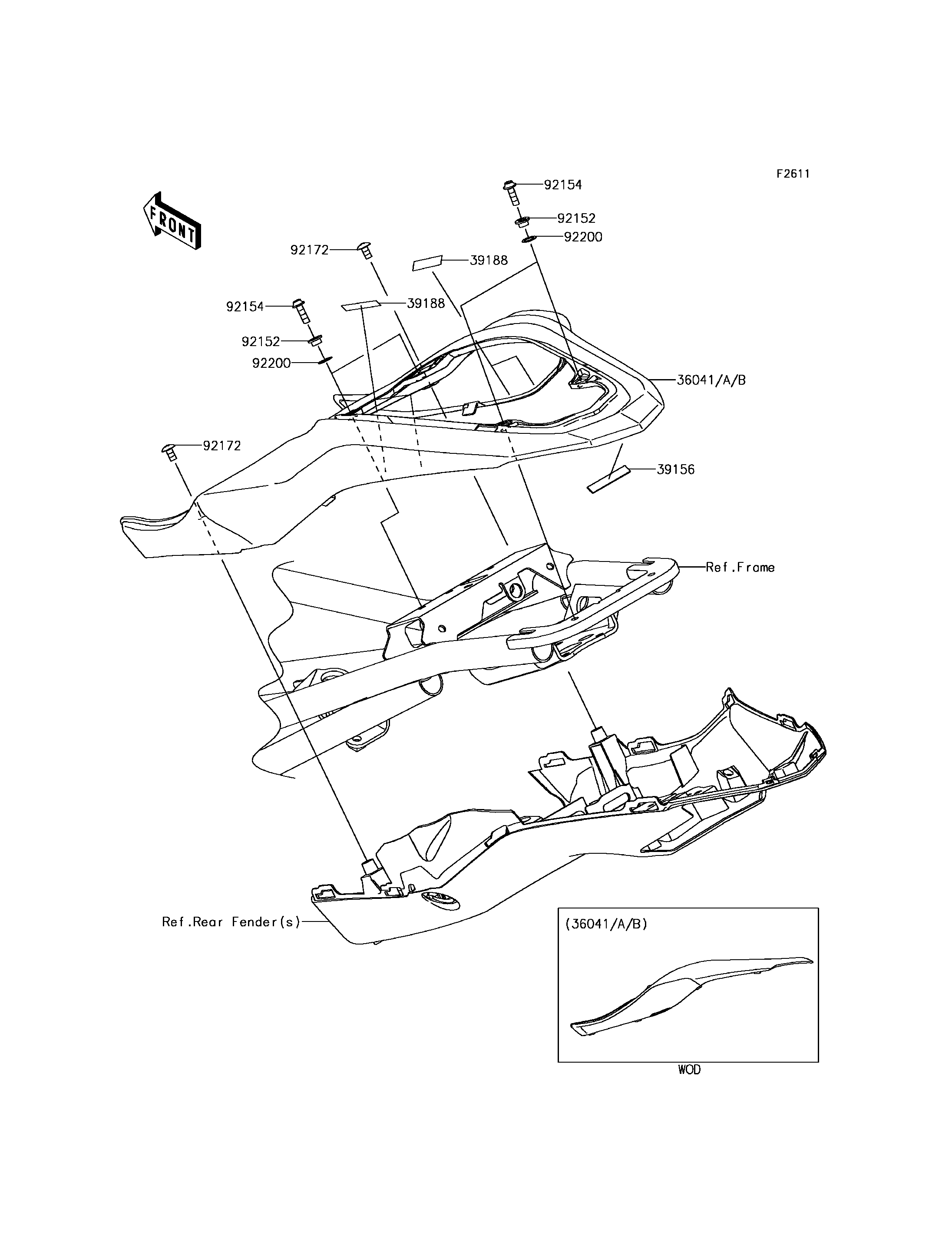

36041
36041B
39156
39188
39188
92152
92152
92154
92154
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-TAIL,P.M.GRAY 36041 36041-0030-36P 1
COVER-TAIL,M.S.BLACK 36041B 36041-0030-660 1
PAD,7X44X1 39156 39156-2181 1
TAPE,8X35 39188 39188-0564 4
COLLAR,5.6X8X5 92152 92152-2339 4
BOLT,SOCKET,5X16 92154 92154-0209 4
SCREW,5X10 92172 92172-1194 2
WASHER,8.2X12X0.5 92200 92200-1887 4
COVER-TAIL,C.L.GREEN 36041A 36041-0030-51P 1 CN
