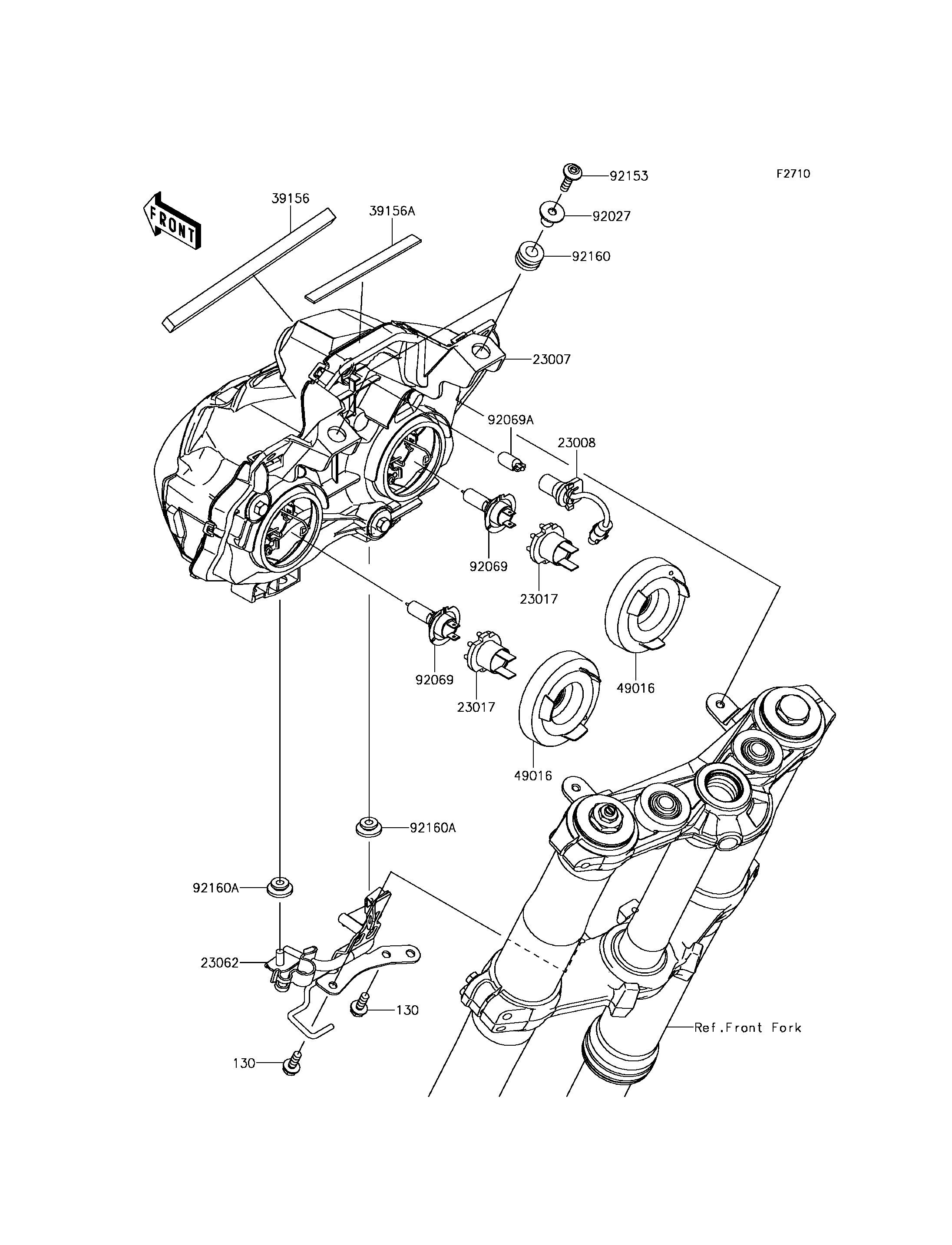

Parts Diagrams |
130
130
23007
23008
23017
23017
23062
39156
39156A
49016
49016
92027
92069
92069
92069A
92153
92160
92160A
92160A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130BB0616 | 2 | ||
| LENS-COMP | 23007 | 23007-0210 | 1 | ||
| SOCKET-ASSY | 23008 | 23008-0181 | 1 | ||
| SOCKET,HEAD LAMP | 23017 | 23017-1067 | 2 | ||
| BRACKET-COMP | 23062 | 23062-0958 | 1 | ||
| PAD,10X190X10 | 39156 | 39156-2156 | 1 | ||
| PAD,10X120X2 | 39156A | 39156-2196 | 1 | ||
| COVER-SEAL | 49016 | 49016-0642 | 2 | ||
| COLLAR,L=14.1 | 92027 | 92027-1920 | 2 | ||
| BULB,12V 55W,H7 | 92069 | 92069-0053 | 2 | ||
| BULB,12V 5W | 92069A | 92069-1016 | 1 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-0574 | 2 | ||
| DAMPER,10X20X12 | 92160 | 92160-1167 | 2 | ||
| DAMPER | 92160A | 92160-1613 | 2 |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LENS-COMP | |
| REF # | 23007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET,HEAD LAMP | |
| REF # | 23017 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-COMP | |
| REF # | 23062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,10X190X10 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,10X120X2 | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=14.1 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 55W,H7 | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 5W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X22 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X12 | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
