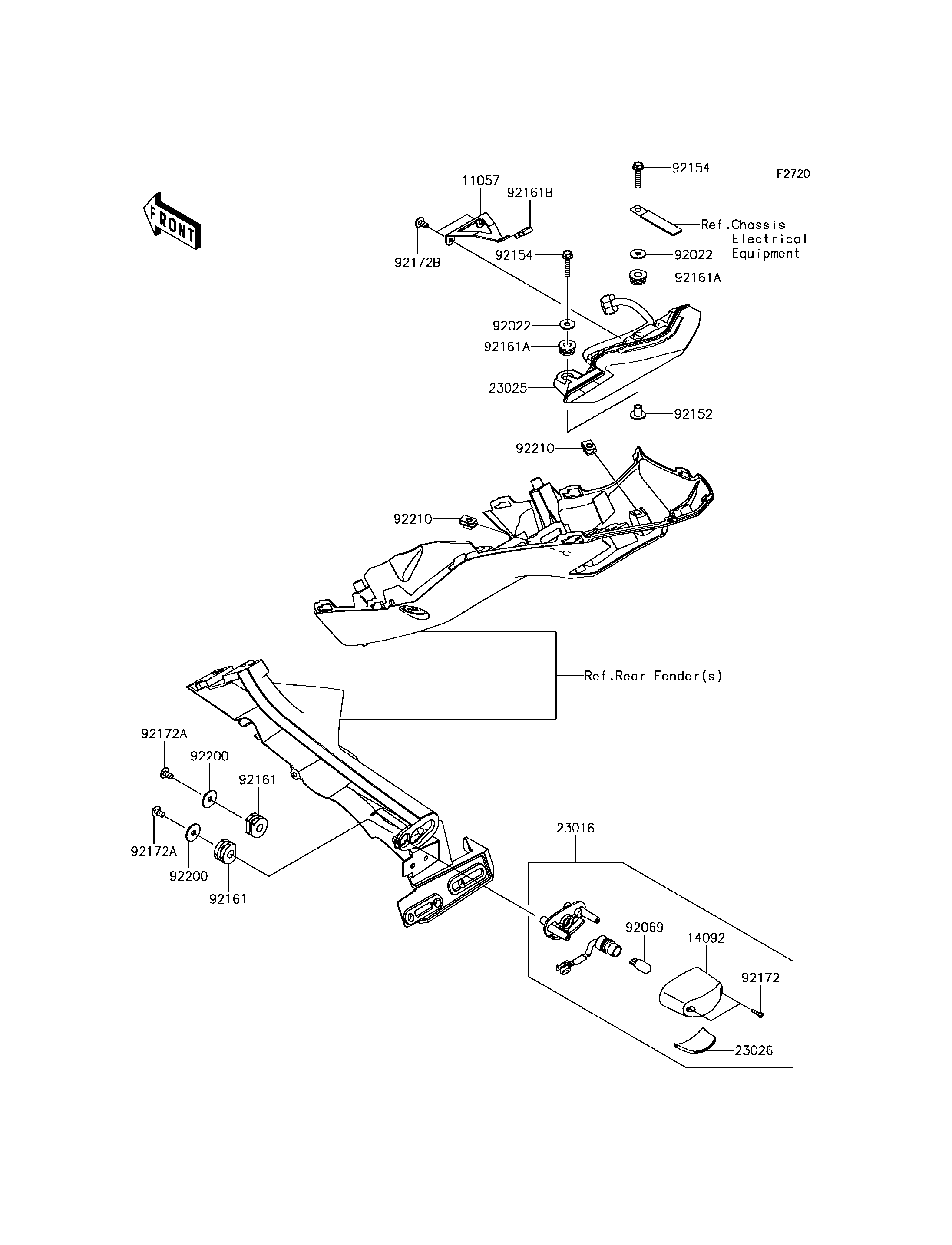

2017 Z900 ABS - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
14092
23016
23025
23026
92022
92022
92069
92152
92154
92154
92161
92161
92161A
92161A
92161B
92172
92172A
92172A
92172B
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TAIL LAMP 11057 11057-0247 1
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENSE 23016 23016-0561 1
LAMP-TAIL 23025 23025-0361 1
LENS,LICENCE LAMP 23026 23026-0023 1
WASHER,5.2X16X1.2 92022 92022-263 2
BULB,12V 5W 92069 92069-1016 1
COLLAR,5.6X8X11.2 92152 92152-1562 2
BOLT,FLANGED,5X25 92154 92154-2682 2
DAMPER 92161 92161-0776 2
DAMPER,8X18X8.1 92161A 92161-1369 2
DAMPER 92161B 92161-1917 1
SCREW,TAPPING,2.9X13 92172 92172-0343 2
SCREW,TAPPING,5X16 92172A 92172-0427 2
SCREW,5X10 92172B 92172-0864 2
WASHER,5.5X20X1.2 92200 92200-0284 2
NUT,PLATE,5MM 92210 92210-0935 2
