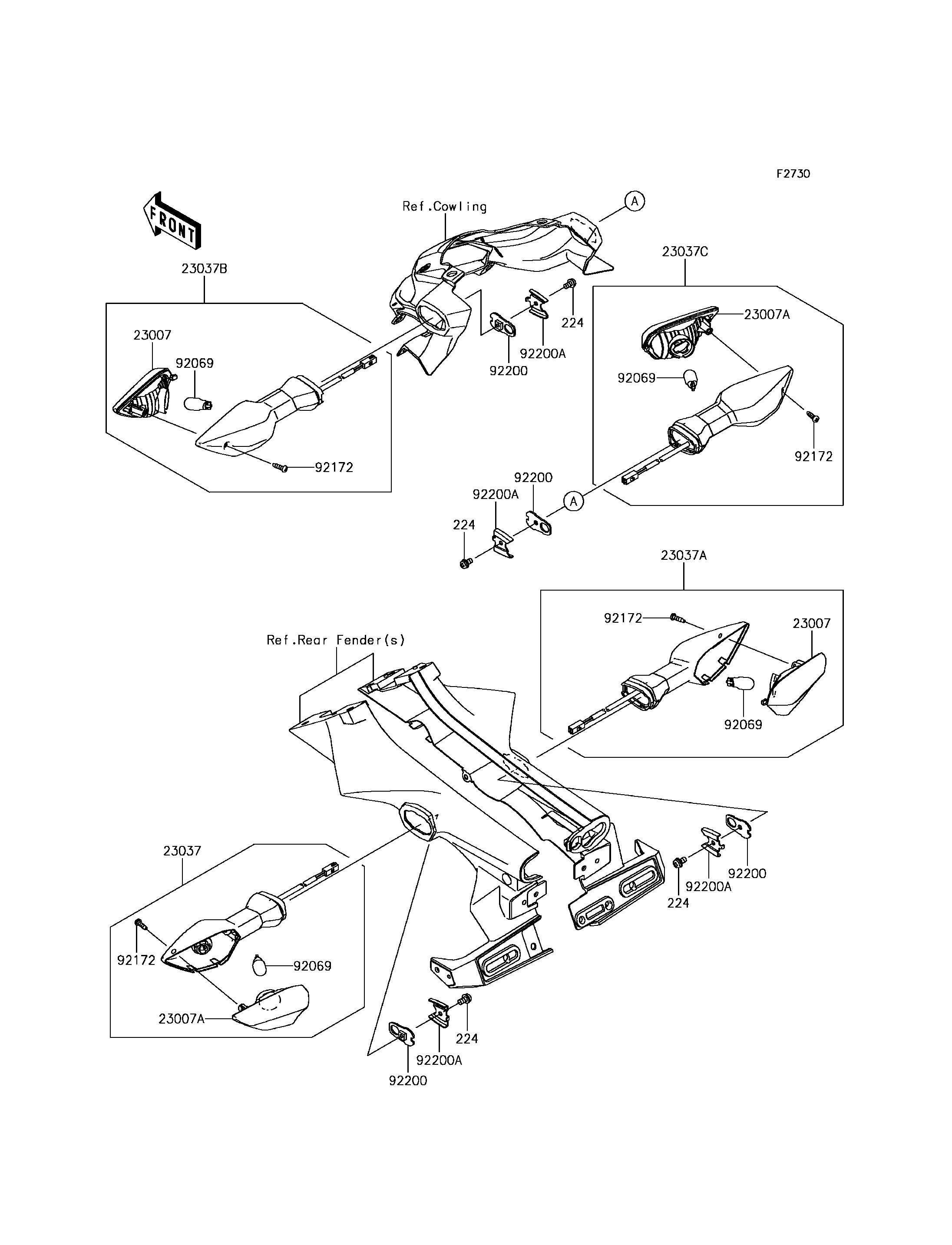

2017 Z900 ABS - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
224
224
224
224
23007
23007
23007A
23007A
23037
23037A
23037B
23037C
92069
92069
92069
92069
92172
92172
92172
92172
92200
92200
92200
92200
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS,4X8 224 224AB0408 4
LENS-COMP 23007 23007-0205 2
LENS-COMP 23007A 23007-0206 2
LAMP-ASSY-SIGNAL,RR,LH 23037 23037-0342 1
LAMP-ASSY-SIGNAL,RR,RH 23037A 23037-0343 1
LAMP-ASSY-SIGNAL,FR,LH 23037B 23037-0350 1
LAMP-ASSY-SIGNAL,FR,RH 23037C 23037-0351 1
BULB,12V 10W 92069 92069-0090 4
SCREW,4X14 92172 92172-1117 4
WASHER,NUT 4MM 92200 92200-0854 4
WASHER 92200A 92200-0855 4
