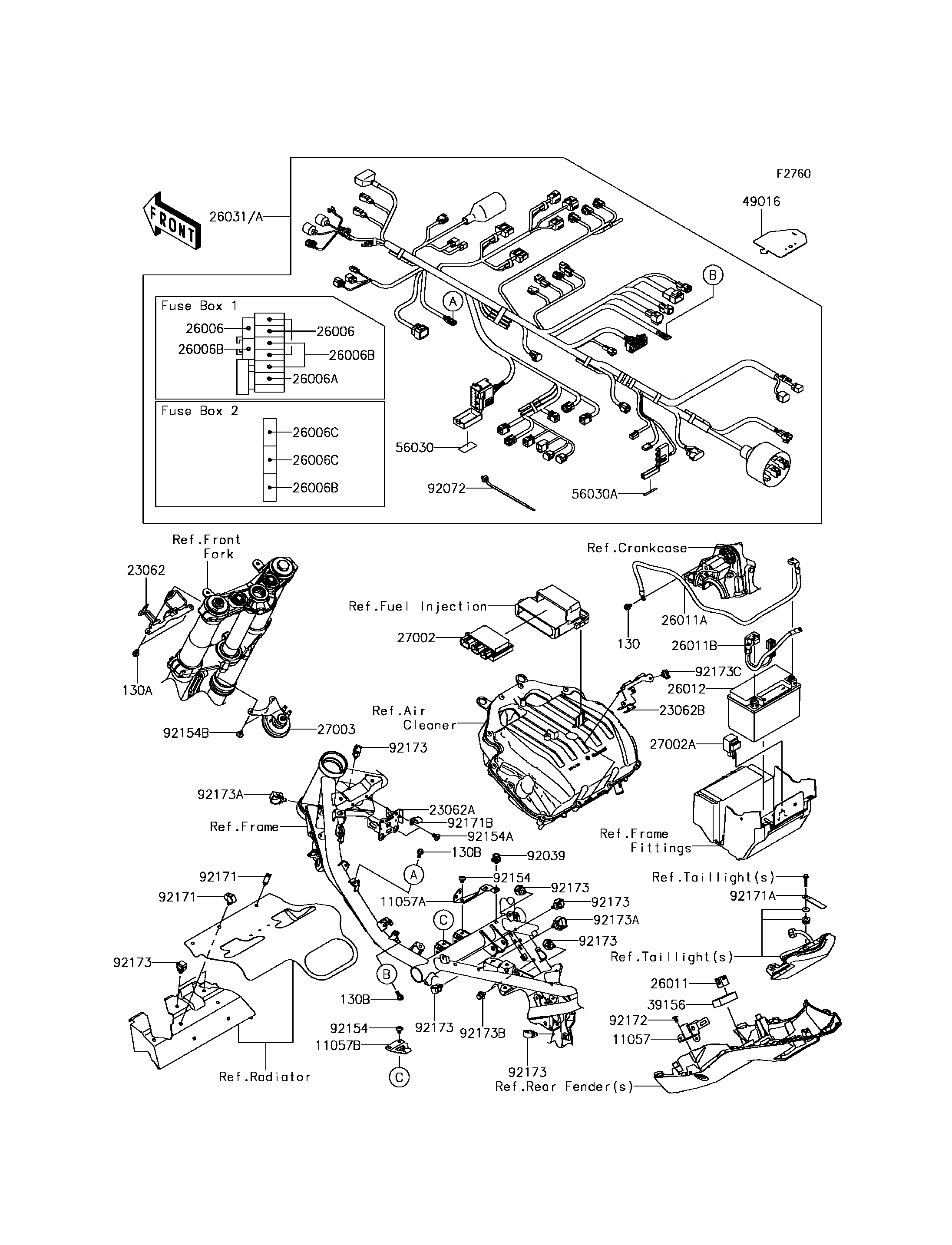

2017 Z900 ABS - Chassis Electrical Equipment
130
130
130A
130A
11057
11057
11057A
11057A
11057B
11057B
23062
23062
23062A
23062A
23062B
23062B
26006
26006
26006
26006
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006C
26006C
26006C
26006C
26011
26011
26011A
26011A
26011B
26011B
26012
26012
27002
27002
27002A
27002A
27003
27003
39156
39156
49016
49016
56030
56030
56030A
56030A
92039
92039
92072
92072
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92172
92172
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92173B
92173B
92173C
92173C
130B
130B
130B
130B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 1 | ||
| BOLT-FLANGED,6X12 | 130A | 130BA0612 | 2 | ||
| BRACKET,RELAY | 11057 | 11057-0316 | 1 | ||
| BRACKET,MAIN HARNESS | 11057A | 11057-0317 | 1 | ||
| BRACKET,CONNECTOR | 11057B | 11057-0563 | 1 | ||
| BRACKET-COMP,UPP HOLDER | 23062 | 23062-0893 | 1 | ||
| BRACKET-COMP,V.D. SENSOR | 23062A | 23062-0894 | 1 | ||
| BRACKET-COMP,A/C BOX | 23062B | 23062-0930 | 1 | ||
| FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 4 | ||
| FUSE,MINI BLADE,2A,GRAY | 26006A | 26006-0052 | 1 | ||
| FUSE,MINI BLADE,7.5A,BROWN | 26006B | 26006-0055 | 4 | ||
| FUSE,MINI BLADE,30A,GREEN | 26006C | 26006-1080 | 2 | ||
| WIRE-LEAD,CONNECTOR COVER | 26011 | 26011-0275 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-0947 | 1 | ||
| WIRE-LEAD,BATTERY(+) | 26011B | 26011-0948 | 1 | ||
| BATTERY,FTX9-BS,12V 8AH | 26012 | 26012-0608 | 1 | ||
| RELAY-ASSY,BOX | 27002 | 27002-0025 | 1 | ||
| RELAY-ASSY,SIGNAL LAMP | 27002A | 27002-1097 | 1 | ||
| HORN | 27003 | 27003-0121 | 1 | ||
| PAD,32X52X15 | 39156 | 39156-2146 | 1 | ||
| COVER-SEAL | 49016 | 49016-0645 | 1 | ||
| LABEL,FUSE BOX1 | 56030 | 56030-0992 | 1 | ||
| LABEL,FUSE BOX2 | 56030A | 56030-0993 | 1 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 1 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | 18 | ||
| BOLT,SOCKET,6X10 | 92154 | 92154-0774 | 2 | ||
| BOLT,SOCKET,6X12 | 92154A | 92154-2355 | 2 | ||
| BOLT,SOCKET,6X10 | 92154B | 92154-2667 | 2 | ||
| CLAMP,BRAKE HOSE | 92171 | 92171-0316 | 2 | ||
| CLAMP,L=60 | 92171A | 92171-0652 | 1 | ||
| CLAMP | 92171B | 92171-0926 | 1 | ||
| SCREW,5X10 | 92172 | 92172-0864 | 2 | ||
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 8 | ||
| CLAMP | 92173A | 92173-0861 | 2 | ||
| CLAMP,CABLE CLIP | 92173B | 92173-1022 | 1 | ||
| CLAMP,CLIP,TAIL LAMP,ETC | 92173C | 92173-1429 | 1 | ||
| BOLT-FLANGED,6X16 | 130B | 130BA0616 | 2 | ||
| HARNESS,MAIN | 26031 | 26031-2289 | 1 | CN | |
| HARNESS,MAIN | 26031A | 26031-2290 | 1 | CA |
