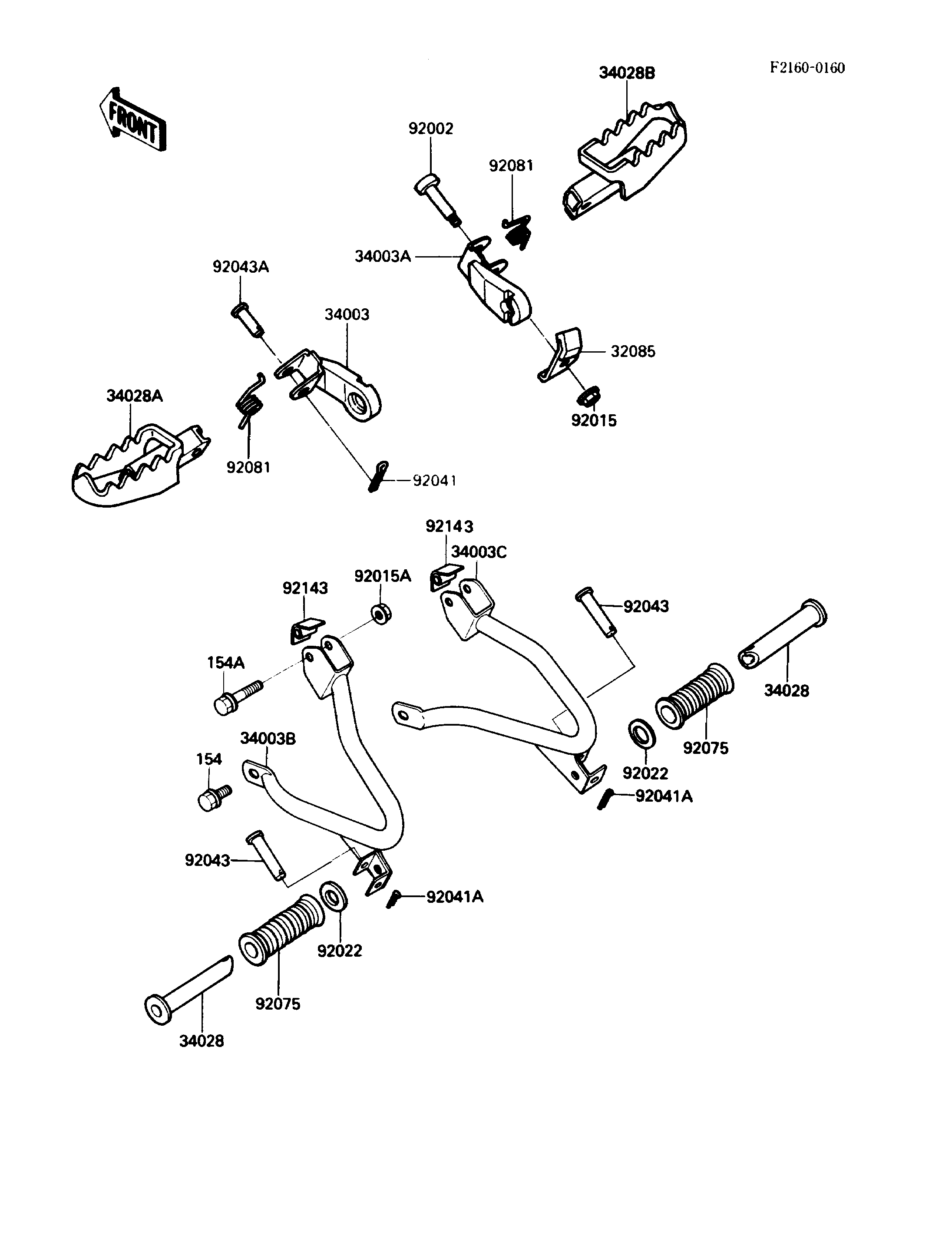

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
STOPPER,KICK PEDAL | 32085 | 32085-1178 | 1 | ||
HOLDER-STEP,FR,LH | 34003 | 34003-1218 | 1 | ||
HOLDER-STEP,FR,RH | 34003A | 34003-1219 | 1 | ||
HOLDER-STEP,RR,LH | 34003B | 34003-1288 | 1 | ||
HOLDER-STEP,RR,RH | 34003C | 34003-1289 | 1 | ||
STEP,RR | 34028 | 34028-009 | 2 | ||
STEP,FR,LH | 34028A | 34028-1154 | 1 | ||
STEP,FR,RH | 34028B | 34028-1155 | 1 | ||
BOLT,6MM | 92002 | 92002-1193 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
NUT,FLANGED,8MM | 92015A | 92015-1406 | 2 | ||
WASHER,20X30X2.3 | 92022 | 92022-1568 | 2 | ||
COTTER,2.5X15 | 92041 | 92041-1051 | 1 | ||
COTTER,2.0X15 | 92041A | 92041-1052 | 2 | ||
PIN,6X28 | 92043 | 92043-079 | 2 | ||
PIN,8X31 | 92043A | 92043-080 | 1 | ||
DAMPER | 92075 | 92076-020 | 2 | ||
SPRING,STEP | 92081 | 92081-1133 | 2 | ||
COLLAR,STEP HOLDER | 92143 | 92143-1080 | 2 | ||
BOLT-WP-SMALL,8X18 | 154 | 154N0818 | 2 | ||
BOLT-WP-SMALL,8X40 | 154A | 154N0840 | 2 |
STOPPER,KICK PEDAL | |
REF # | 32085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-STEP,FR,LH | |
REF # | 34003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-STEP,FR,RH | |
REF # | 34003A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-STEP,RR,LH | |
REF # | 34003B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-STEP,RR,RH | |
REF # | 34003C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP,RR | |
REF # | 34028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STEP,FR,LH | |
REF # | 34028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP,FR,RH | |
REF # | 34028B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6MM | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,20X30X2.3 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COTTER,2.5X15 | |
REF # | 92041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COTTER,2.0X15 | |
REF # | 92041A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,6X28 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,8X31 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,STEP | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,STEP HOLDER | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-WP-SMALL,8X18 | |
REF # | 154 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-WP-SMALL,8X40 | |
REF # | 154A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
