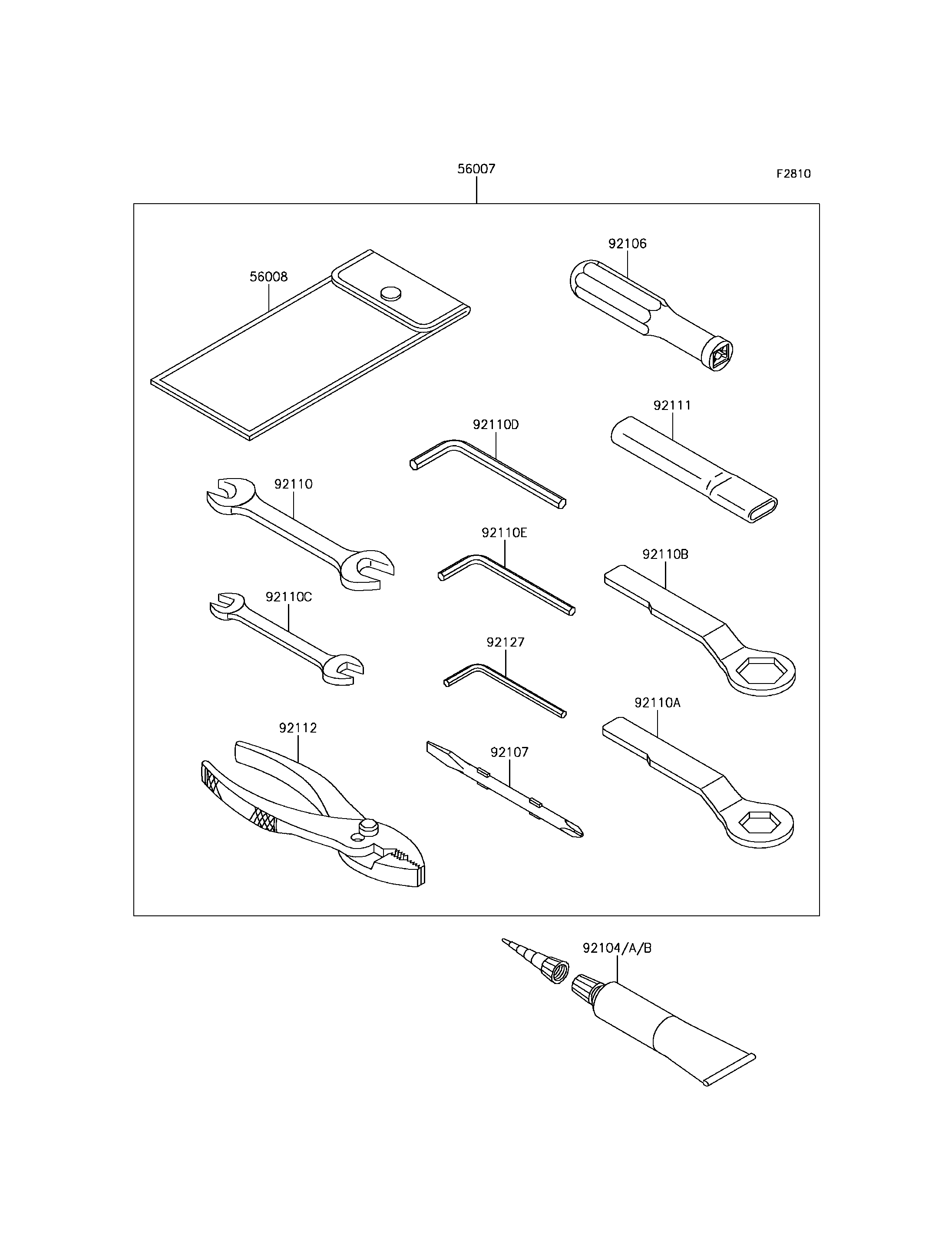

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
56007
56008
92104
92104A
92104B
92106
92107
92110
92110A
92110B
92110C
92110D
92110E
92111
92112
92127
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TOOL-KIT | 56007 | 56007-0108 | 1 | ||
| BAG,TOOL | 56008 | 56008-0036 | 1 | ||
| GASKET-LIQUID,TB1211F,CLEAR | 92104 | 92104-0004 | 1 | ||
| GASKET-LIQUID,TB1216B,BLACK | 92104A | 92104-1064 | 1 | ||
| GASKET-LIQUID,TB1207B,BLACK | 92104B | 92104-2068 | 1 | ||
| GRIP-SCREW DRIVER | 92106 | 92106-0004 | 1 | ||
| TOOL-DRIVER,#2PHILLIPS&SLOT | 92107 | 92107-0019 | 1 | ||
| TOOL-WRENCH,OPEN END,14X17 | 92110 | 92110-0057 | 1 | ||
| TOOL-WRENCH,BOX END,22MM | 92110A | 92110-0064 | 1 | ||
| TOOL-WRENCH,BOX END,27MM | 92110B | 92110-0065 | 1 | ||
| TOOL-WRENCH,OPEN END,10X12 | 92110C | 92110-0564 | 1 | ||
| TOOL-WRENCH,ALLEN,4MM | 92110D | 92110-0567 | 1 | ||
| TOOL-WRENCH,ALLEN,5MM | 92110E | 92110-1015 | 1 | ||
| TOOL-BAR,WRENCH | 92111 | 92111-0008 | 1 | ||
| TOOL-PLIERS | 92112 | 92112-0007 | 1 | ||
| TOOL-WRENCH,ALLEN,6MM | 92127 | 92127-003 | 1 |
