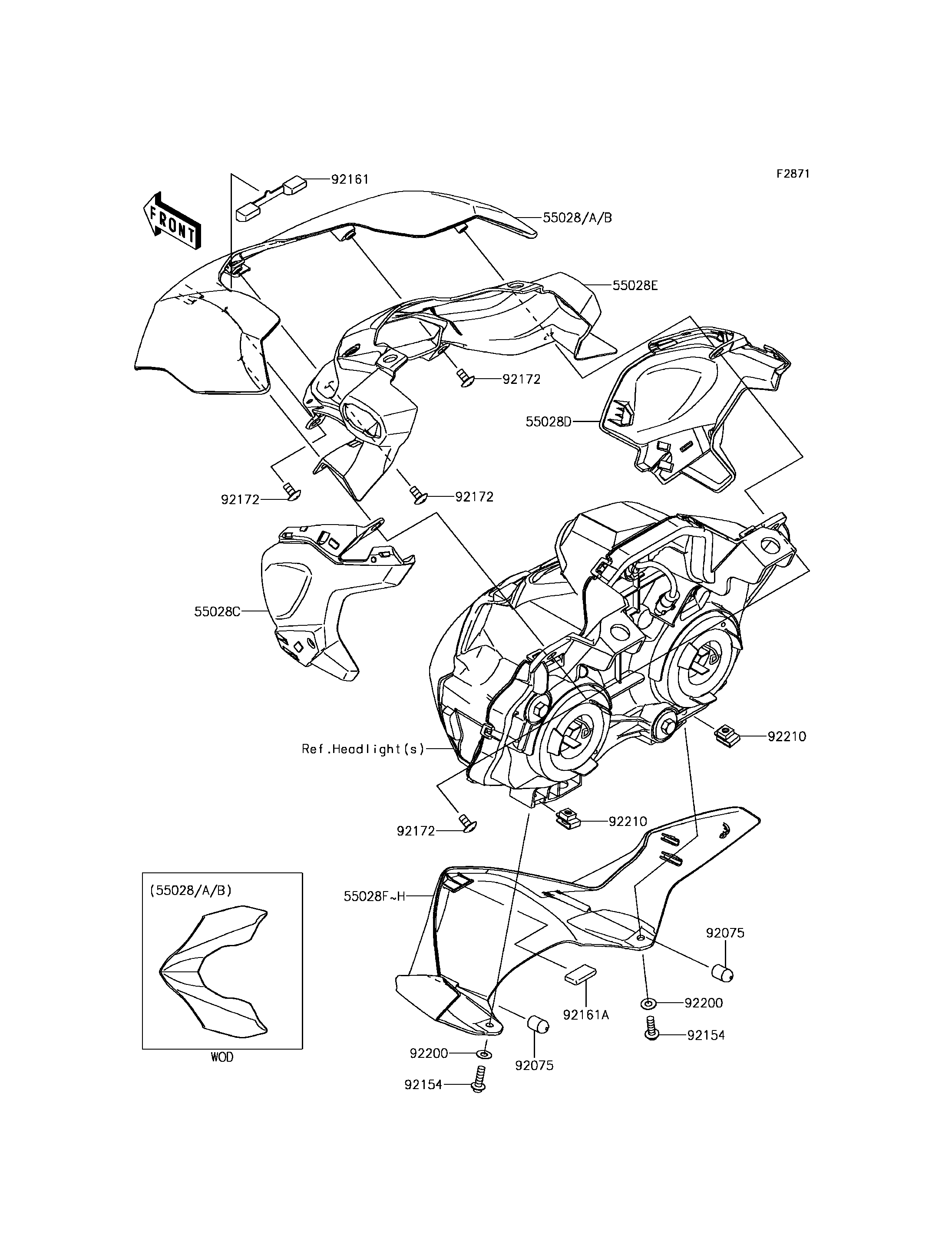

2017 Z900 ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
55028
55028B
55028C
55028D
55028E
55028F
55028H
92075
92075
92154
92154
92161
92161A
92172
92172
92172
92172
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COWLING,UPP,P.M.GRAY 55028 55028-0604-36P 1
COWLING,UPP,M.S.BLACK 55028B 55028-0604-660 1
COWLING,SIDE,LH 55028C 55028-0605 1
COWLING,SIDE,RH 55028D 55028-0606 1
COWLING,SIGNAL 55028E 55028-0608 1
COWLING,LWR,P.M.GRAY 55028F 55028-0635-36P 1
COWLING,LWR,M.S.BLACK 55028H 55028-0635-660 1
DAMPER 92075 92075-1964 2
BOLT,SOCKET,5X16 92154 92154-0209 2
DAMPER 92161 92161-0885 1
DAMPER,12X23 92161A 92161-1367 1
SCREW,5X10 92172 92172-0864 5
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
NUT,PLATE,5MM 92210 92210-0935 2
COWLING,UPP,C.L.GREEN 55028A 55028-0604-51P 1 CN
COWLING,LWR,C.L.GREEN 55028G 55028-0635-51P 1 CN
