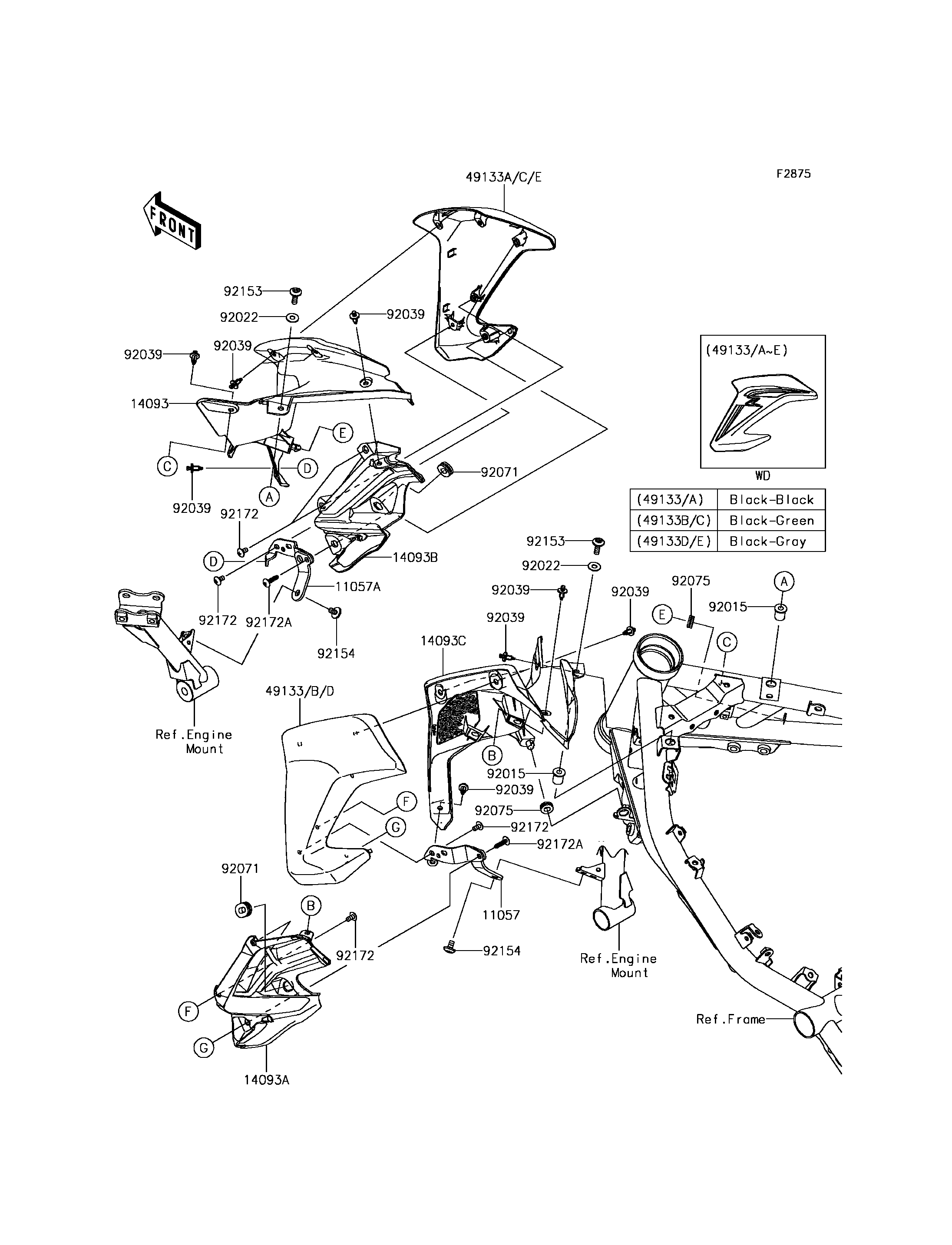

2017 Z900 ABS - Shroud

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
14093
14093A
14093B
14093C
49133
49133A
49133D
49133E
92015
92015
92022
92022
92039
92039
92039
92039
92039
92039
92039
92039
92071
92071
92075
92075
92153
92153
92154
92154
92172
92172
92172
92172
92172A
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHROUD,LH 11057 11057-0254 1
BRACKET,SHROUD,RH 11057A 11057-0255 1
COVER,INNER,RH,FR 14093 14093-0506 1
COVER,INNER,LH,RR 14093A 14093-0507 1
COVER,INNER,RH,RR 14093B 14093-0508 1
COVER,INNER,LH,FR 14093C 14093-0638 1
SHROUD,LH,M.S.BLACK 49133 49133-5269-660 1
SHROUD,RH,M.S.BLACK 49133A 49133-5270-660 1
SHROUD,LH,M.S.BLACK 49133D 49133-5273-660 1
SHROUD,RH,M.S.BLACK 49133E 49133-5274-660 1
NUT 92015 92015-1700 2
WASHER,6.5X16X1.0 92022 92022-1654 2
RIVET 92039 92039-0068 10
GROMMET,11X23X7 92071 92071-0762 2
DAMPER 92075 92075-161 2
BOLT,6X18 92153 92153-0816 2
BOLT,SOCKET,6X10 92154 92154-2667 2
SCREW,5X10 92172 92172-0864 6
SCREW,TAPPING,5X20 92172A 92172-1159 2
SHROUD,LH,M.S.BLACK 49133B 49133-5271-660 1 CN
SHROUD,RH,M.S.BLACK 49133C 49133-5272-660 1 CN
