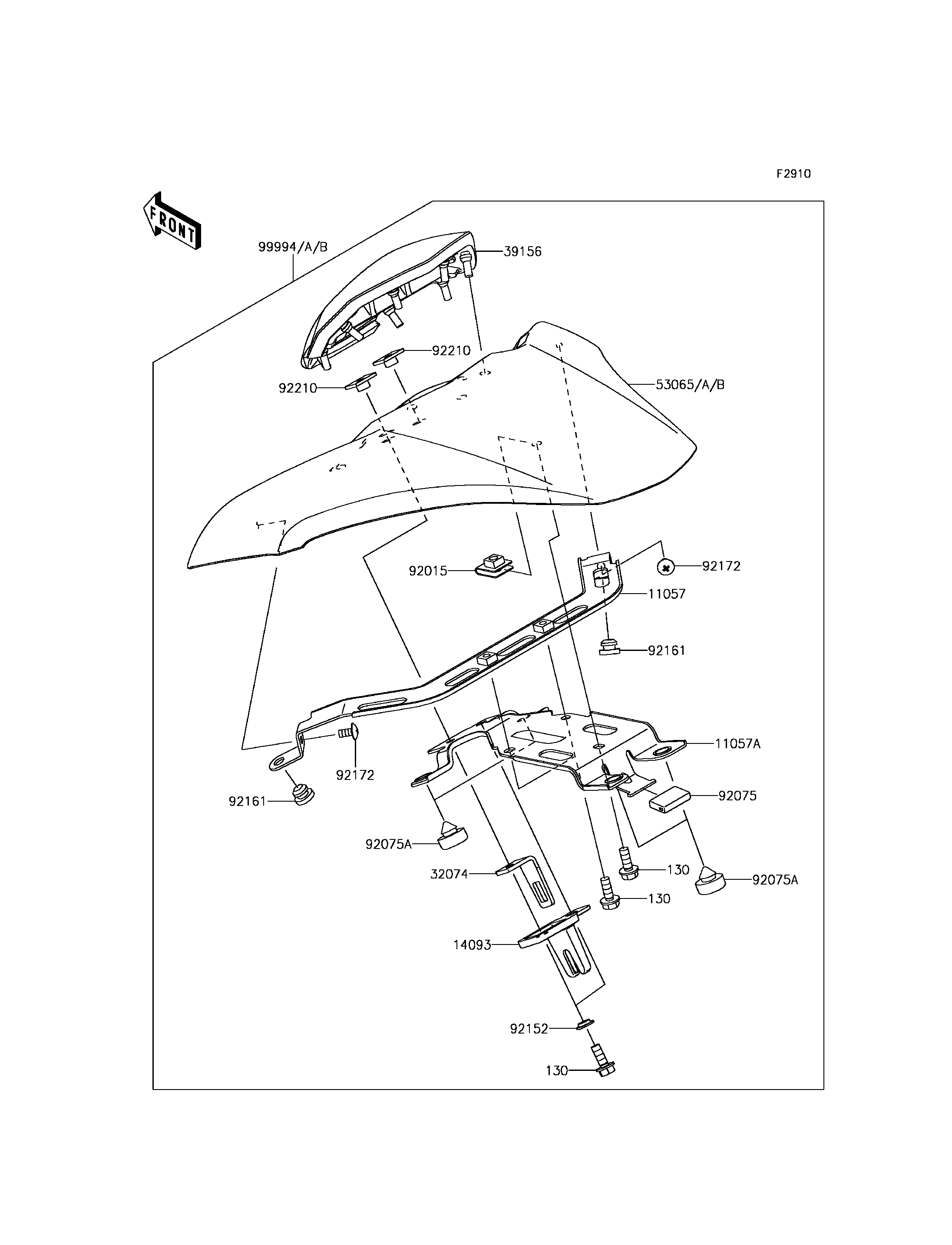

2017 Z900 ABS - Accessory(Single Seat Cover)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
11057
11057A
14093
32074
39156
53065
53065B
92015
92075
92075A
92075A
92152
92161
92161
92172
92172
92210
92210
99994
99994B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BB0616 5
BRACKET 11057 11057-0269 1
BRACKET,MOUNT 11057A 11057-0270 1
COVER 14093 14093-0515 1
BRACKET-LOCK 32074 32074-0017 1
PAD 39156 39156-2122 1
COVER SEAT,P.M.GRAY 53065 53065-0040-36P 1
COVER SEAT,M.S.BLACK 53065B 53065-0040-660 1
NUT,CLAMP,6MM 92015 92015-1531 1
DAMPER 92075 92075-1446 1
DAMPER,10X20X8 92075A 92075-1927 4
COLLAR 92152 92152-0250 2
DAMPER 92161 92161-1084 2
SCREW,5X10 92172 92172-0864 2
NUT,PLATE,6MM 92210 92210-1352 2
KIT,SINGLE SEAT COVER,P.M.GRAY 99994 99994-0835-36P 1
KIT,SINGLE SEAT COVER,M.S.BLK 99994B 99994-0835-660 1
COVER SEAT,C.L.GREEN 53065A 53065-0040-51P 1 CN
KIT,SINGLE SEAT COVER,C.L.GRN 99994A 99994-0835-51P 1 CN
