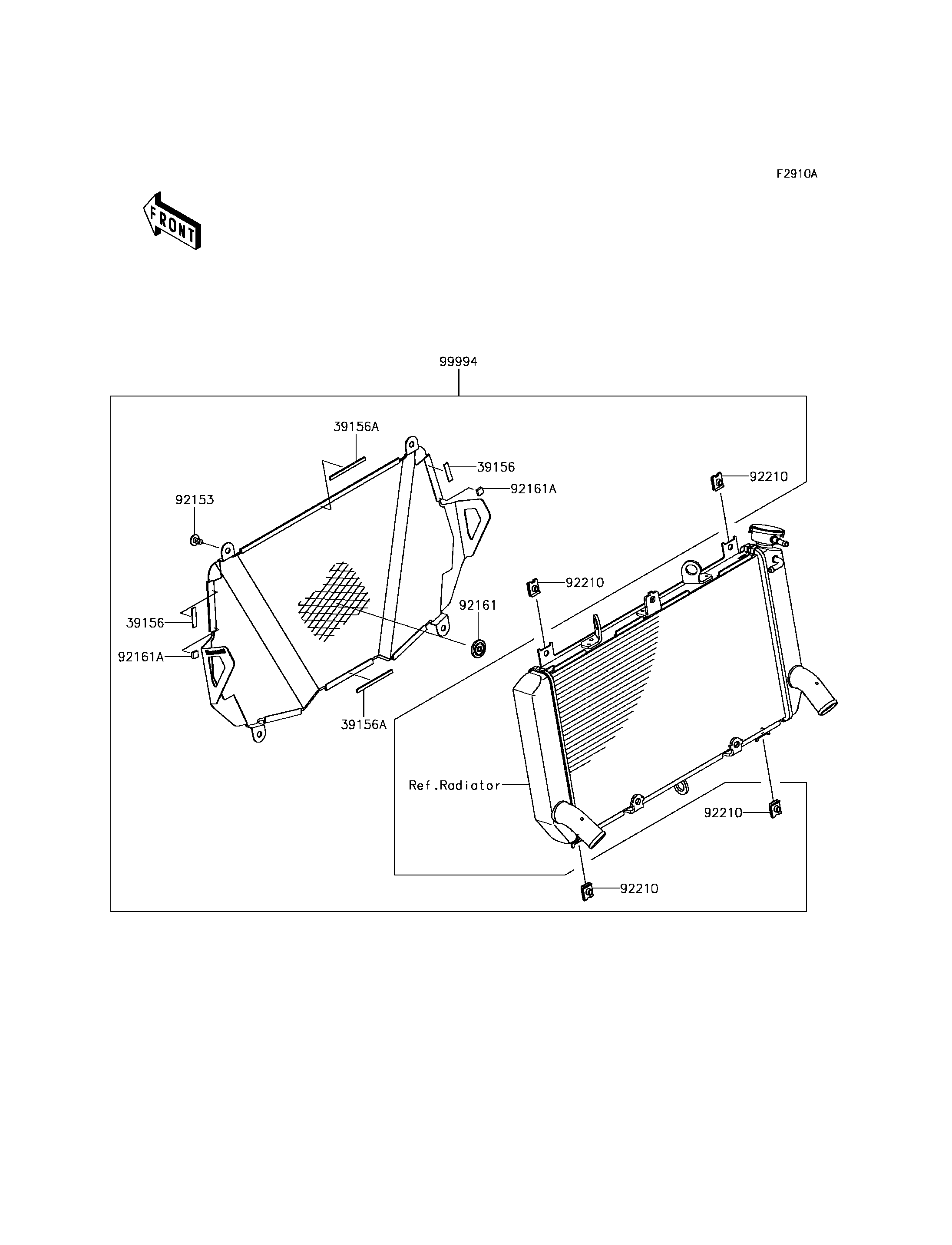

39156
39156
39156A
39156A
92153
92161
92161A
92161A
92210
92210
92210
92210
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD,6X25X1 39156 39156-2167 2
PAD,4X60X2 39156A 39156-2189 2
BOLT,SOCKET,6X10 92153 92153-1527 4
DAMPER,8X22X10 92161 92161-1685 1
DAMPER 92161A 92161-1976 2
NUT 92210 92210-1518 4
KIT-ACCESSORY,SE RAD. SCREEN 99994 99994-0871 1
