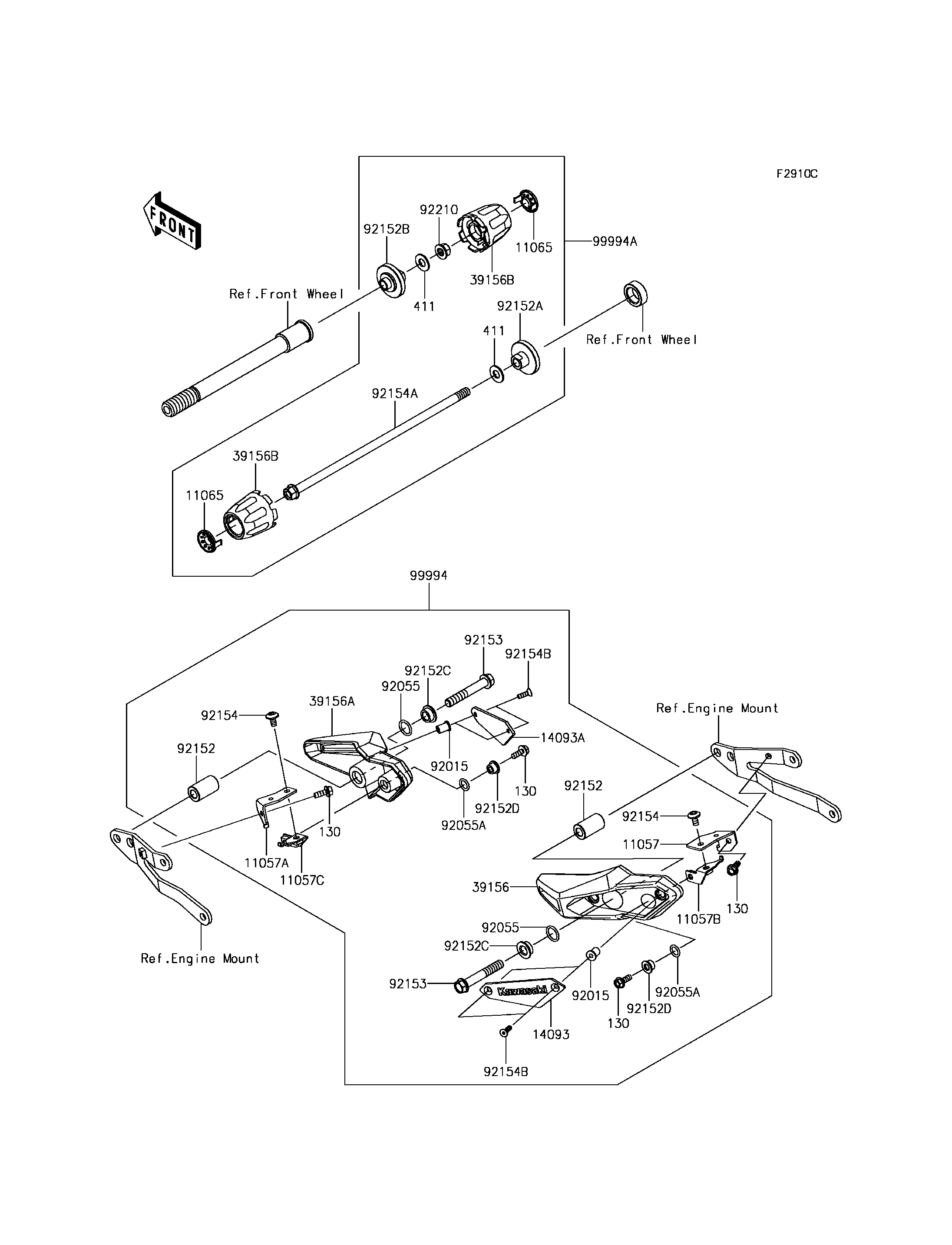

2017 Z900 ABS - Accessory(Slider)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
411
411
11057
11057A
11057B
11057C
11065
11065
14093
14093A
39156
39156A
39156B
39156B
92015
92015
92055
92055
92055A
92055A
92152
92152
92152A
92152B
92152C
92152C
92152D
92152D
92153
92153
92154
92154
92154A
92154B
92154B
92210
99994
99994A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130CB0616 4
WASHER-PLAIN,10MM 411 411AA1000 2
BRACKET,LH 11057 11057-0313 1
BRACKET,RH 11057A 11057-0314 1
BRACKET,LH 11057B 11057-0778 1
BRACKET,RH 11057C 11057-0779 1
CAP,B.SILVER 11065 11065-0960-54N 2
COVER,LH 14093 14093-0516 1
COVER,RH 14093A 14093-0517 1
PAD,LH 39156 39156-2123 1
PAD,RH 39156A 39156-2124 1
PAD,AXLE SLIDER 39156B 39156-2212 2
NUT,WELL,5MM 92015 92015-1757 4
RING-O,15.8X2.4 92055 92055-0884 2
RING-O,11X2.4 92055A 92055-0885 2
COLLAR,10.5X20X34 92152 92152-2268 2
COLLAR,LH 92152A 92152-2272 1
COLLAR,RH 92152B 92152-2273 1
COLLAR,10.5X22X8.1 92152C 92152-2334 2
COLLAR,6.5X16X8.1 92152D 92152-2335 2
BOLT,FLANGED,10X65 92153 92153-1931 2
BOLT,SOCKET,6X12 92154 92154-1788 2
BOLT,AXLE,10X300 92154A 92154-2250 1
BOLT,SOCKET,5X16 92154B 92154-2669 4
NUT,LOCK,FLANGED,10MM 92210 92210-1139 1
KIT-ACCESSORY,SHROUD SLIDER 99994 99994-0836 1
KIT-ACCESSORY,FR AXLE SLIDER 99994A 99994-0837 1
