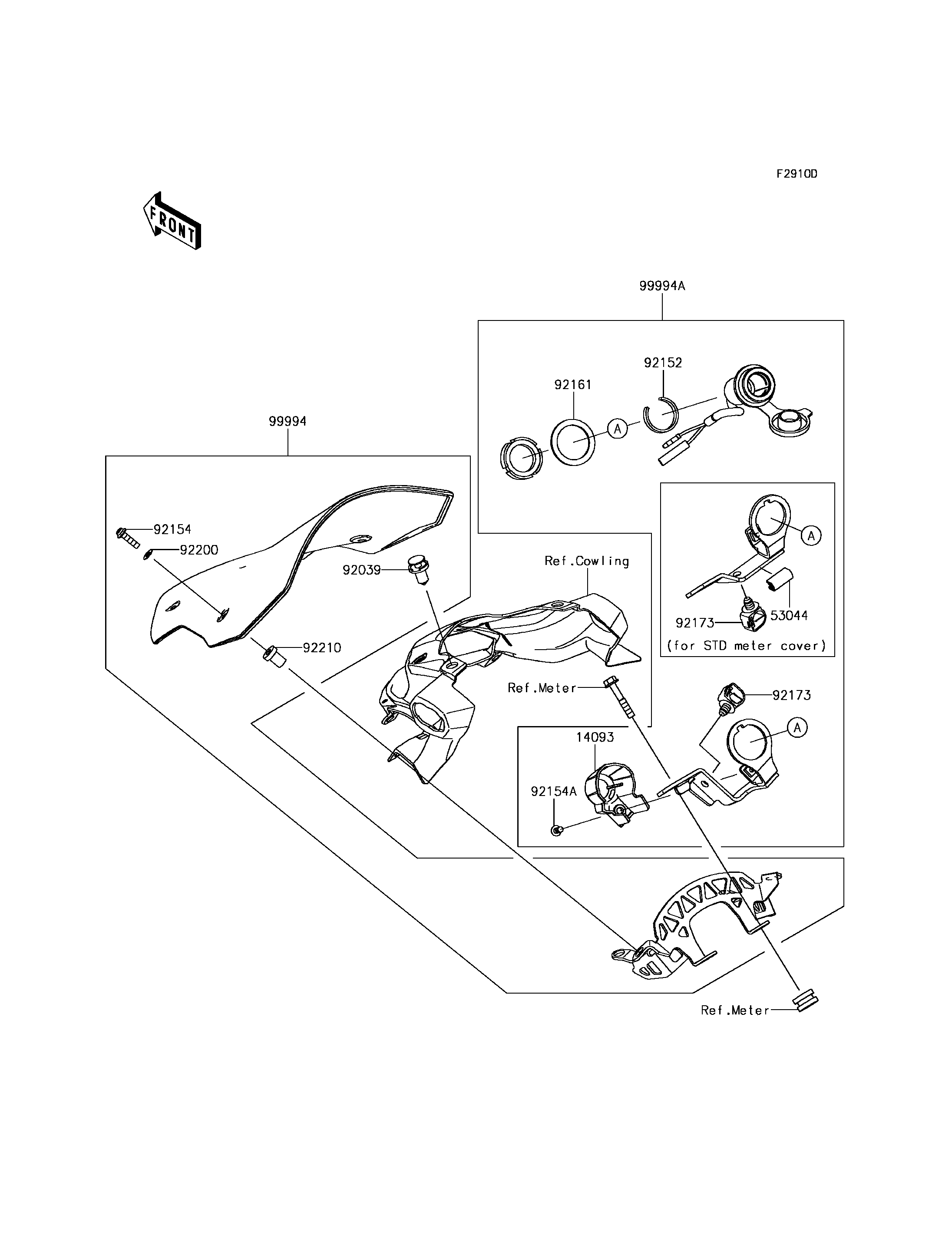

14093
53044
92039
92152
92154
92154A
92161
92173
92173
92200
92210
99994
99994A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SOCKET 14093 14093-0212 1
TRIM,L=22 53044 53044-0031 1
RIVET 92039 92039-0098 2
COLLAR 92152 92152-2135 1
BOLT,SOCKET,5X20 92154 92154-0210 4
BOLT,SOCKET,5X12 92154A 92154-0917 1
DAMPER 92161 92161-1789 1
CLAMP,12MM DIA. 92173 92173-0736 1
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 4
NUT,5MM 92210 92210-0001 4
KIT-ACCESSORY,LARGE METER COV 99994 99994-0834 1
KIT-ACCESSORY,12V POWER SOCKET 99994A 99994-0838 1
