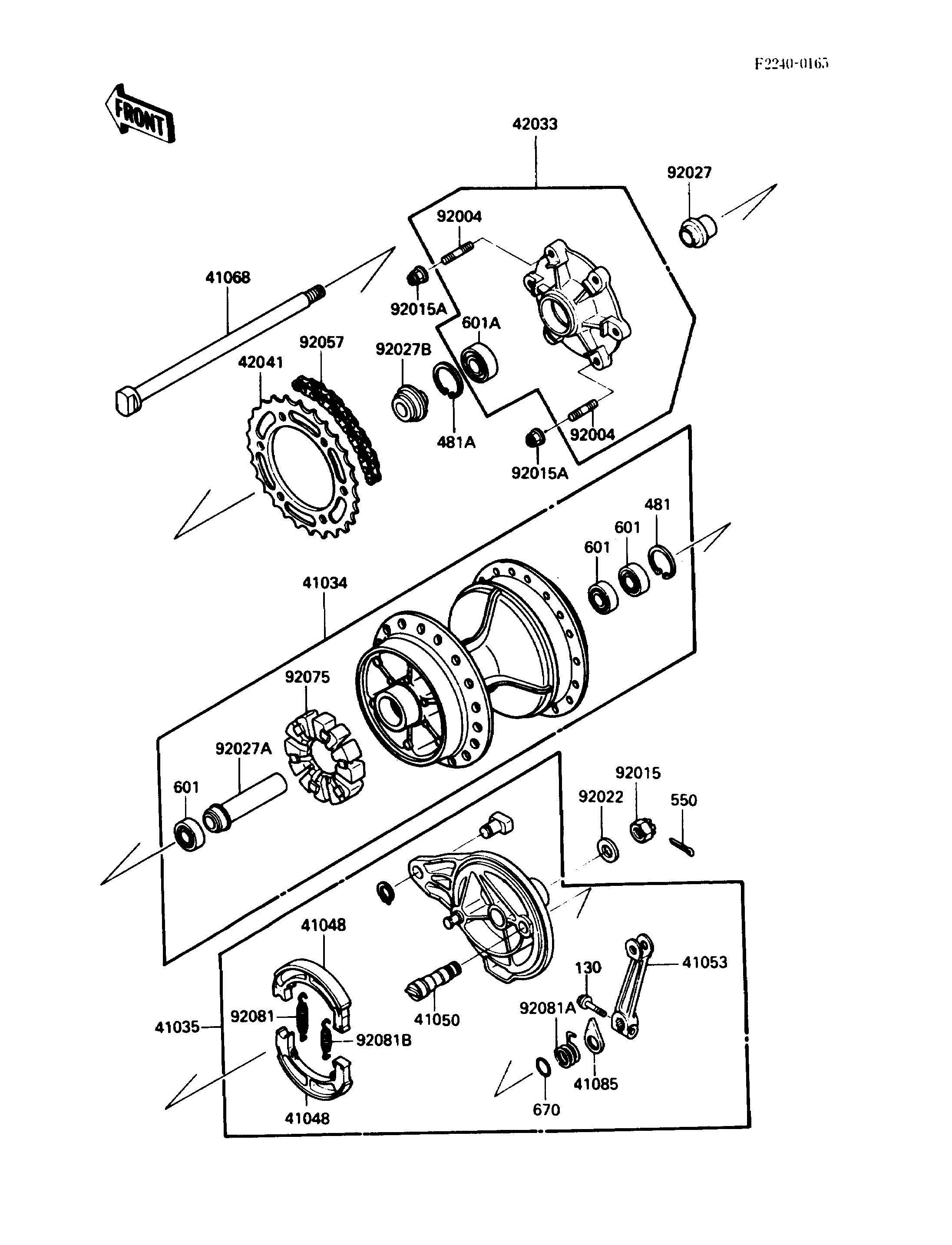

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,REAR BRAKE | 41034 | 41034-1113 | 1 | ||
| PANEL-ASSY-BRAKE,RR | 41035 | 41035-1173 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1056 | 2 | ||
| CAM-BRAKE | 41050 | 41050-1058 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 41053-1061 | 1 | ||
| AXLE,RR | 41068 | 41068-1178 | 1 | ||
| INDICATOR | 41085 | 41085-005 | 1 | ||
| COUPLING-ASSY,REAR HUB | 42033 | 42033-1111 | 1 | ||
| SPROCKET-HUB,44T | 42041 | 42041-1191 | 1 | ||
| STUD,8X18 | 92004 | 92004-1149 | 6 | ||
| NUT,CASTLE,16MM | 92015 | 42045-014 | 1 | ||
| NUT,LOCK,8MM | 92015A | 92015-1506 | 6 | ||
| WASHER,17.3X32X3.2 | 92022 | 42046-009 | 1 | ||
| COLLAR,REAR HUB COUPLING,L=23 | 92027 | 92027-1770 | 1 | ||
| COLLAR,REAR BRAKE DRUM,L=78 | 92027A | 92027-1823 | 1 | ||
| COLLAR,REAR HUB COUPLING,L=13 | 92027B | 92027-1826 | 1 | ||
| CHAIN,DRIVE,EK520L-OX104L(E) | 92057 | 92057-1181 | 1 | ||
| DAMPER,SHOCK,RR HUB | 92075 | 92075-1068 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 92081-1550 | 1 | ||
| SPRING,BRAKE CAM LEVER RETURN | 92081A | 92081-1615 | 1 | ||
| SPRING,BRAKE SHOE | 92081B | 92081-1766 | 1 | ||
| BOLT-FLANGED,6X25 | 130 | 130G0625 | 1 | ||
| CIRCLIP-TYPE-C,35MM | 481 | 481J3500 | 1 | ||
| CIRCLIP-TYPE-C,42MM | 481A | 481J4200 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
| BEARING-BALL,#6003UG | 601 | 601B6003UG | 3 | ||
| BEARING-BALL,#6004UG | 601A | 601B6004UG | 1 | ||
| O RING,15MM | 670 | 670B2015 | 1 |
