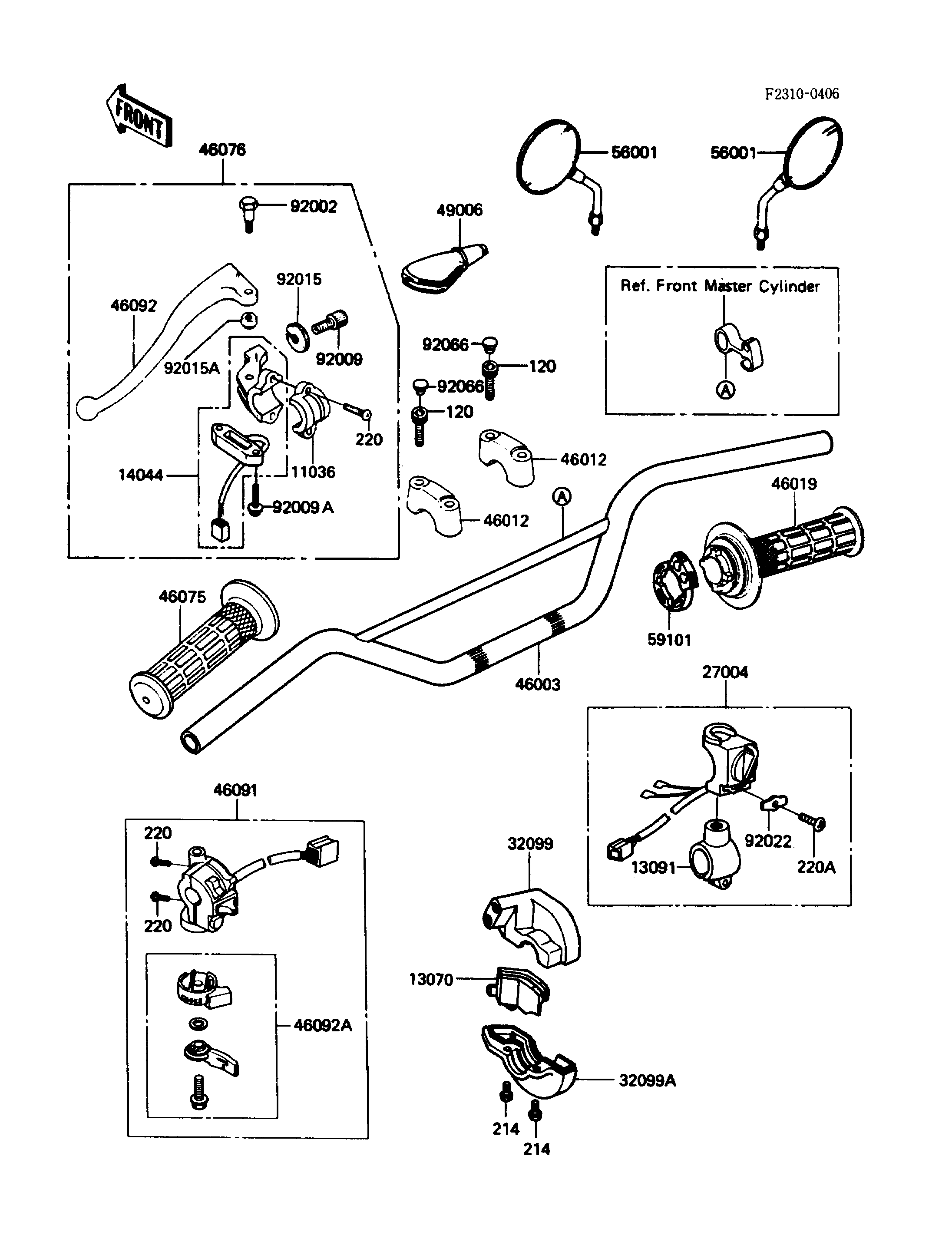

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET-A,LEVER HOLDER | 11036 | 11036-1297 | 1 | ||
GUIDE,THROTTLE PEACE | 13070 | 13070-1131 | 1 | ||
HOLDER,ENGINE STOP SWITCH | 13091 | 13091-1255 | 1 | ||
HOLDER-CABLE,CLUTCH | 14044 | 14044-1052 | 1 | ||
SWITCH-ASSY,ENGINE STOP | 27004 | 27004-1056 | 1 | ||
CASE,THROTTLE,UPP | 32099 | 32099-1072 | 1 | ||
CASE,THROTTLE,LWR | 32099A | 32099-1073 | 1 | ||
HANDLE | 46003 | 46003-1174 | 1 | ||
HOLDER-HANDLE | 46012 | 46012-1102 | 2 | ||
GRIP-ASSY,THROTTLE | 46019 | 46019-1054 | 1 | ||
GRIP,LH | 46075 | 46075-1051 | 1 | ||
LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1129 | 1 | ||
HOUSING-ASSY-CONTROL,LH | 46091 | 46091-1309 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1111 | 1 | ||
LEVER-GRIP,CHOKE | 46092A | 46092-1123 | 1 | ||
BOOT,LEVER HOLDER | 49006 | 49006-1099 | 1 | ||
MIRROR-ASSY | 56001 | 56001-1204 | 2 | ||
REEL,THROTTLE | 59101 | 59101-1106 | 1 | ||
BOLT,LEVER SET | 92002 | 92002-1475 | 1 | ||
SCREW,CABLE ADJUST,8MM | 92009 | 46055-009 | 1 | ||
SCREW,TAPPING | 92009A | 92009-1336 | 2 | ||
NUT,CABLE ADJUST | 92015 | 46056-006 | 1 | ||
NUT,LOCK,6MM,BLACK | 92015A | 92015-1191 | 1 | ||
WASHER,ENGINE STOP SWITCH | 92022 | 92022-1474 | 1 | ||
PLUG | 92066 | 92066-1216 | 4 | ||
BOLT-SOCKET,8X30,BLACK | 120 | 120S0830 | 4 | ||
SCREW-PAN+- | 214 | 214C0518 | 2 | ||
SCREW-PAN-CROS | 220 | 220C0514 | 4 | ||
SCREW-PAN-CROS,6X20,BLACK | 220A | 220C0620 | 1 |
