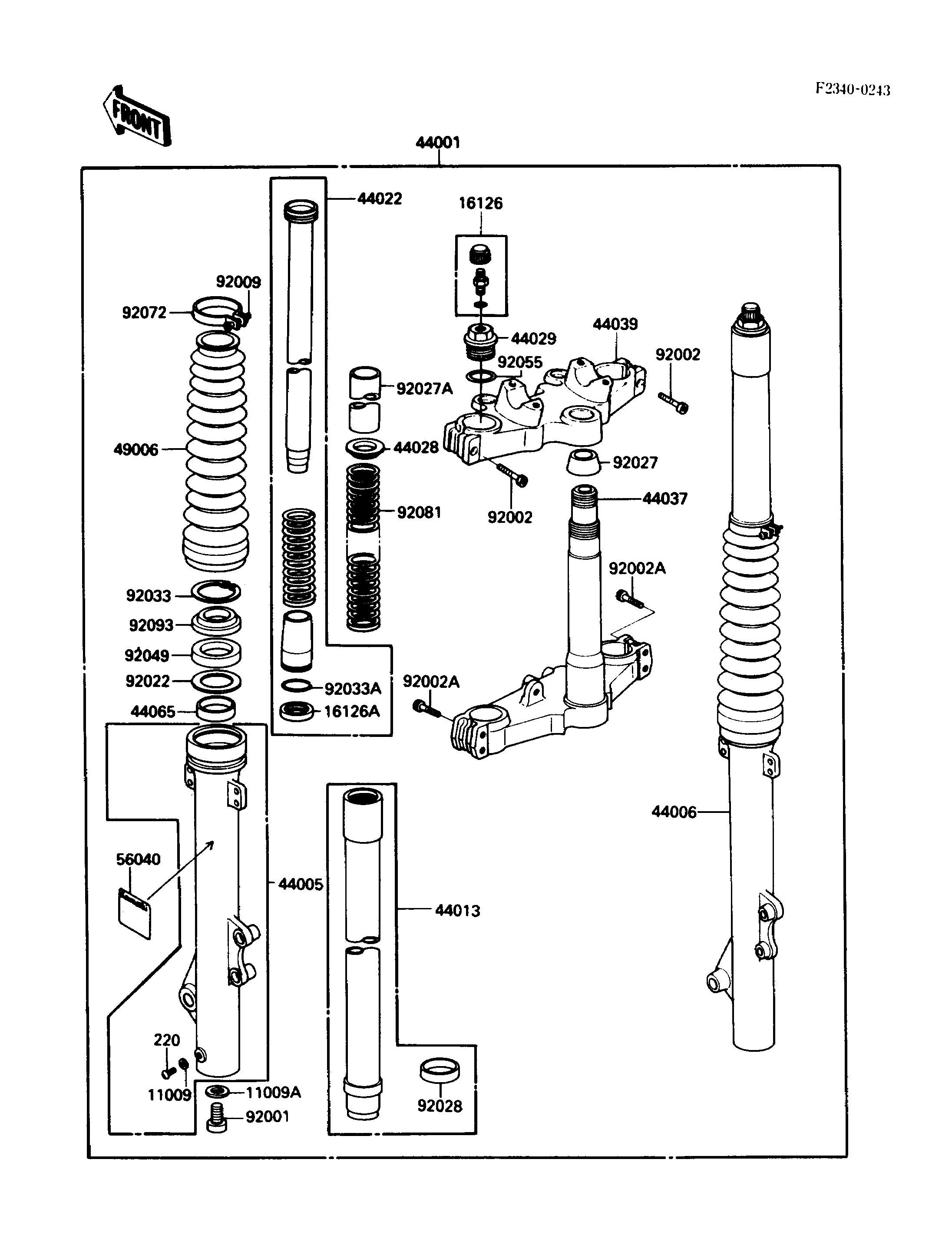

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FORK DRAIN PLUG | 11009 | 44045-002 | 2 | ||
GASKET | 11009A | 44045-057 | 2 | ||
VALVE,AIR | 16126 | 16126-1052 | 2 | ||
VALVE,FORK CYLINDER | 16126A | 16126-1123 | 2 | ||
FORK-FRONT,BLUE | 44001 | 44001-1552-BC | 1 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1226 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1226 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1224 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1175 | 2 | ||
GUIDE-FORK SPRING | 44028 | 44028-1004 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-1119 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1178 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1121 | 1 | ||
BUSHING-FRONT FORK | 44065 | 44065-1016 | 2 | ||
BOOT,FORK,BLUE | 49006 | 49006-1009-BC | 2 | ||
LABEL-WARNING,FRONT FORK | 56040 | 56040-1120 | 1 | ||
BOLT,SOCKET,FORK CYLINDER | 92001 | 44041-040 | 2 | ||
BOLT,SOCKET,8X32 | 92002 | 92002-1277 | 2 | ||
BOLT,FLANGED,8X40 | 92002A | 92002-1476 | 4 | ||
SCREW,4X16 | 92009 | 92009-1348 | 2 | ||
WASHER,FRONT FORK | 92022 | 92022-1275 | 2 | ||
COLLAR,UPPER BRACKET | 92027 | 92027-1791 | 1 | ||
COLLAR,L=165 | 92027A | 92027-1872 | 2 | ||
BUSHING,INNER PIPE | 92028 | 92028-1354 | 2 | ||
RING-SNAP | 92033 | 44044-015 | 2 | ||
RING-SNAP,FORK CYLINDER | 92033A | 92033-1004 | 2 | ||
SEAL-OIL,FORK OUTER PIPE | 92049 | 92049-1216 | 2 | ||
RING-O,FORK TOP CAP | 92055 | 92055-1051 | 2 | ||
BAND,BOOT | 92072 | 92072-1008 | 2 | ||
SPRING,FRONT FORK | 92081 | 92081-1825 | 2 | ||
SEAL,FORK OUTER PIPE | 92093 | 92093-1181 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0408 | 2 |
