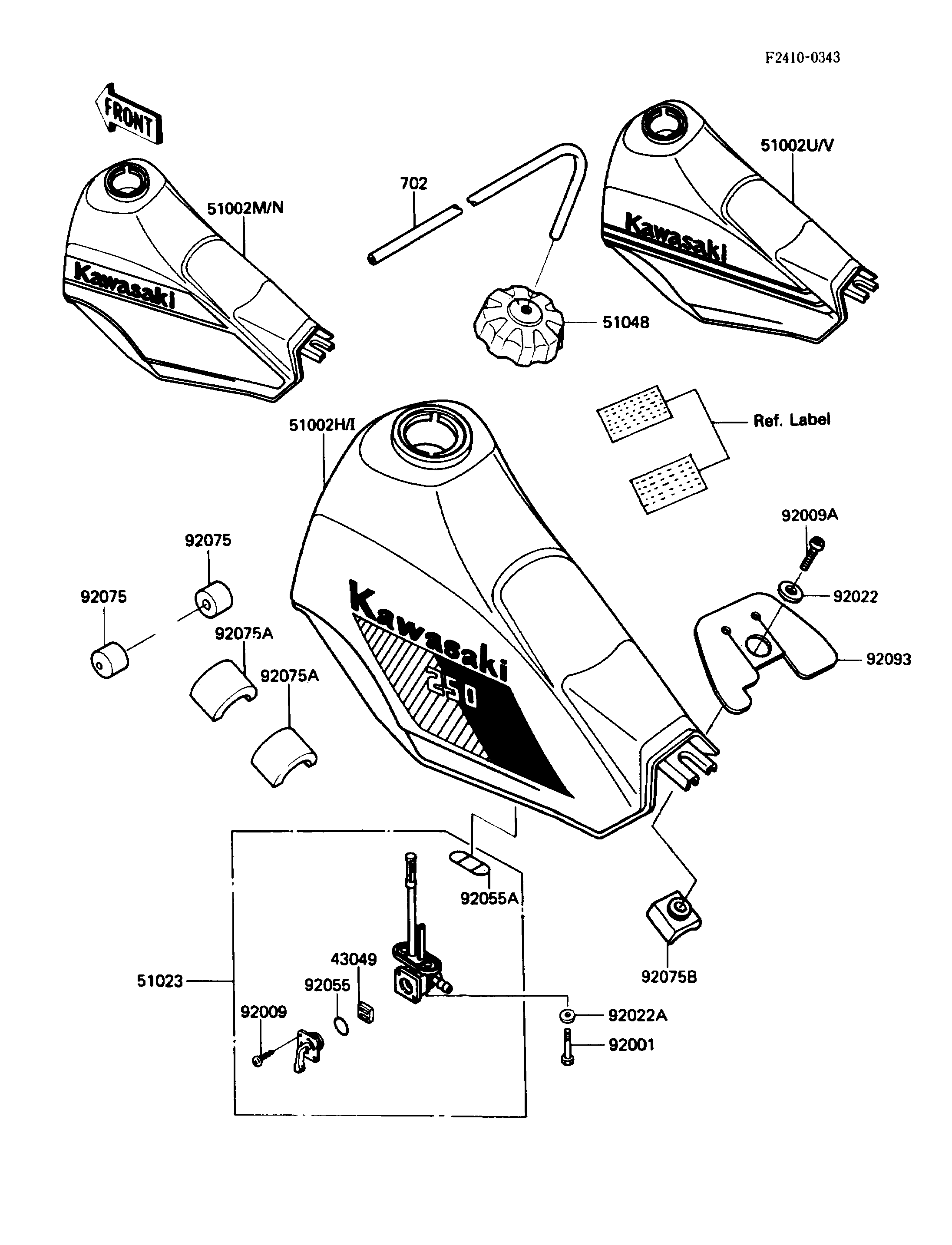

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PACKING,FUEL TAP LEVER 43049 43049-1017 1
TANK-COMP-FUEL,P.WHITE 51002H 51002-5263-F1 1 CNUS
TANK-COMP-FUEL,P.WHITE 51002I 51002-5264-F1 1 CA
TAP-ASSY,FUEL 51023 51023-1112 1
CAP-ASSY-TANK,FUEL 51048 51048-1063 1
BOLT,6X20 92001 92001-1091 2
SCREW,3X5 92009 92009-1123 2
SCREW,6X8 92009A 92009-1294 1
WASHER,6.2X38X1.2 92022 92022-1659 1
WASHER,6.2X11X1.5 92022A 92022-183 2
RING-O,FUEL TAP LEVER 92055 92055-1111 1
RING-O,FUEL TAP PACKING 92055A 92055-1112 1
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER,FUEL TANK 92075A 92075-1382 2
DAMPER,FUEL TANK 92075B 92075-1638 1
SEAL,FUEL TANK 92093 92093-1182 1
TUBE-RUBBER,5X8X400 702 702A05400 1
