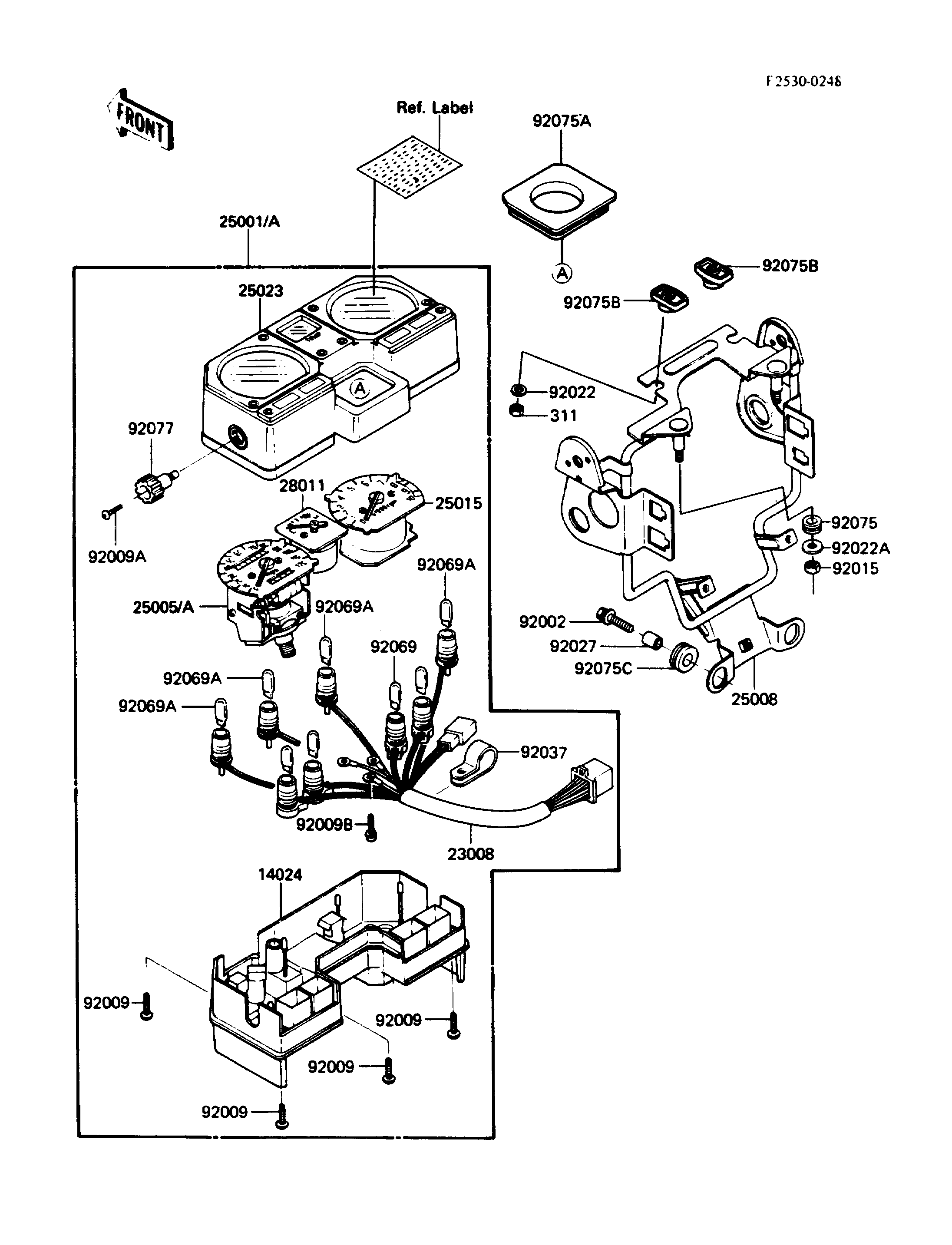

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER CASE,LWR | 14024 | 14025-1818 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1215 | 1 | ||
| METER-ASSY,KPH | 25001 | 25001-1572 | 1 | CN | |
| METER-ASSY,MPH | 25001A | 25001-1580 | 1 | CAUS | |
| SPEEDOMETER,KPH | 25005 | 25005-1285 | 1 | CN | |
| SPEEDOMETER,MPH | 25005A | 25005-1290 | 1 | CAUS | |
| BRACKET-METER | 25008 | 25008-1104 | 1 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1226 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-1107 | 1 | ||
| METER,TEMP | 28011 | 28011-1058 | 1 | ||
| BOLT,6X25 | 92002 | 92002-1137 | 2 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 4 | ||
| SCREW,2X6,BLACK | 92009A | 92009-1172 | 1 | ||
| SCREW,3X22 | 92009B | 92009-1293 | 3 | ||
| NUT,6MM | 92015 | 92015-1391 | 2 | ||
| WASHER,5.2X16X1.2 | 92022 | 25009-004 | 2 | ||
| WASHER,6.5X20X1.6 | 92022A | 92022-1557 | 2 | ||
| COLLAR,6.8X10X12 | 92027 | 92027-162 | 2 | ||
| CLAMP,METER,SOCKET ASSY | 92037 | 92037-1479 | 1 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 4 | ||
| BULB,12V 1.7W | 92069A | 92069-1059 | 4 | ||
| DAMPER | 92075 | 92075-024 | 2 | ||
| DAMPER,IGNITION SWITCH | 92075A | 92075-1578 | 1 | ||
| DAMPER,METER BRACKET | 92075B | 92075-1581 | 2 | ||
| DAMPER | 92075C | 92075-209 | 2 | ||
| KNOB,METER | 92077 | 92077-1054 | 1 | ||
| NUT-HEX | 311 | 311C0500 | 2 |
