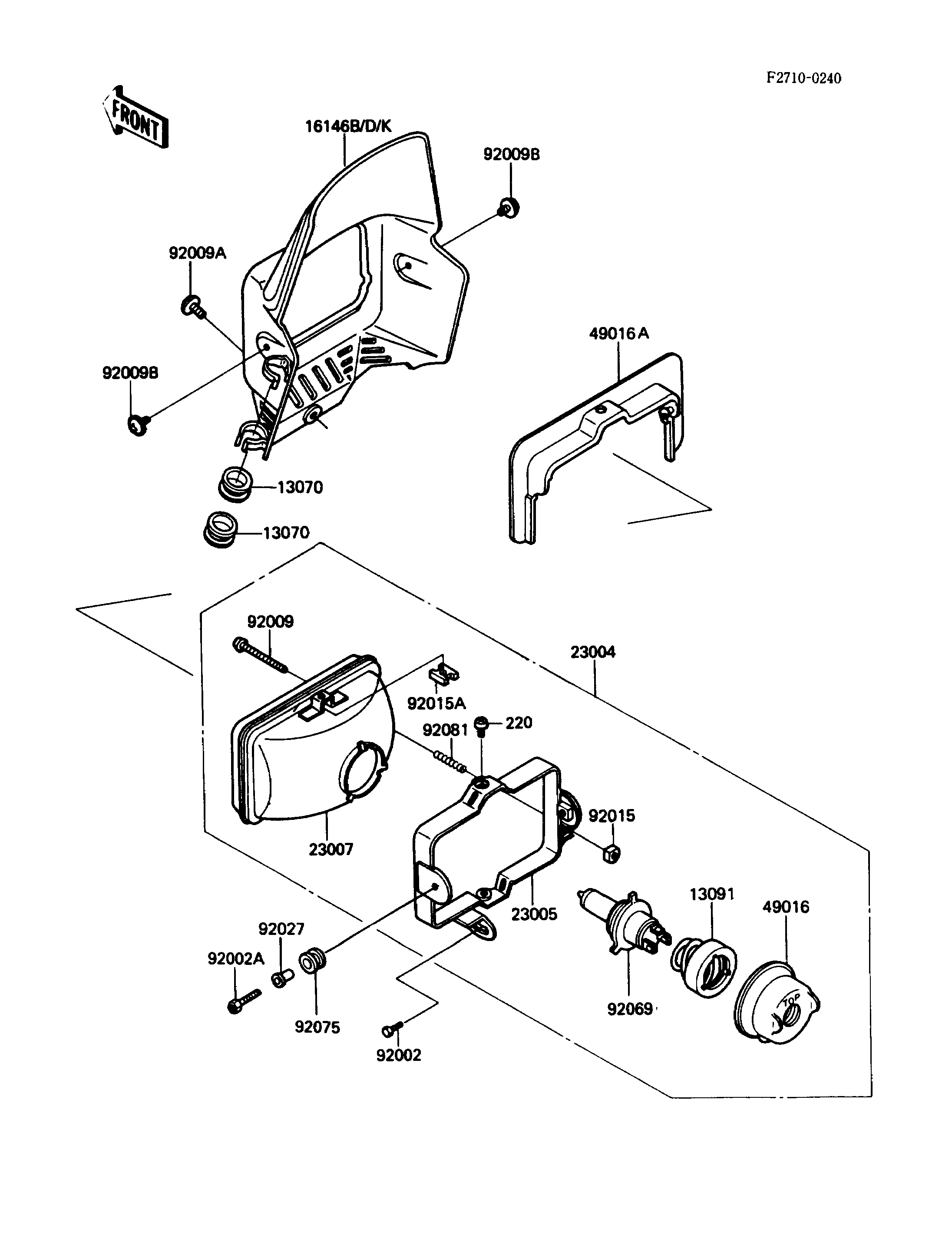

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GUIDE,BRAKE HOSE | 13070 | 13070-1107 | 2 | ||
HOLDER,SOCKET | 13091 | 13091-1558 | 1 | ||
COVER-ASSY,HEAD LAMP,P.WHITE | 16146D | 16146-5014-6F | 1 | ||
LAMP-HEAD | 23004 | 23004-1156 | 1 | ||
BODY-COMP-HEAD LAMP | 23005 | 23005-1052 | 1 | ||
LENS-COMP,HEAD LAMP | 23007 | 23007-1102 | 1 | ||
COVER-SEAL,SOCKET | 49016 | 49016-1037 | 1 | ||
COVER-SEAL,HEAD LAMP | 49016A | 49016-1101 | 1 | ||
BOLT,6X14 | 92002 | 92002-1260 | 1 | ||
BOLT | 92002A | 92002-1319 | 2 | ||
SCREW,4X48 | 92009 | 92009-1065 | 1 | ||
SCREW,6X14,WHITE | 92009A | 92009-1287 | 1 | ||
SCREW,6X8 | 92009B | 92009-1294 | 2 | ||
NUT,4MM,FOCUS ADJUST | 92015 | 23020-018 | 1 | ||
NUT,5MM | 92015A | 92015-1354 | 2 | ||
COLLAR,L=14 | 92027 | 92027-1134 | 2 | ||
BULB,12V 60/55W,H4 | 92069 | 92069-1002 | 1 | ||
DAMPER | 92075 | 92075-1569 | 2 | ||
SPRING,FOCUS ADJUSTING | 92081 | 23014-005 | 1 | ||
SCREW-PAN-CROS,5X8 | 220 | 220B0508 | 2 |
