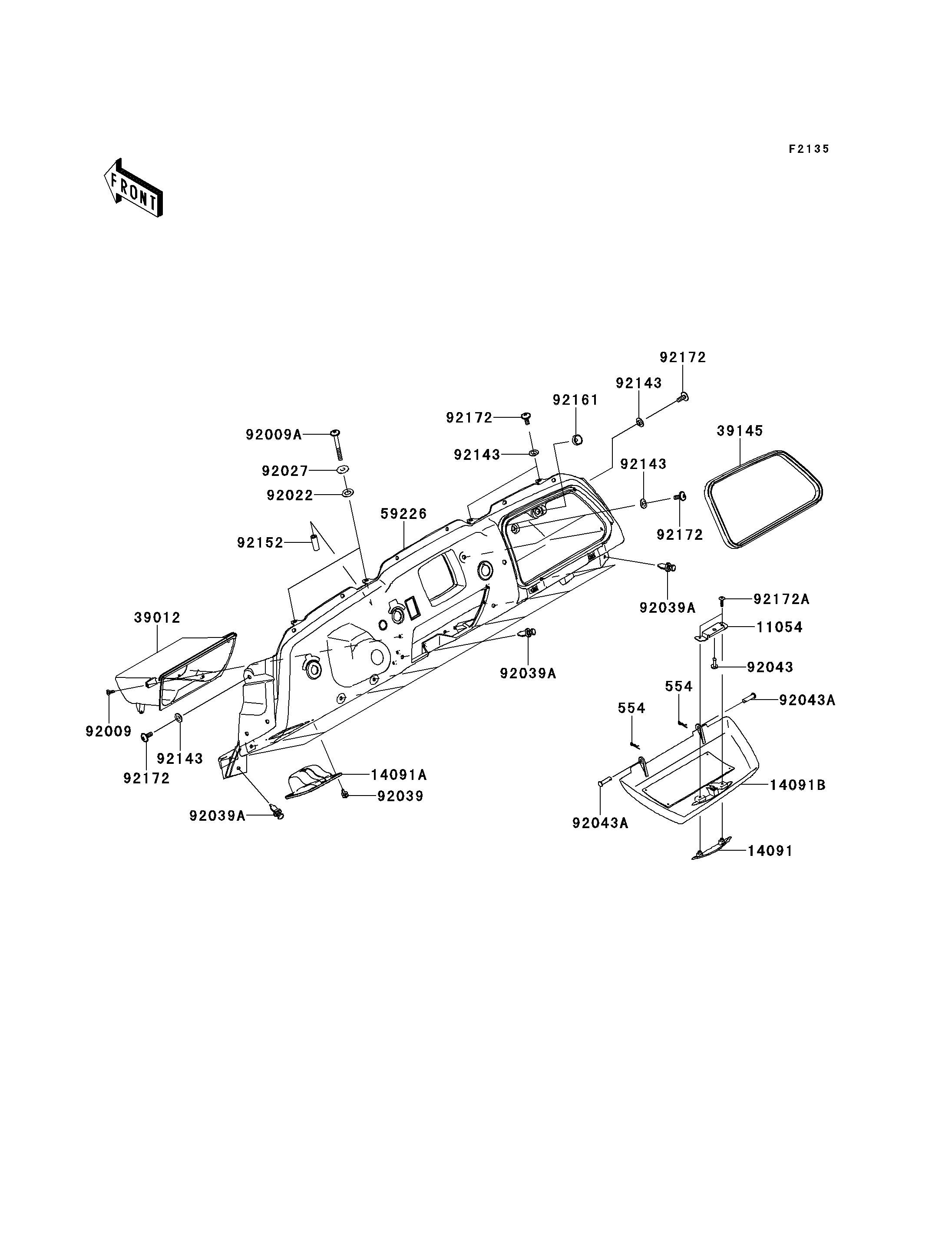

2013 TERYX® 750 FI 4x4 - Front Box

DOWNLOAD PDF
SELECT A NEW PART
554
554
11054
14091
14091A
14091B
39012
39145
59226
92009
92009A
92022
92027
92039
92039A
92039A
92039A
92043
92043A
92043A
92143
92143
92143
92143
92152
92161
92172
92172
92172
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-SNAP 554 554DA0600 2
BRACKET 11054 11054-1789 1
COVER,STORAGE CAP,F.BLACK 14091 14091-0700-6Z 1
COVER,LH,F.BLACK 14091A 14091-0702-6Z 1
COVER,STORAGE,F.BLACK 14091B 14091-0985-6Z 1
CASE-STORAGE,F.BLACK 39012 39012-0017-6Z 1
TRIM-SEAL,L=940 39145 39145-0029 1
PANEL-CONTROL,F.BLACK 59226 59226-0019-6Z 1
SCREW,TAPPING,4X12 92009 92009-1444 4
SCREW,6X56 92009A 92009-1829 2
WASHER,10.5X20X1 92022 92022-239 2
COLLAR,L=4.7 92027 92027-1964 2
RIVET 92039 92039-0046 4
RIVET 92039A 92039-1229 10
PIN 92043 92043-0138 1
PIN,6X23 92043A 92043-0164 2
COLLAR 92143 92143-1087 6
COLLAR,7.95X15.88X40 92152 92152-0777 2
DAMPER 92161 92161-0568 1
SCREW,6X16 92172 92172-0236 6
SCREW,TAPPING,4X16 92172A 92172-0347 2
