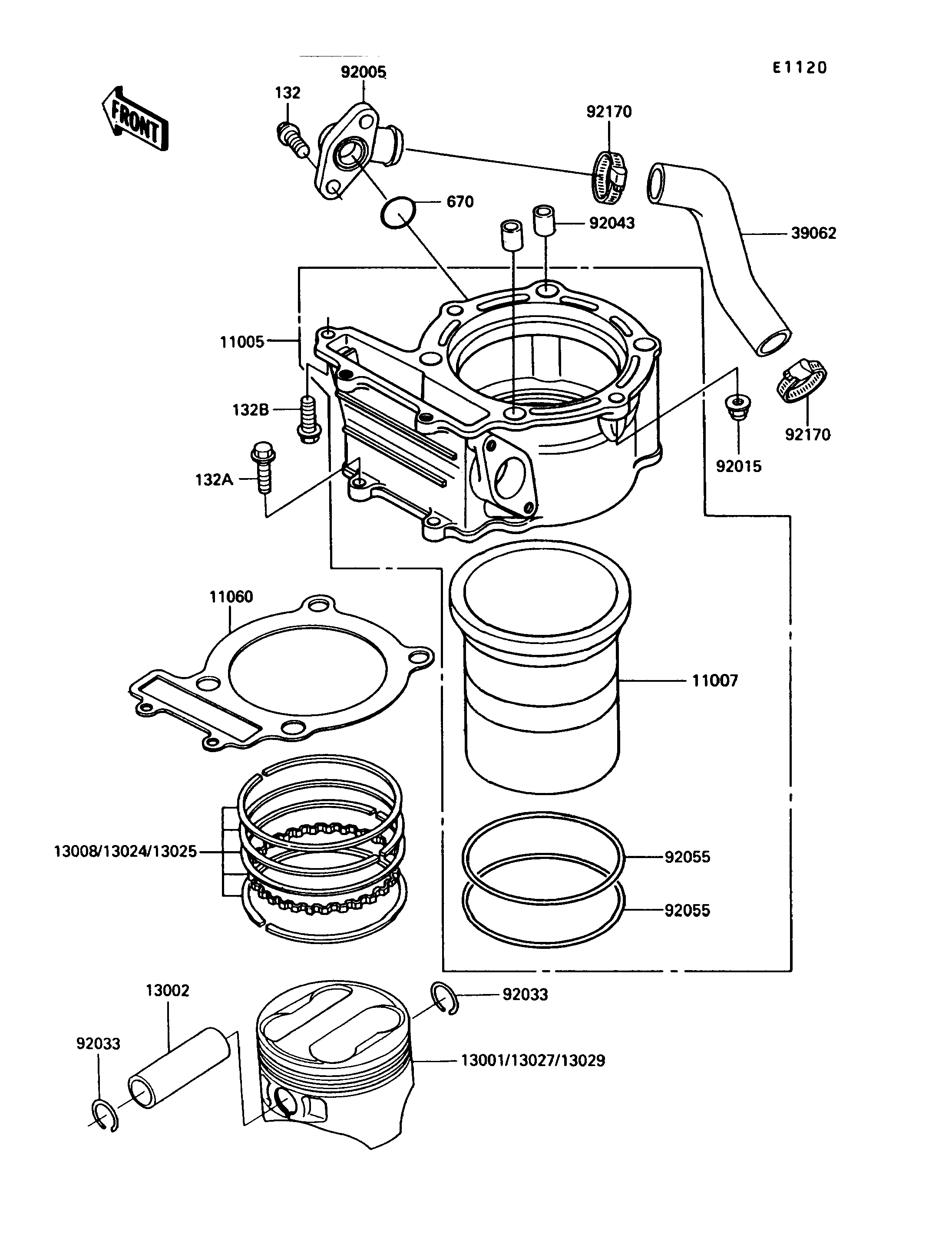

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CYLINDER-ENGINE | 11005 | 11005-1387 | 1 | ||
LINER-CYLINDER | 11007 | 11007-1070 | 1 | ||
GASKET,CYLINDER BASE | 11060 | 11060-1125 | 1 | ||
PISTON-ENGINE,STD | 13001 | 13001-1280 | 1 | ||
PIN-PISTON,12X18X57.2 | 13002 | 13002-1023 | 1 | ||
RING-SET-PISTON,STD | 13008 | 13008-1066 | 1 | ||
RING-SET-PISTON LL,O/S 1.00 | 13024 | 13024-1068 | 1 | ||
RING-SET-PISTON L,O/S 0.50 | 13025 | 13025-1065 | 1 | ||
PISTON-ENGINE LL,O/S 1.00 | 13027 | 13027-1152 | 1 | ||
PISTON-ENGINE L,O/S 0.50 | 13029 | 13029-1175 | 1 | ||
HOSE-COOLING | 39062 | 39062-1082 | 1 | ||
FITTING | 92005 | 92005-1122 | 1 | ||
NUT,CAP,8MM,BLACK | 92015 | 92015-1174 | 2 | ||
RING-SNAP | 92033 | 92033-1182 | 2 | ||
PIN,10.1X12X14 | 92043 | 92043-4009 | 2 | ||
RING-O | 92055 | 92055-1247 | 2 | ||
CLAMP,COOLING HOSE | 92170 | 92170-1033 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132J0612 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132J0620 | 2 | ||
BOLT-FLANGED-SMALL | 132B | 132J0625 | 1 | ||
O RING,18MM | 670 | 670B2018 | 1 |
CYLINDER-ENGINE | |
REF # | 11005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LINER-CYLINDER | |
REF # | 11007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,CYLINDER BASE | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-ENGINE,STD | |
REF # | 13001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-PISTON,12X18X57.2 | |
REF # | 13002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SET-PISTON,STD | |
REF # | 13008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SET-PISTON LL,O/S 1.00 | |
REF # | 13024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SET-PISTON L,O/S 0.50 | |
REF # | 13025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-ENGINE LL,O/S 1.00 | |
REF # | 13027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-ENGINE L,O/S 0.50 | |
REF # | 13029 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CAP,8MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,10.1X12X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,COOLING HOSE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,18MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
