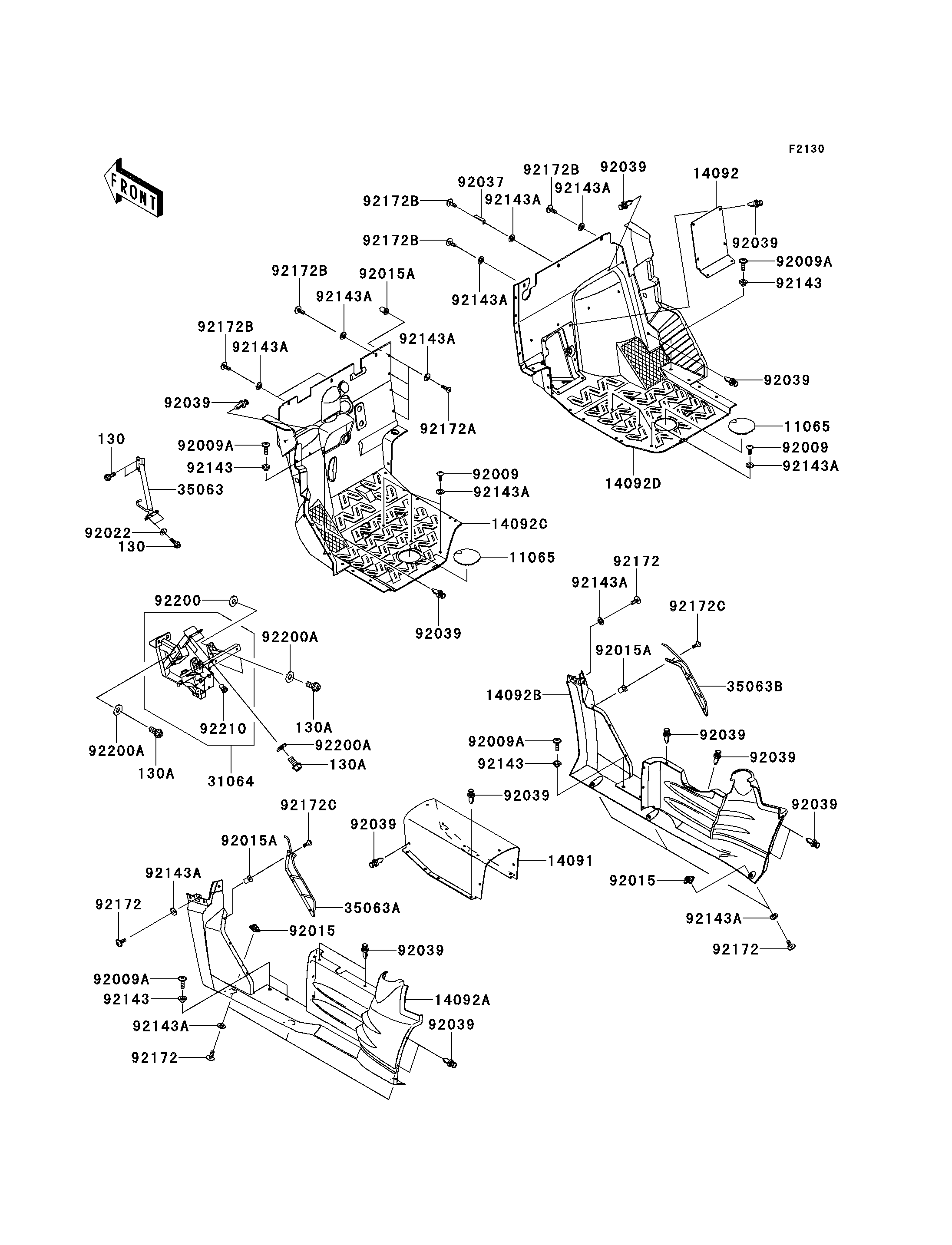

2013 TERYX® 750 FI 4x4 LE - Frame Fittings(Front)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
130A
11065
11065
14091
14092
14092A
14092B
14092C
14092D
31064
35063
35063A
35063B
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92015A
92015A
92015A
92022
92037
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92172
92172
92172
92172
92172A
92172B
92172B
92172B
92172B
92172B
92172C
92172C
92200
92200A
92200A
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130BA0618 4
BOLT-FLANGED,10X20 130A 130CA1020 6
CAP 11065 11065-0267 2
COVER,CENTER,F.BLACK 14091 14091-0696-6Z 1
COVER,RESERV. TANK,F.BLACK 14092 14092-0079-6Z 1
COVER,SIDE,LH,F.BLACK 14092A 14092-0889-6Z 1
COVER,SIDE,RH,F.BLACK 14092B 14092-0890-6Z 1
COVER,FLOOR,LH 14092C 14092-0898 1
COVER,FLOOR,RH 14092D 14092-0899 1
PIPE-COMP 31064 31064-0172 1
STAY,MASTER CYLINDER 35063 35063-0518 1
STAY,SIDE COVER,LH 35063A 35063-0544 1
STAY,SIDE COVER,RH 35063B 35063-0545 1
SCREW,TAPPING,6X16 92009 92009-1166 6
SCREW,6X22,BLACK 92009A 92009-1256 6
NUT 92015 92015-1487 6
NUT,WELL,5MM 92015A 92015-1757 10
WASHER,6.2X15.0X1.2 92022 92022-2373 2
CLAMP,HARNESS 92037 92037-1316 1
RIVET 92039 92039-1229 32
COLLAR 92143 92143-1057 6
COLLAR 92143A 92143-1087 24
SCREW,6X16 92172 92172-0236 8
SCREW,5X18 92172A 92172-0504 4
SCREW,TAPPING,6X16 92172B 92172-0739 6
SCREW,5X20 92172C 92172-2081 6
WASHER,10X22X3.2 92200 92200-0121 2
WASHER,10.3X23X1.6 92200A 92200-2009 6
NUT,POP,6MM,L=15 92210 92210-1397 2
