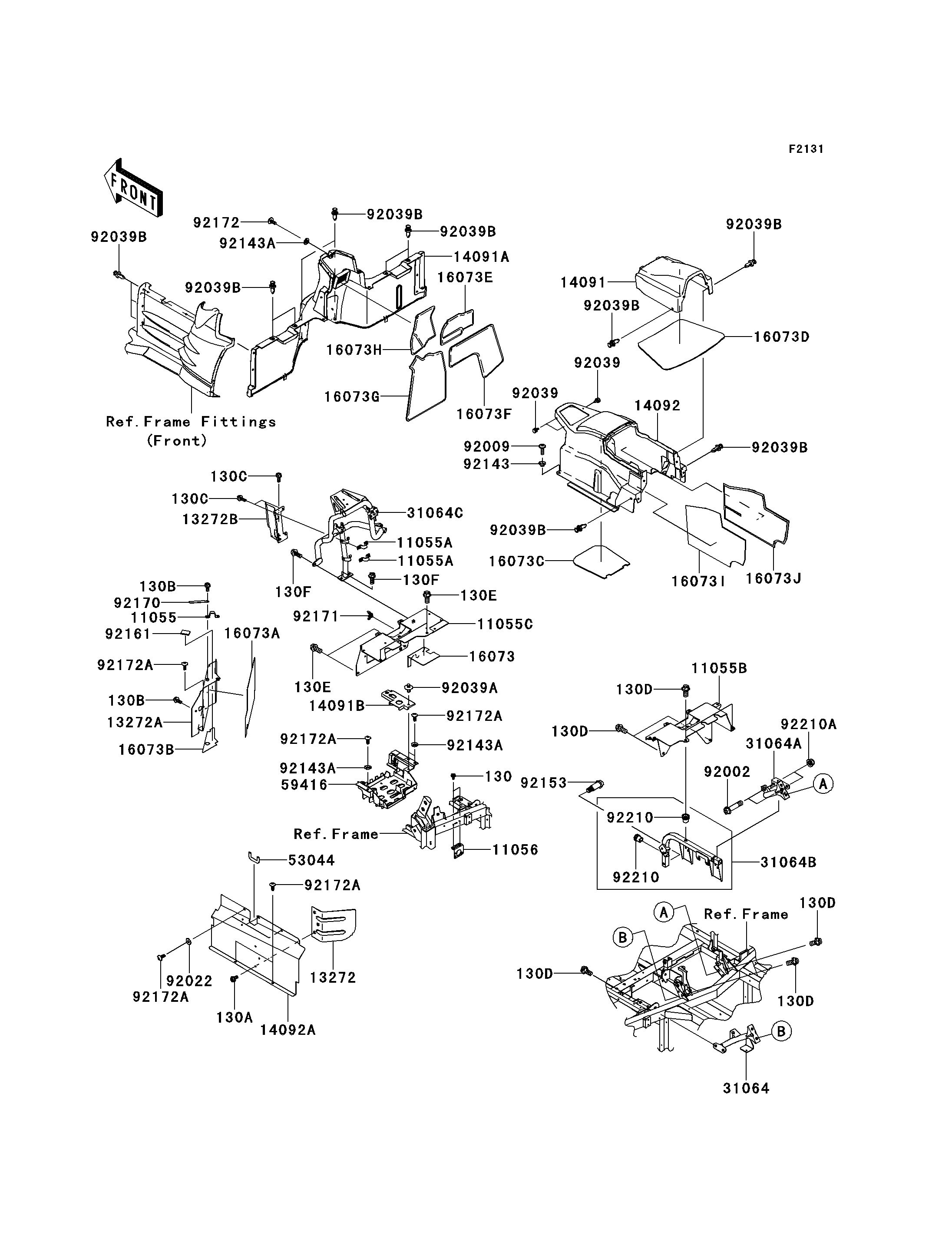

2013 TERYX® 750 FI 4x4 LE - Frame Fittings(Rear)
11055
11055
11055A
11055A
11055A
11055A
11055B
11055B
11055C
11055C
11056
11056
13272
13272
13272A
13272A
13272B
13272B
14091
14091
14091A
14091A
14091B
14091B
14092
14092
14092A
14092A
16073
16073
16073A
16073A
16073B
16073B
16073C
16073C
16073D
16073D
16073E
16073E
16073F
16073F
16073G
16073G
16073H
16073H
16073I
16073I
16073J
16073J
31064
31064
31064A
31064A
31064B
31064B
31064C
31064C
53044
53044
59416
59416
92002
92002
92009
92009
92022
92022
92039
92039
92039
92039
92039A
92039A
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92153
92153
92161
92161
130
130
130A
130A
130B
130B
130B
130B
130C
130C
130C
130C
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
130E
130E
130E
130E
130F
130F
130F
130F
92170
92170
92171
92171
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92210
92210
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11055 | 11055-0419 | 1 | ||
| BRACKET | 11055A | 11055-0896 | 2 | ||
| BRACKET,SEAT LOCK PLATE,RH | 11055B | 11055-1409 | 1 | ||
| BRACKET,SEAT LOCK PLATE,LH | 11055C | 11055-1921 | 1 | ||
| BRACKET | 11056 | 11056-1519 | 1 | ||
| PLATE | 13272 | 13272-0318 | 1 | ||
| PLATE,HEAT GUARD | 13272A | 13272-0731 | 1 | ||
| PLATE,WIND GUIDE | 13272B | 13272-1206 | 1 | ||
| COVER,CONSOLE CENTER,F.BLACK | 14091 | 14091-0975-6Z | 1 | ||
| COVER,SEAT,F.BLACK | 14091A | 14091-0982-6Z | 1 | ||
| COVER,ELECTRIC | 14091B | 14091-1761 | 1 | ||
| COVER,CONSOLE CENTER,F.BLACK | 14092 | 14092-0891-6Z | 1 | ||
| COVER,HEAT | 14092A | 14092-1021 | 1 | ||
| INSULATOR,SEAT BRACKET | 16073 | 16073-0097 | 1 | ||
| INSULATOR,EXHAUST PIPE | 16073A | 16073-0112 | 1 | ||
| INSULATOR,EXHAUST PIPE | 16073B | 16073-0113 | 1 | ||
| INSULATOR,CONSOLE,UPP | 16073C | 16073-0118 | 1 | ||
| INSULATOR,A/C,UPP | 16073D | 16073-0750 | 1 | ||
| INSULATOR,UPP | 16073E | 16073-0753 | 1 | ||
| INSULATOR,RH | 16073F | 16073-0754 | 1 | ||
| INSULATOR,LH,LWR | 16073G | 16073-0755 | 1 | ||
| INSULATOR,LH,UPP | 16073H | 16073-0756 | 1 | ||
| INSULATOR,CONSOLE,LH | 16073I | 16073-0757 | 1 | ||
| INSULATOR,CONSOLE,RH | 16073J | 16073-0758 | 1 | ||
| PIPE-COMP,LH | 31064 | 31064-0600 | 1 | ||
| PIPE-COMP,RH | 31064A | 31064-0601 | 1 | ||
| PIPE-COMP,SEAT RAIL | 31064B | 31064-0602 | 1 | ||
| PIPE-COMP | 31064C | 31064-0616 | 1 | ||
| TRIM | 53044 | 53044-0563 | 1 | ||
| CASE-ELECTRIC | 59416 | 59416-0018 | 1 | ||
| BOLT,FLANGED,10X46 | 92002 | 92002-1740 | 2 | ||
| SCREW,6X22,BLACK | 92009 | 92009-1256 | 2 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 3 | ||
| RIVET | 92039 | 92039-0046 | 3 | ||
| RIVET | 92039A | 92039-0086 | 1 | ||
| RIVET | 92039B | 92039-1229 | 16 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR | 92143A | 92143-1087 | 4 | ||
| BOLT,FLANGED,10X38 | 92153 | 92153-1742 | 1 | ||
| DAMPER | 92161 | 92161-0273 | 1 | ||
| BOLT-FLANGED,5X10 | 130 | 130BA0510 | 2 | ||
| BOLT-FLANGED,6X12 | 130A | 130BA0612 | 3 | ||
| BOLT-FLANGED,6X14 | 130B | 130BA0614 | 3 | ||
| BOLT-FLANGED,6X16 | 130C | 130BA0616 | 5 | ||
| BOLT-FLANGED,10X20 | 130D | 130BA1020 | 10 | ||
| BOLT-FLANGED,10X20 | 130E | 130BB1020 | 4 | ||
| BOLT-FLANGED,8X20 | 130F | 130CA0820 | 4 | ||
| CLAMP | 92170 | 92170-1925 | 1 | ||
| CLAMP | 92171 | 92171-0453 | 1 | ||
| SCREW,6X16 | 92172 | 92172-0236 | 1 | ||
| SCREW,TAPPING,6X16 | 92172A | 92172-0739 | 9 | ||
| NUT,POP,10MM | 92210 | 92210-0352 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210A | 92210-1080 | 2 |
