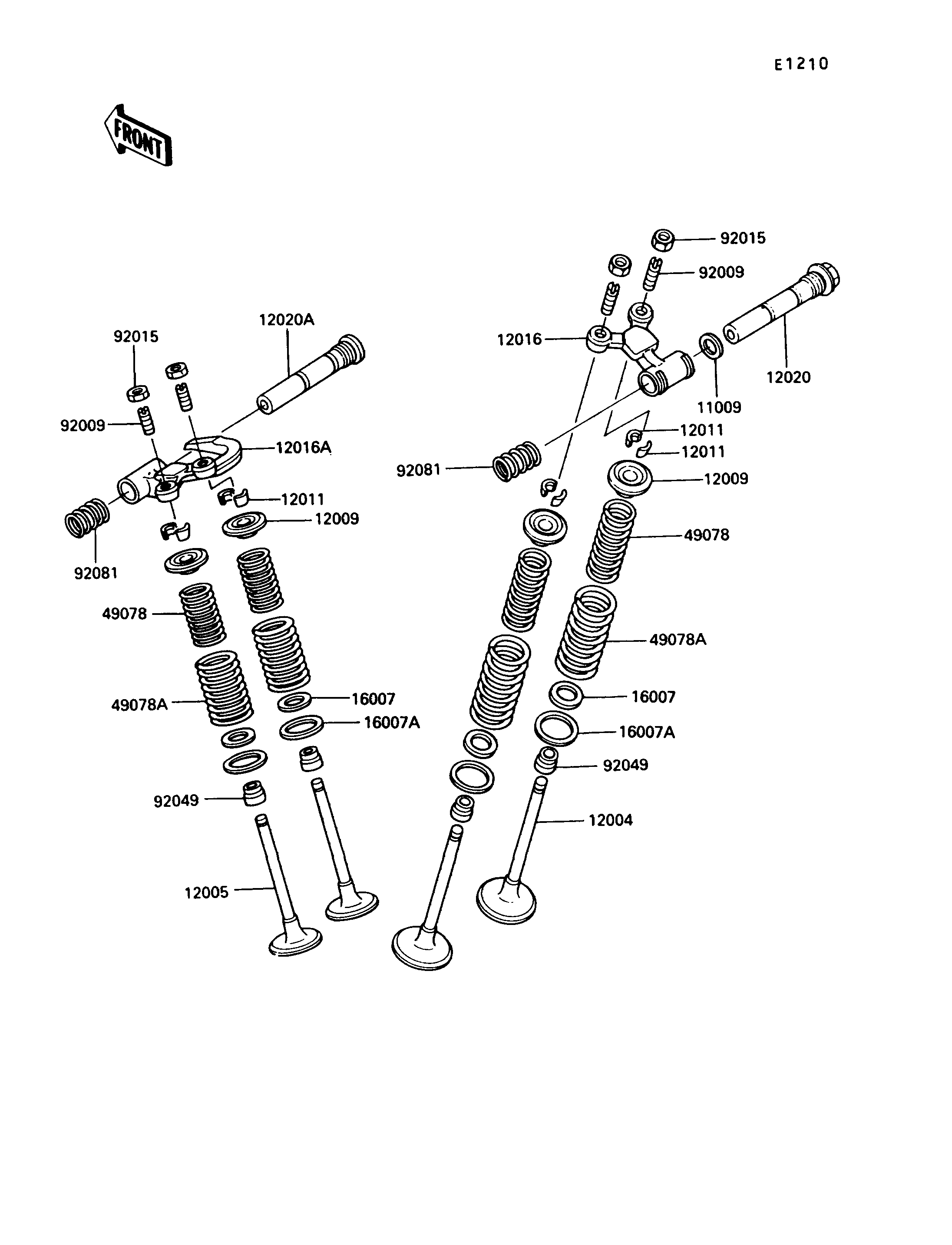

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,14X18X1.5 11009 11009-1430 1
VALVE-INTAKE 12004 12004-1077 2
VALVE-EXHAUST 12005 12005-1052 2
RETAINER-VALVE SPRING 12009 12009-1054 4
COLLET 12011 12011-1003 8
ARM-ROCKER,INTAKE 12016 12016-1071 1
ARM-ROCKER 12016A 12016-1083 1
SHAFT-ROCKER,INTAKE 12020 12020-1055 1
SHAFT-ROCKER,EXHAUST 12020A 12020-1056 1
SEAT-SPRING,12.1X16.2X0.5 16007 16007-1143 4
SEAT-SPRING,17.5X23.8X0.5 16007A 16007-1144 4
SPRING-ENGINE VALVE,INNER 49078 49078-1051 4
SPRING-ENGINE VALVE,OUTER 49078A 49078-1056 4
SCREW,7MM 92009 92009-1279 4
NUT,7MM 92015 92015-1325 4
SEAL-OIL,RVC2-5.5X8.5X8.3 92049 92049-1062 4
SPRING,ROCKER ARM 92081 92081-1740 2
