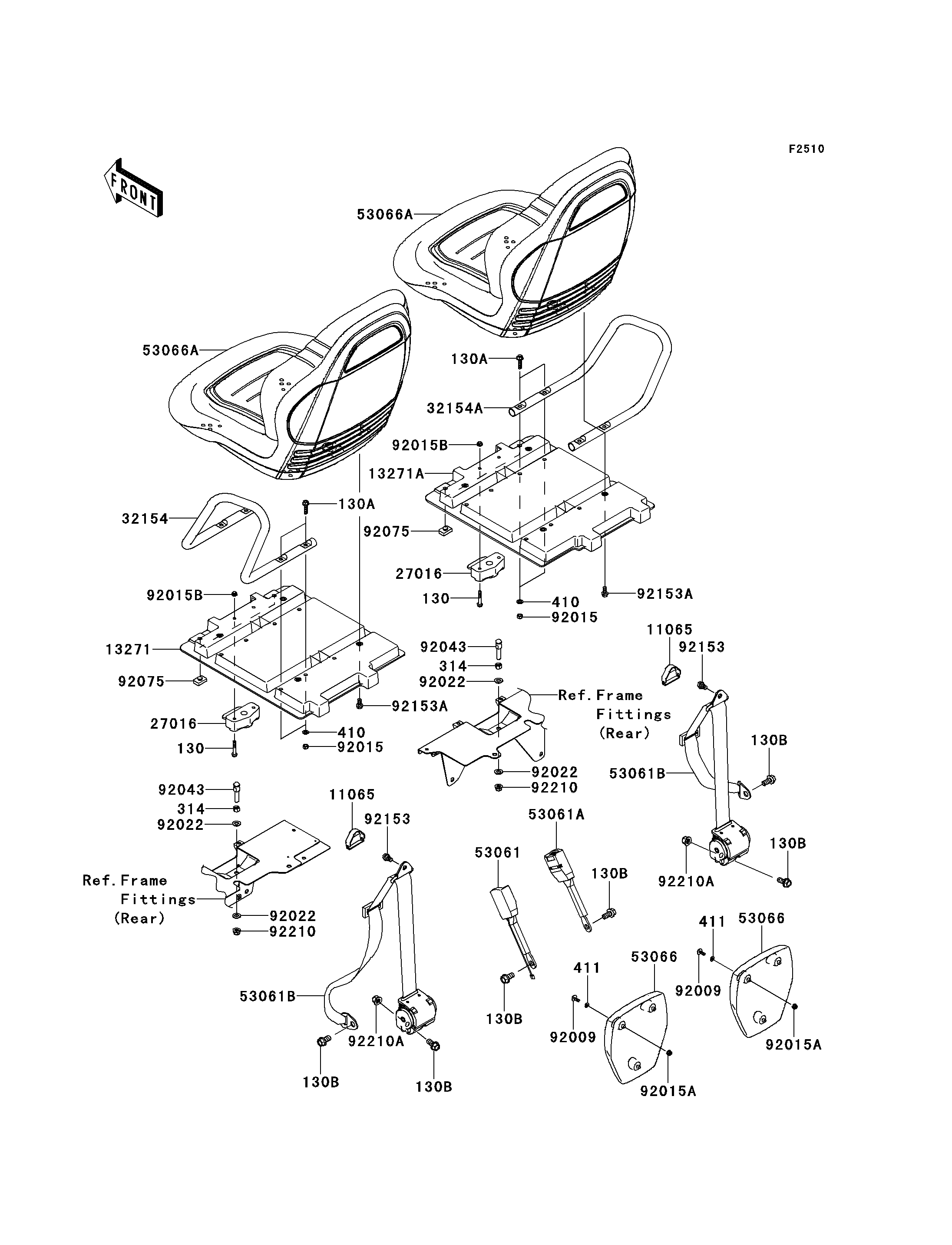

2013 TERYX® 750 FI 4x4 LE - Seat

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
130B
130B
130B
130B
130B
130B
314
314
410
410
411
411
11065
11065
13271
13271A
27016
27016
32154
32154A
53061
53061A
53061B
53061B
53066
53066
53066A
53066A
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92022
92022
92022
92022
92043
92043
92075
92075
92153
92153
92153A
92153A
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X40 130 130CA0640 4
BOLT-FLANGED,8X30 130A 130CA0830 8
BOLT-FLANGED,12X25 130B 130CA1225 6
NUT-HEX-FINE,10MM 314 314AA1000 2
WASHER-PLAIN-SMALL,8MM 410 410AA0800 8
WASHER-PLAIN,6.5X13X1 411 411AB0600 6
CAP 11065 11065-0713 2
PLATE,SEAT,LWR,LH,F.BLACK 13271 13271-0894-6Z 1
PLATE,SEAT,LWR,RH,F.BLACK 13271A 13271-0895-6Z 1
LOCK-ASSY,SEAT 27016 27016-3758 2
PIPE,SEAT PLATE,LH 32154 32154-1249 1
PIPE,SEAT PLATE,RH 32154A 32154-1250 1
BELT-SEAT,BUCKLE 53061 53061-0319 1
BELT-SEAT,BUCKLE 53061A 53061-0320 1
BELT-SEAT,BUCKLE 53061B 53061-0322 2
SEAT-ASSY,PAD HEAD,BLACK 53066 53066-0163-6D 2
SEAT-ASSY 53066A 53066-0195 2
SCREW,6X16 92009 92009-1621 6
NUT,LOCK,8MM 92015 92015-1124 8
NUT,LOCK,FLANGED,6MM 92015A 92015-1603 6
NUT,LOCK,FLANGED,6MM 92015B 92015-1699 4
WASHER,10.5X20X1.6 92022 92022-1591 4
PIN 92043 92043-0126 2
DAMPER,SEAT 92075 92075-1153 4
BOLT,FLANGED,10X16 92153 92153-1740 2
BOLT 92153A 92153-1924 8
NUT,LOCK,FLANGED,10MM 92210 92210-0276 2
NUT,12MM 92210A 92210-0603 2
