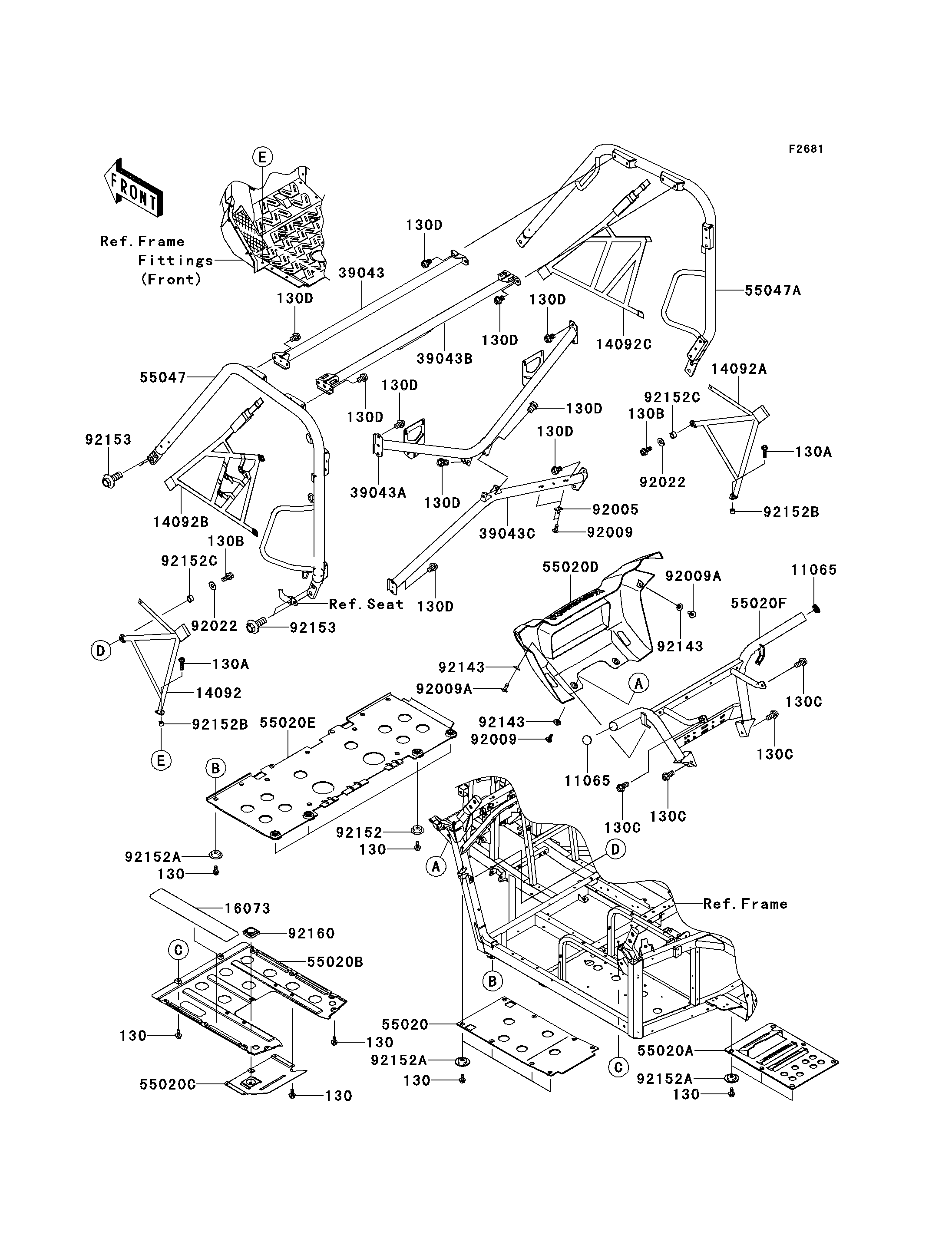

2013 TERYX® 750 FI 4x4 LE - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130
130
130
130A
130A
130B
130B
130C
130C
130C
130C
130D
130D
130D
130D
130D
130D
130D
130D
130D
130D
11065
11065
14092
14092A
14092B
14092C
16073
39043
39043A
39043B
39043C
55020
55020A
55020B
55020C
55020D
55020E
55020F
55047
55047A
92005
92009
92009
92009A
92009A
92022
92022
92143
92143
92143
92152
92152A
92152A
92152A
92152B
92152B
92152C
92152C
92153
92153
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 44
BOLT-FLANGED,6X25 130A 130BB0625 2
BOLT-FLANGED,8X20 130B 130BB0820 2
BOLT-FLANGED,10X20 130C 130CA1020 4
BOLT-FLANGED,10X14 130D 130CB1014 18
CAP 11065 11065-0214 2
COVER,LH,LWR 14092 14092-0942 1
COVER,RH,LWR 14092A 14092-0944 1
COVER,LH,UPP 14092B 14092-0955 1
COVER,RH,UPP 14092C 14092-0956 1
INSULATOR,ENGINE GUARD 16073 16073-0045 1
CROSSMEMBER-COMP,UPP,FR,GRAY 39043 39043-0001-16Y 1
CROSSMEMBER-COMP,RR,UPP,GRAY 39043A 39043-0005-16Y 1
CROSSMEMBER-COMP,UPP,RR,GRAY 39043B 39043-0007-16Y 1
CROSSMEMBER-COMP,RR,LWR,GRAY 39043C 39043-0008-16Y 1
GUARD,SKID,FR 55020 55020-0301 1
GUARD,SKID,RR 55020A 55020-0402 1
GUARD,SKID,MIDDLE 55020B 55020-0437 1
GUARD,ENGINE,SUB 55020C 55020-0438 1
GUARD,FRONT COVER 55020D 55020-0520 1
GUARD,SKID,MIDDLE 55020E 55020-0522 1
GUARD,FRONT PIPE,T.BLACK 55020F 55020-0810-388 1
BAR-COMP,LH,T.M.GRAY 55047 55047-0332-16Y 1
BAR-COMP,RH,T.M.GRAY 55047A 55047-0333-16Y 1
FITTING 92005 92005-0077 2
SCREW,TAPPING,6X16 92009 92009-1166 6
SCREW,6X16 92009A 92009-1621 2
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 2
COLLAR 92143 92143-1087 4
COLLAR 92152 92152-0512 4
COLLAR 92152A 92152-0784 25
COLLAR,6.2X9.5X7.5 92152B 92152-1576 2
COLLAR,9.3X13.5X8.6 92152C 92152-1608 2
BOLT,FLANGED,14X36 92153 92153-1282 8
DAMPER 92160 92160-1772 1
