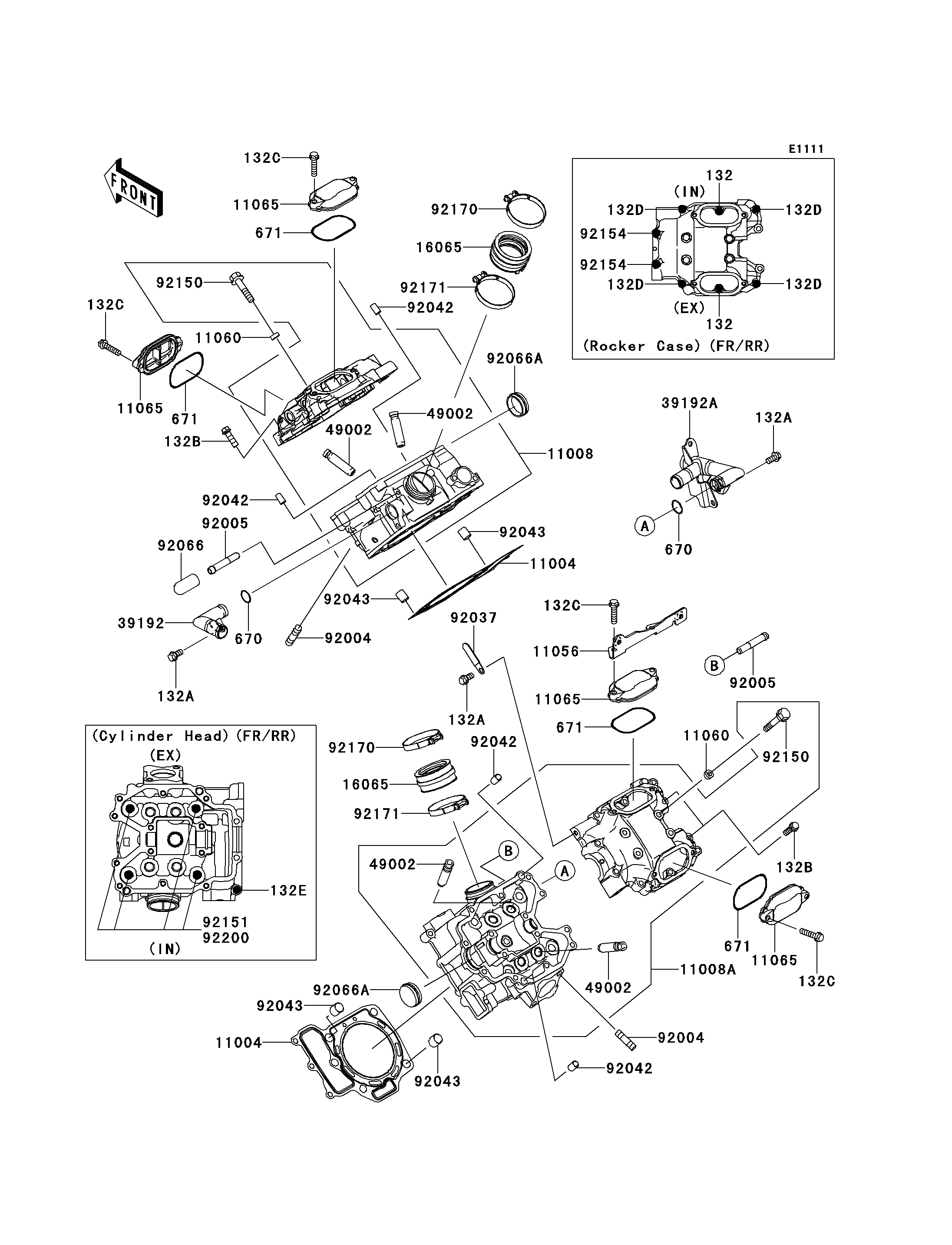

2013 TERYX® 750 FI 4x4 SPORT - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
132A
132B
132B
132C
132C
132C
132C
132D
132D
132D
132D
132E
670
670
671
671
671
671
11004
11004
11008
11008A
11056
11060
11060
11065
11065
11065
11065
16065
16065
39192
39192A
49002
49002
49002
49002
92004
92004
92005
92005
92037
92042
92042
92042
92042
92043
92043
92043
92043
92066
92066A
92066A
92150
92150
92151
92154
92154
92170
92170
92171
92171
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BA0625 4
BOLT-FLANGED-SMALL,6X12 132A 132BD0612 3
BOLT-FLANGED-SMALL,6X20 132B 132BD0620 4
BOLT-FLANGED-SMALL,6X25 132C 132BD0625 8
BOLT-FLANGED-SMALL,6X30 132D 132BD0630 8
BOLT-FLANGED-SMALL,6X95 132E 132BD0695 2
O RING,16MM 670 670B2016 2
O RING,55MM 671 671D2555 4
GASKET-HEAD 11004 11004-0011 2
HEAD-COMP-CYLINDER,FR 11008 11008-0770 1
HEAD-COMP-CYLINDER,RR 11008A 11008-0771 1
BRACKET 11056 11056-1423 1
GASKET,6.2X12X0.3 11060 11060-1994 8
CAP,ROCKER CASE 11065 11065-0724 4
HOLDER-CARBURETOR 16065 16065-0113 2
PIPE-WATER,FR 39192 39192-0119 1
PIPE-WATER,RR 39192A 39192-0120 1
GUIDE-VALVE 49002 49002-0706 8
STUD,8X22 92004 92004-1217 4
FITTING 92005 92005-1264 2
CLAMP,L=45 92037 92037-1539 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,10.1X12X14 92043 92043-4009 4
PLUG 92066 92066-0713 1
PLUG 92066A 92066-1289 2
BOLT,FLANGED,6X55 92150 92150-1302 8
BOLT,FLANGED,10X150 92151 92151-1917 8
BOLT,FLANGED,6X130 92154 92154-0993 4
CLAMP 92170 92170-1448 2
CLAMP 92171 92171-0722 2
WASHER,11.5X20.5X1.6 92200 92200-1128 8
