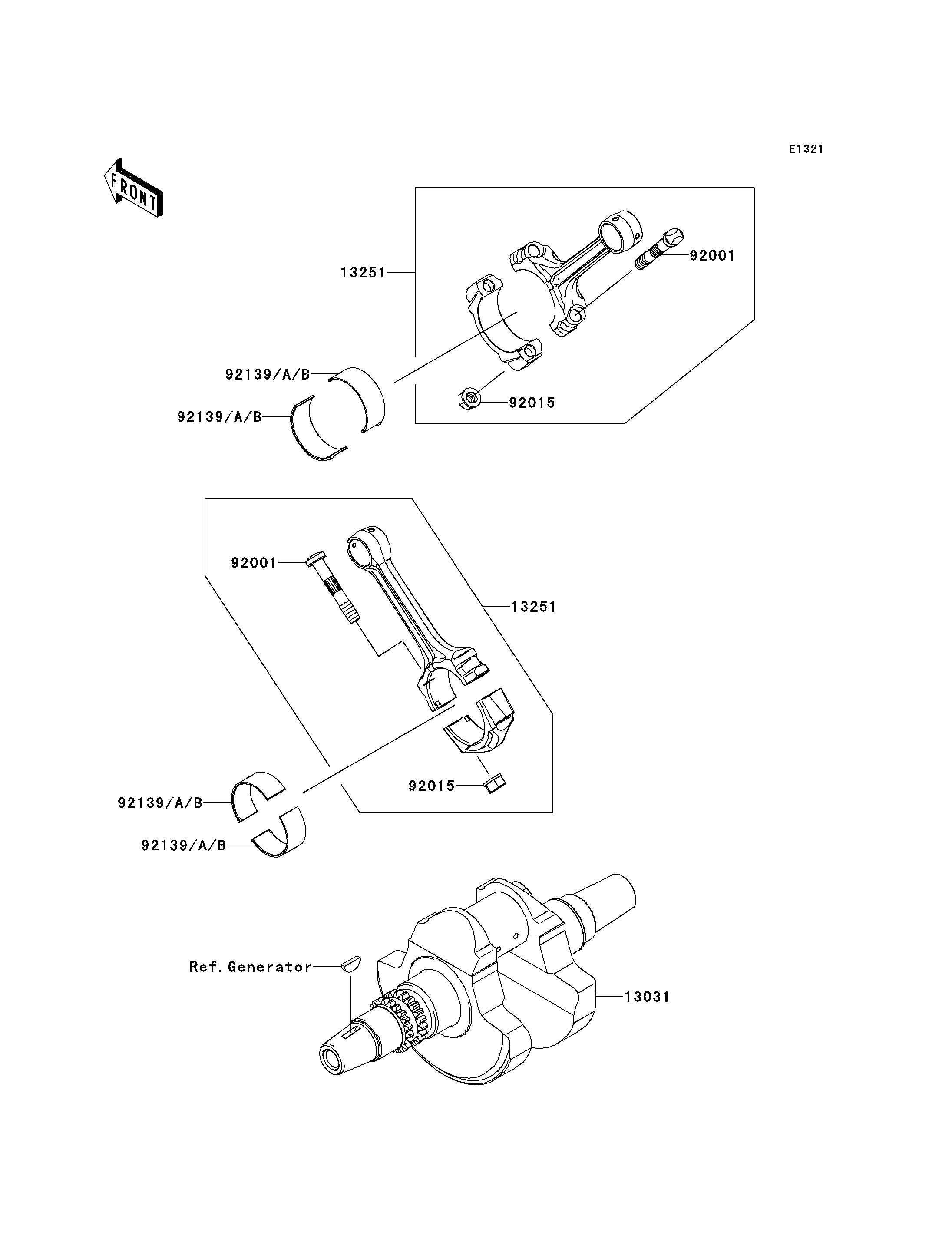

2013 TERYX® 750 FI 4x4 SPORT - Crankshaft
13031
13251
13251
92001
92001
92015
92015
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CRANKSHAFT-COMP | 13031 | 13031-0718 | 1 | ||
ROD-ASSY-CONNECTING | 13251 | 13251-0709 | 2 | ||
BOLT,CONNECTING ROD | 92001 | 92001-1980 | 4 | ||
NUT,FLANGED,8MM | 92015 | 92015-1311 | 4 | ||
BUSHING,CONNECTING ROD,GREEN | 92139 | 92139-0764 | AR | ||
BUSHING,CONNECTING ROD,YELLOW | 92139A | 92139-0765 | 4 | ||
BUSHING,CONNECTING ROD,BROWN | 92139B | 92139-0766 | AR |
