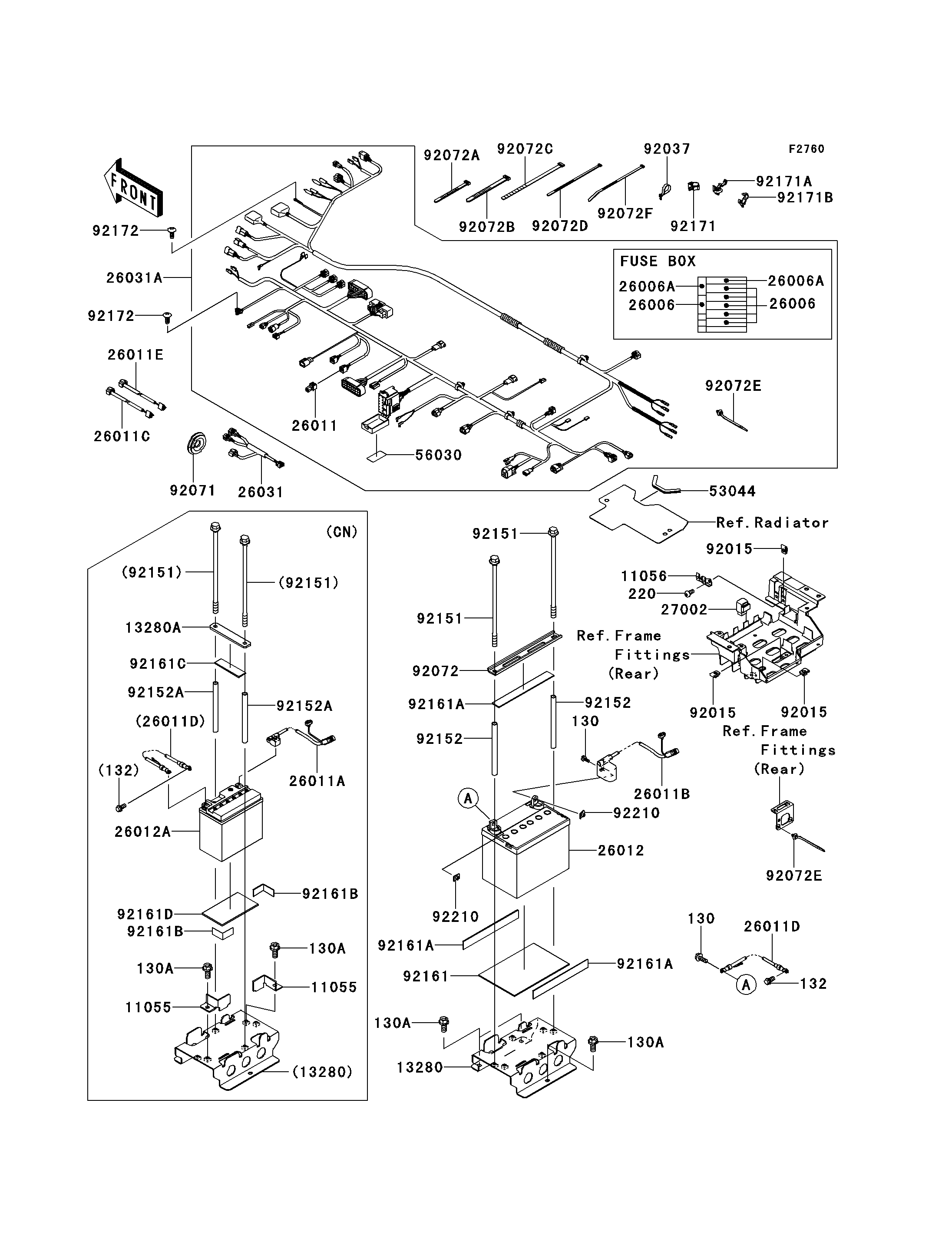

2013 TERYX® 750 FI 4x4 SPORT - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
13280
13280
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26011
26011
26011C
26011C
26011D
26011D
26011E
26011E
26031
26031
26031A
26031A
27002
27002
53044
53044
56030
56030
92015
92015
92015
92015
92015
92015
92037
92037
92071
92071
92072A
92072A
92072B
92072B
92072C
92072C
92072D
92072D
92072E
92072E
92072E
92072E
92072F
92072F
92151
92151
92151
92151
132
132
220
220
92171
92171
92171B
92171B
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUSE BOX 11056 11056-1518 1
HOLDER,BATTERY 13280 13280-0361 1
FUSE,MINI BLADE,10A,RED 26006 26006-1078 6
FUSE,MINI BLADE,30A,GREEN 26006A 26006-1080 2
WIRE-LEAD 26011 26011-0037 1
WIRE-LEAD,HEAD LAMP,LH 26011C 26011-0276 1
WIRE-LEAD,BATTERY(-) 26011D 26011-0753 1
WIRE-LEAD,HEAD LAMP,RH 26011E 26011-0759 1
HARNESS,SUB 26031 26031-0752 1
HARNESS,MAIN 26031A 26031-1263 1
RELAY-ASSY 27002 27002-1062 1
TRIM 53044 53044-0564 1
LABEL,FUSE 56030 56030-0753 1
NUT,6MM 92015 92015-1602 3
CLAMP,SPEED,L=80.5 92037 92037-1903 5
GROMMET 92071 92071-0030 1
BAND,L=123 92072A 92072-030 1
BAND,L=149 92072B 92072-031 1
BAND,L=218 92072C 92072-032 1
BAND,L=186 92072D 92072-056 1
BAND 92072E 92072-1414 4
BAND,L=292.1 92072F 92072-3509 17
BOLT,8X177 92151 92151-1788 2
BOLT-FLANGED-SMALL,6X12 132 132BD0612 1
SCREW-PAN-CROS,6X12 220 220AA0612 1
CLAMP,BRAKE HOSE 92171 92171-0316 2
CLAMP,DIA=13 92171B 92171-1415 9
SCREW,TAPPING,6X16 92172 92172-0739 2
BRACKET 11055 11055-0433 2 CN
HOLDER,BATTERY 13280A 13280-7505 1 CN
WIRE-LEAD,BATTERY(+) 26011A 26011-0130 1 CN
WIRE-LEAD,BATTERY(+) 26011B 26011-0190 1 US
BATTERY,12V 14AH 26012 26012-0107 1 US
BATTERY,MF,KMX14-BS,12V 12AH 26012A 26012-1414 1 CN
BAND,BATTERY,UPP 92072 92072-0128 1 US
COLLAR,10.22X12.7X158.8 92152 92152-0794 2 US
COLLAR,10.2X12.7X150.6 92152A 92152-0841 2 CN
BOLT-FLANGED,6X16 130 130BA0616 2 US
BOLT-FLANGED,8X18 130A 130BA0818 3 US
BOLT-FLANGED,8X18 130A 130BA0818 5 CN
DAMPER 92161 92161-0578 1 US
DAMPER 92161A 92161-0579 3 US
DAMPER 92161B 92161-0580 2 CN
DAMPER,88X25X4 92161C 92161-0844 1 CN
DAMPER,130X74X4 92161D 92161-0846 1 CN
CLAMP 92171A 92171-0453 11 CN
CLAMP 92171A 92171-0453 12 US
NUT,PLATE,6MM 92210 92210-1352 2 US
