Parts Diagrams |

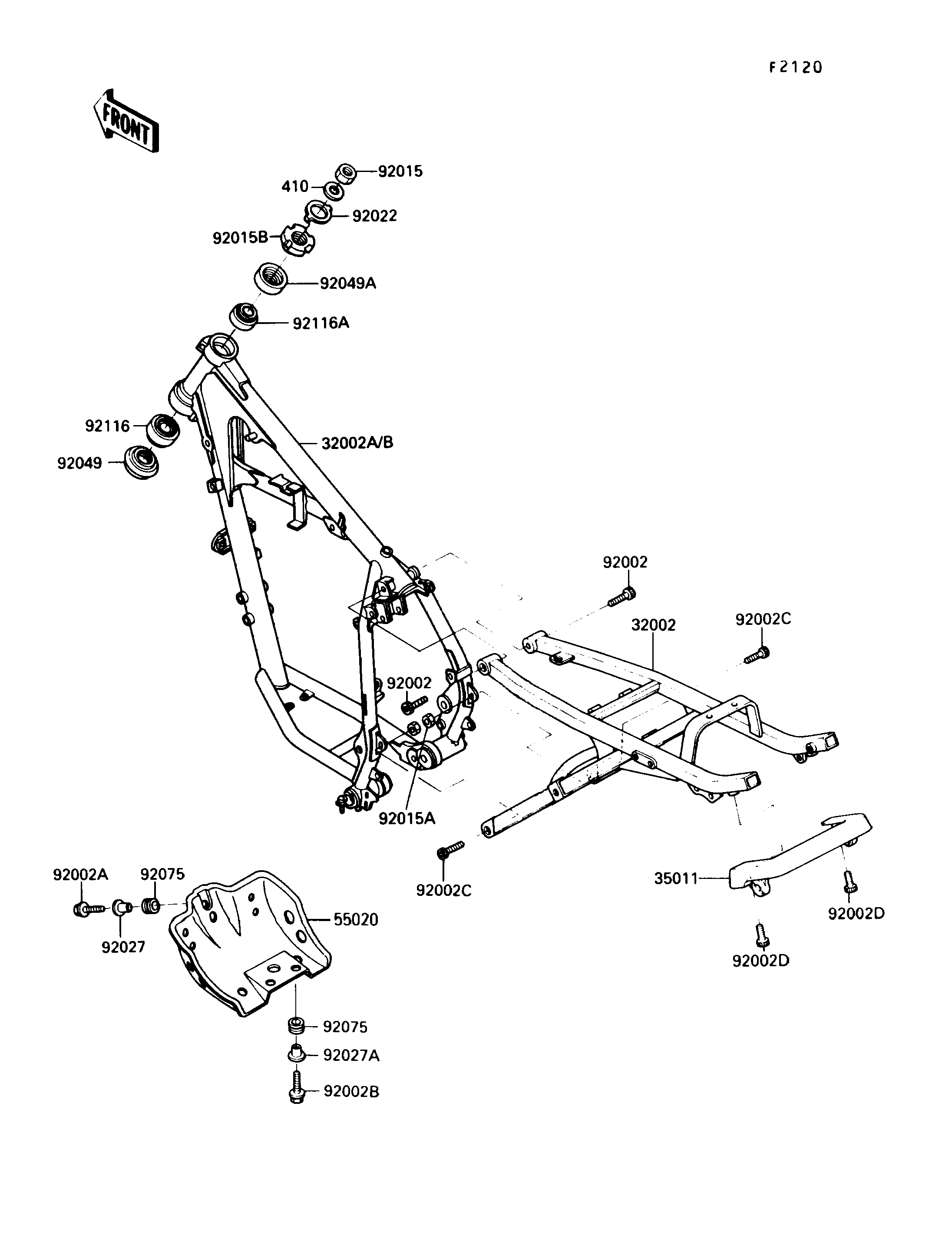

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FRAME-COMP,RR | 32002 | 32002-1762 | 1 | ||
FRAME-COMP,FR | 32002A | 32002-1925 | 1 | CNUS | |
FRAME-COMP,FR | 32002B | 32002-1926 | 1 | CA | |
STAY,FRAME,RR | 35011 | 35011-1236 | 1 | ||
GUARD,ENGINE | 55020 | 55020-1168 | 1 | ||
BOLT,SOCKET,8X40 | 92002 | 92002-1181 | 2 | ||
BOLT,FLANGED,8X20 | 92002A | 92002-1417 | 1 | ||
BOLT,6X20 | 92002B | 92002-1418 | 2 | ||
BOLT,SOCKET,8X25 | 92002C | 92002-1442 | 2 | ||
BOLT,SOCKET,8X10 | 92002D | 92002-1443 | 2 | ||
NUT,18MM | 92015 | 92015-1404 | 1 | ||
NUT,FLANGED,8MM | 92015A | 92015-1406 | 2 | ||
NUT,25MM,T=12 | 92015B | 92015-1546 | 1 | ||
WASHER,CLAW,18.5X30X2.3 | 92022 | 92022-1555 | 1 | ||
COLLAR,L=12 | 92027 | 92027-1842 | 1 | ||
COLLAR,L=13.1 | 92027A | 92027-251 | 2 | ||
SEAL-OIL,XMHE36X52X4J | 92049 | 92049-1162 | 1 | ||
SEAL-OIL,STEERING STEM | 92049A | 92049-1214 | 1 | ||
DAMPER | 92075 | 92075-209 | 3 | ||
BEARING-ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 | ||
BEARING-ROLLER,HICAP 32005JR | 92116A | 92116-1052 | 1 | ||
W-PLAIN-S | 410 | 410F1800 | 1 |
FRAME-COMP,RR | |
REF # | 32002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FRAME-COMP,FR | |
REF # | 32002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CNUS |
REMARKS |
FRAME-COMP,FR | |
REF # | 32002B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
STAY,FRAME,RR | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,ENGINE | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X40 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X20 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X25 | |
REF # | 92002C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X10 | |
REF # | 92002D |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,18MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,25MM,T=12 | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,CLAW,18.5X30X2.3 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,L=12 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,L=13.1 | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,XMHE36X52X4J | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,STEERING STEM | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BEARING-ROLLER,HR320/28XJ | |
REF # | 92116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-ROLLER,HICAP 32005JR | |
REF # | 92116A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
W-PLAIN-S | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
