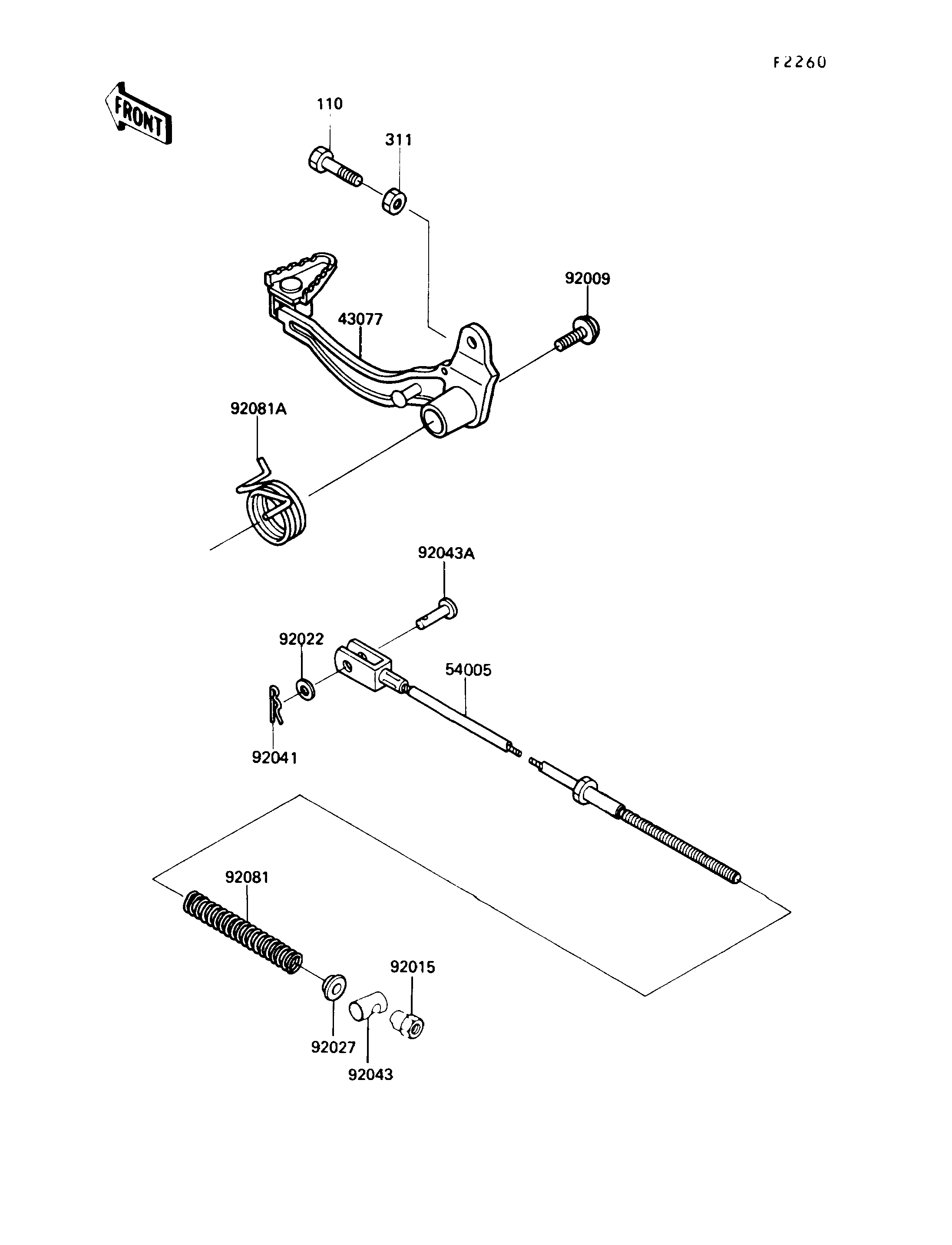

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-ASSY-BRAKE,PEDAL 43077 43077-1055 1
CABLE-BRAKE,RR 54005 54005-1108 1
SCREW,6X10,WHITE 92009 92009-1286 1
NUT,BRAKE ROD 92015 92015-042 1
WASHER,6.5X11.5X0.8 92022 92022-1556 1
COLLAR 92027 92027-1794 1
COTTER,2.0X15 92041 92041-1052 1
PIN,BRAKE ROD 92043 92043-065 1
PIN,6X14.5 92043A 92043-125 1
SPRING,REAR BRAKE CABLE 92081 92081-1610 1
SPRING,BRAKE PEDAL RETURN 92081A 92081-1782 1
BOLT,6X25 110 110C0625 1
NUT-HEX,6MM 311 311B0600 1
