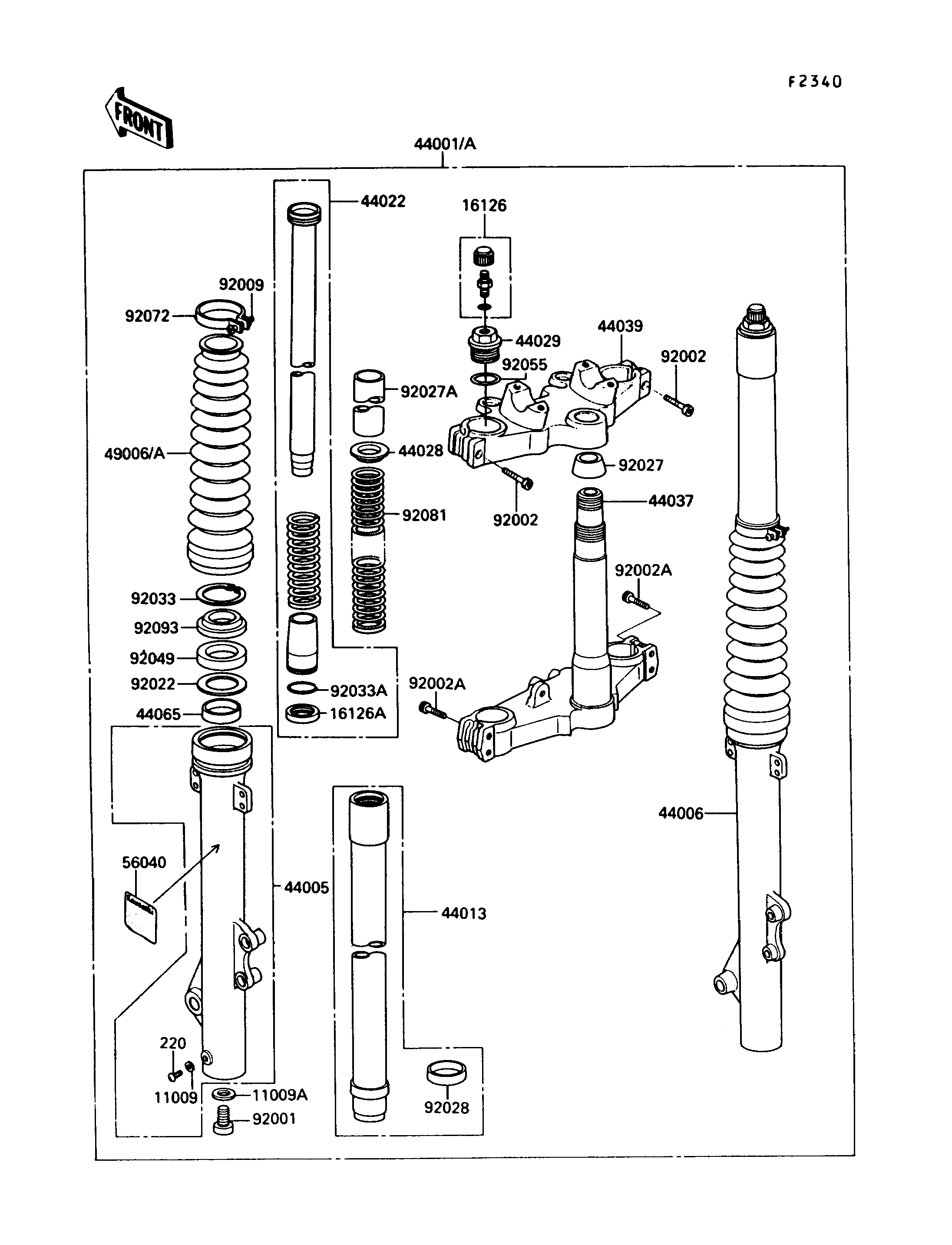

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK DRAIN PLUG 11009 44045-002 2
GASKET 11009A 44045-057 2
VALVE,AIR 16126 16126-1052 2
VALVE,FORK CYLINDER 16126A 16126-1123 2
FORK-FRONT,BLUE NO.32 44001A 44001-1552-GF 1
PIPE-LEFT FORK OUTER 44005 44005-1226 1
PIPE-RIGHT FORK OUTER 44006 44006-1226 1
PIPE-FORK INNER 44013 44013-1224 2
CYLINDER-FORK 44022 44022-1175 2
GUIDE-FORK SPRING 44028 44028-1004 2
SEAT-FORK SPRING 44029 44029-1119 2
HOLDER-FORK UNDER 44037 44037-1178 1
HOLDER-FORK UPPER 44039 44039-1121 1
BUSHING-FRONT FORK 44065 44065-1016 2
BOOT,FORK,BLUE NO.32 49006A 49006-1009-GF 2
LABEL-WARNING,FRONT FORK 56040 56040-1120 1
BOLT,SOCKET,FORK CYLINDER 92001 44041-040 2
BOLT,SOCKET,8X32 92002 92002-1277 2
BOLT,FLANGED,8X40 92002A 92002-1476 4
SCREW,4X16 92009 92009-1348 2
WASHER,FRONT FORK 92022 92022-1275 2
COLLAR,UPPER BRACKET 92027 92027-1791 1
COLLAR,L=165 92027A 92027-1872 2
BUSHING,INNER PIPE 92028 92028-1354 2
RING-SNAP 92033 44044-015 2
RING-SNAP,FORK CYLINDER 92033A 92033-1004 2
SEAL-OIL,FORK OUTER PIPE 92049 92049-1216 2
RING-O,FORK TOP CAP 92055 92055-1051 2
BAND,BOOT 92072 92072-1008 2
SPRING,FRONT FORK 92081 92081-1825 2
SEAL,FORK OUTER PIPE 92093 92093-1181 2
SCREW-PAN-CROS 220 220B0408 2
