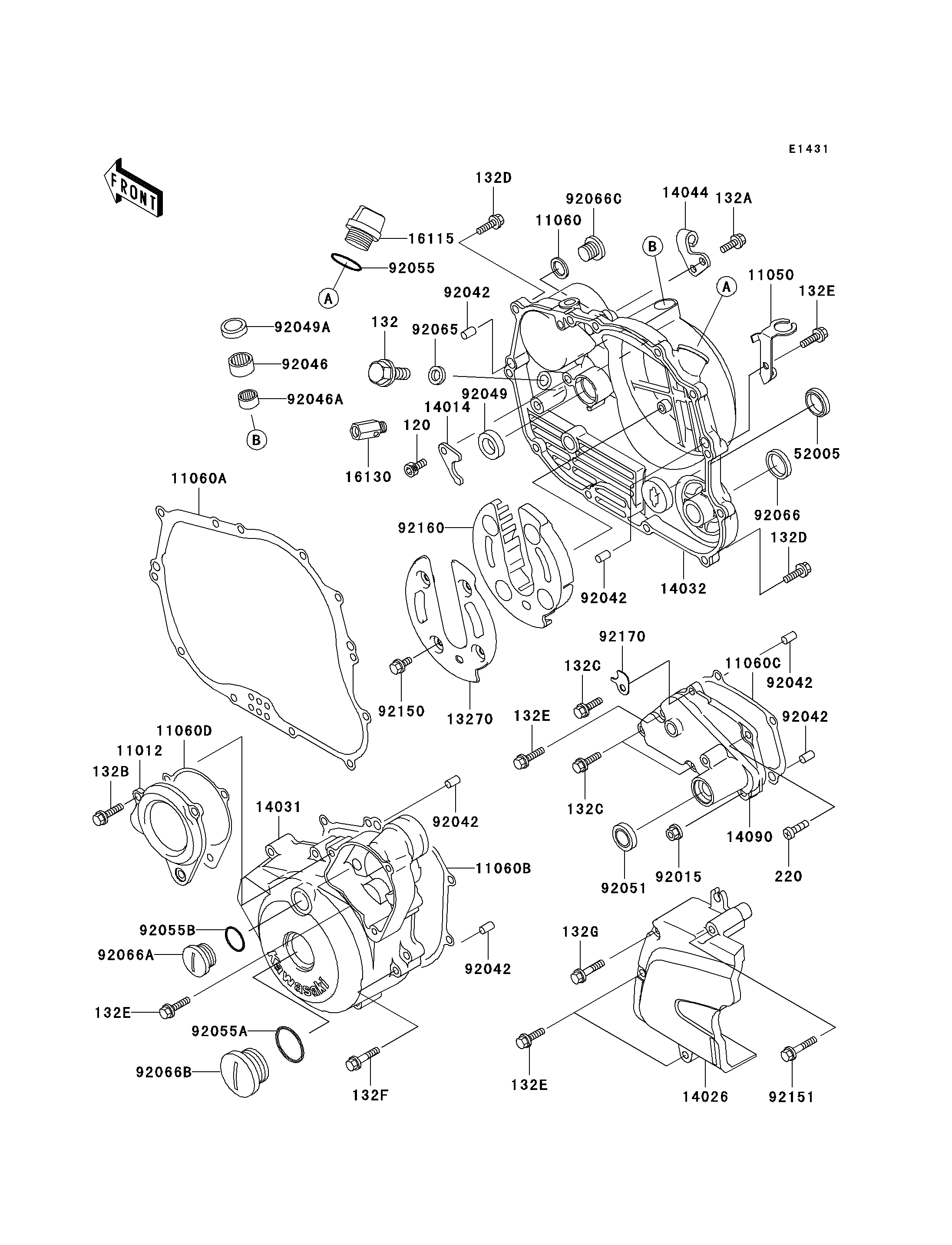

2003 Super Sherpa - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
132
132
132A
132A
132B
132B
11012
11012
11050
11050
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
11060D
11060D
13270
13270
14014
14014
14026
14026
14031
14031
14032
14032
14044
14044
14090
14090
16115
16115
16130
16130
52005
52005
92015
92015
92042
92042
92042
92042
92042
92042
92042
92042
92042
92042
92042
92042
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92051
92051
92055
92055
92055A
92055A
92055B
92055B
92065
92065
92066
92066
92066A
92066A
92066B
92066B
92066C
92066C
92150
92150
92151
92151
92160
92160
92170
92170
132C
132C
132C
132C
132D
132D
132D
132D
132E
132E
132E
132E
132E
132E
132E
132E
132F
132F
132G
132G
220
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X10 120 120P0610 1
BOLT-FLANGED-SMALL 132 132L0812 1
BOLT-FLANGED-SMALL 132A 132Y0616 2
BOLT-FLANGED-SMALL 132B 132Y0618 3
CAP 11012 11012-1994 1
BRACKET 11050 11050-1139 1
GASKET,ROCKER SHAFT 11060 11060-1287 2
GASKET,CLUTCH COVER INNER 11060A 11060-1324 1
GASKET,GENERATOR COVER 11060B 11060-1326 1
GASKET,TRANSMISSION COVER 11060C 11060-1327 1
GASKET,CAP 11060D 11060-1641 1
PLATE 13270 13270-1781 1
PLATE-POSITION 14014 14014-1062 1
COVER-CHAIN 14026 14026-1248 1
COVER-GENERATOR 14031 14031-1341 1
COVER-CLUTCH 14032 14032-1458 1
HOLDER-CABLE 14044 14044-1093 1
COVER,TRANSMISSION 14090 14090-1793 1
CAP-OIL FILLER 16115 16115-1053 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
GAUGE,OIL LEVEL 52005 52005-1009 1
NUT,FLANGED,6MM 92015 92015-1193 1
PIN,DOWEL,6.3X8X14 92042 92042-007 6
BEARING-NEEDLE,HK1210 92046 92046-1010 1
BEARING-NEEDLE 92046A 92046-1230 1
SEAL-OIL 92049 92049-1191 1
SEAL-OIL 92049A 92049-1262 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O 92055 92055-012 1
RING-O 92055A 92055-091 1
RING-O 92055B 92055-1146 1
GASKET 92065 92065-023 1
PLUG,RCA297 92066 92066-1411 1
PLUG,TOP MAKE 92066A 92066-1456 1
PLUG,CRANK 92066B 92066-1457 1
PLUG 92066C 92066-1481 2
BOLT,5X8 92150 92150-1406 4
BOLT,6X55 92151 92151-1287 1
DAMPER 92160 92160-1823 1
CLAMP 92170 92170-1785 1
BOLT-FLANGED-SMALL 132C 132Y0620 3
BOLT-FLANGED-SMALL 132D 132Y0625 11
BOLT-FLANGED-SMALL 132E 132Y0630 6
BOLT-FLANGED-SMALL 132F 132Y0640 6
BOLT-FLANGED-SMALL 132G 132Y0645 1
SCREW-PAN-CROS 220 220X0616 1
