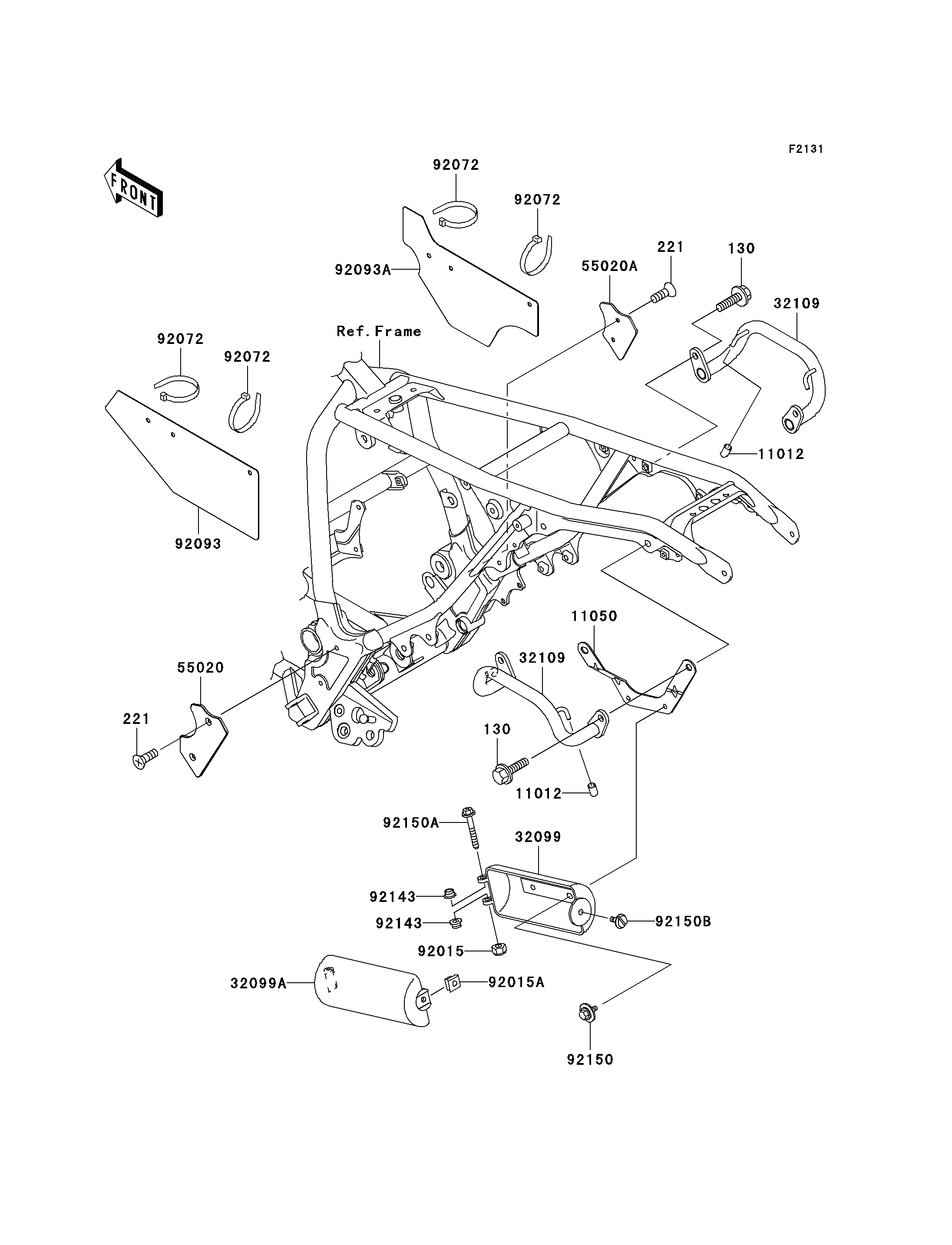

2004 Super Sherpa (Canada Only) - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
221
221
11012
11012
11050
32099
32099A
32109
32109
55020
55020A
92015
92015A
92072
92072
92072
92072
92093
92093A
92143
92143
92150
92150A
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130G0816 4
SCREW-CSK-CROSS,5X12 221 221B0512 4
CAP,BUNGEE CORD HOOK 11012 11012-1589 4
BRACKET,TOOL CASE,C.GRAY 11050 11050-1445-EZ 1
CASE,TOOL,BODY 32099 32099-1184 1
CASE,TOOL,CAP 32099A 32099-1185 1
GRIP-FRAME,C.GRAY 32109 32109-1260-EZ 2
GUARD,FOOT,LH 55020 55020-1606 1
GUARD,FOOT,RH 55020A 55020-1607 1
NUT,LOCK,5MM 92015 92015-1221 1
NUT,6MM 92015A 92015-1602 1
BAND,L=202 92072 92072-1195 4
SEAL,AIR CLEANER,LH 92093 92093-1450 1
SEAL,AIR CLEANER,RH 92093A 92093-1451 1
COLLAR 92143 92143-1234 2
BOLT,6X14 92150 92150-1392 2
BOLT,ADJUST,5X45 92150A 92150-1590 1
BOLT,6X14 92150B 92150-3732 1
