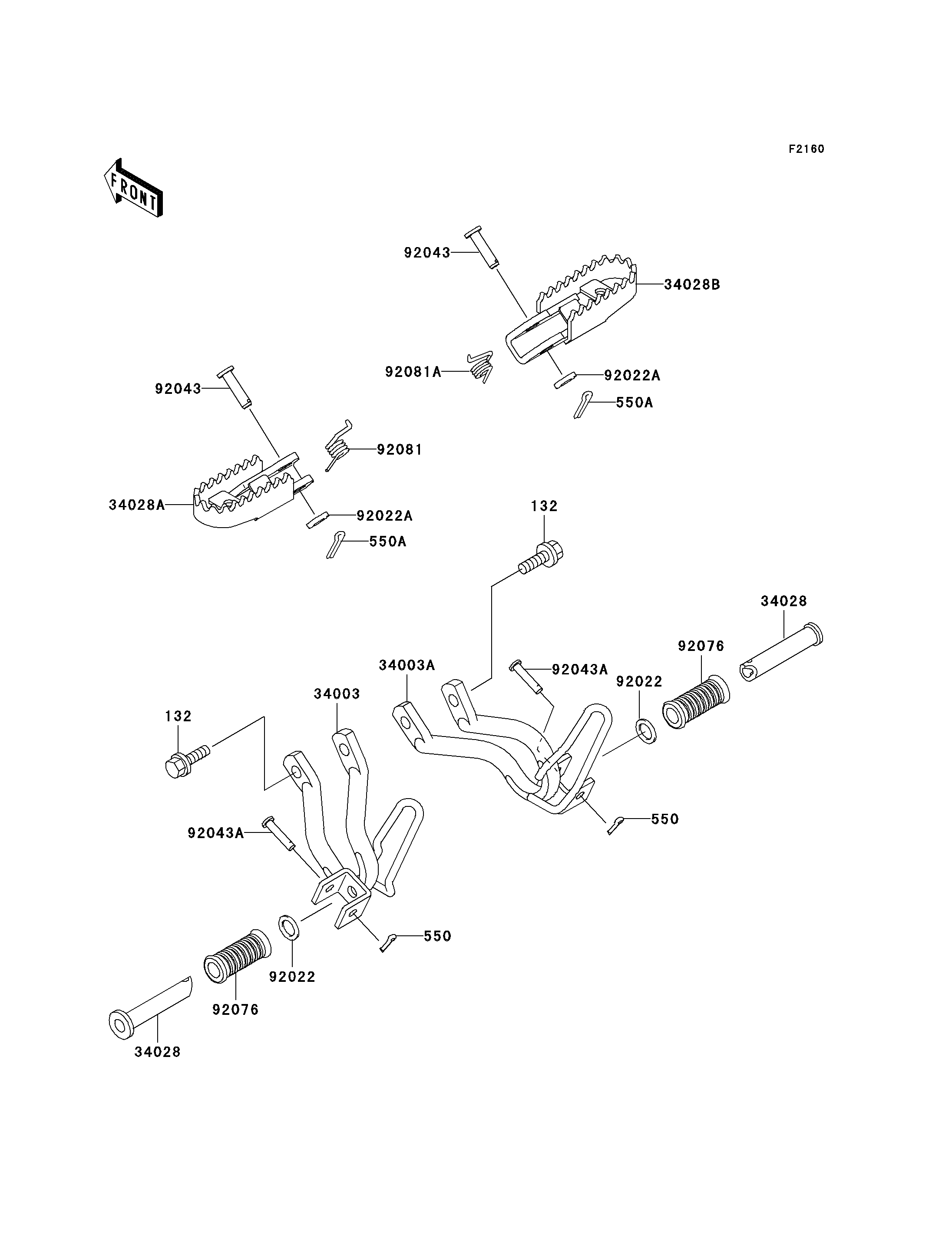

2004 Super Sherpa (Canada Only) - Footrests

DOWNLOAD PDF
SELECT A NEW PART
132
132
550
550
550A
550A
34003
34003A
34028
34028
34028A
34028B
92022
92022
92022A
92022A
92043
92043
92043A
92043A
92076
92076
92081
92081A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0820 4
PIN-COTTER,2.0X15 550 550D2015 2
PIN-COTTER,2.0X18 550A 550D2018 2
HOLDER-STEP,RR,LH,C.GRAY 34003 34003-1460-EZ 1
HOLDER-STEP,RR,RH,C.GRAY 34003A 34003-1461-EZ 1
STEP,RR 34028 34028-009 2
STEP,FR,LH 34028A 34028-1431 1
STEP,FR,RH 34028B 34028-1432 1
WASHER,20X30X2.3 92022 92022-1568 2
WASHER,10.5X20X1 92022A 92022-239 2
PIN,10X35 92043 92043-1217 2
PIN,6X28 92043A 92043-1464 2
DAMPER 92076 92076-020 2
SPRING,STEP,LH 92081 92081-1606 1
SPRING,STEP,RH 92081A 92081-1607 1
