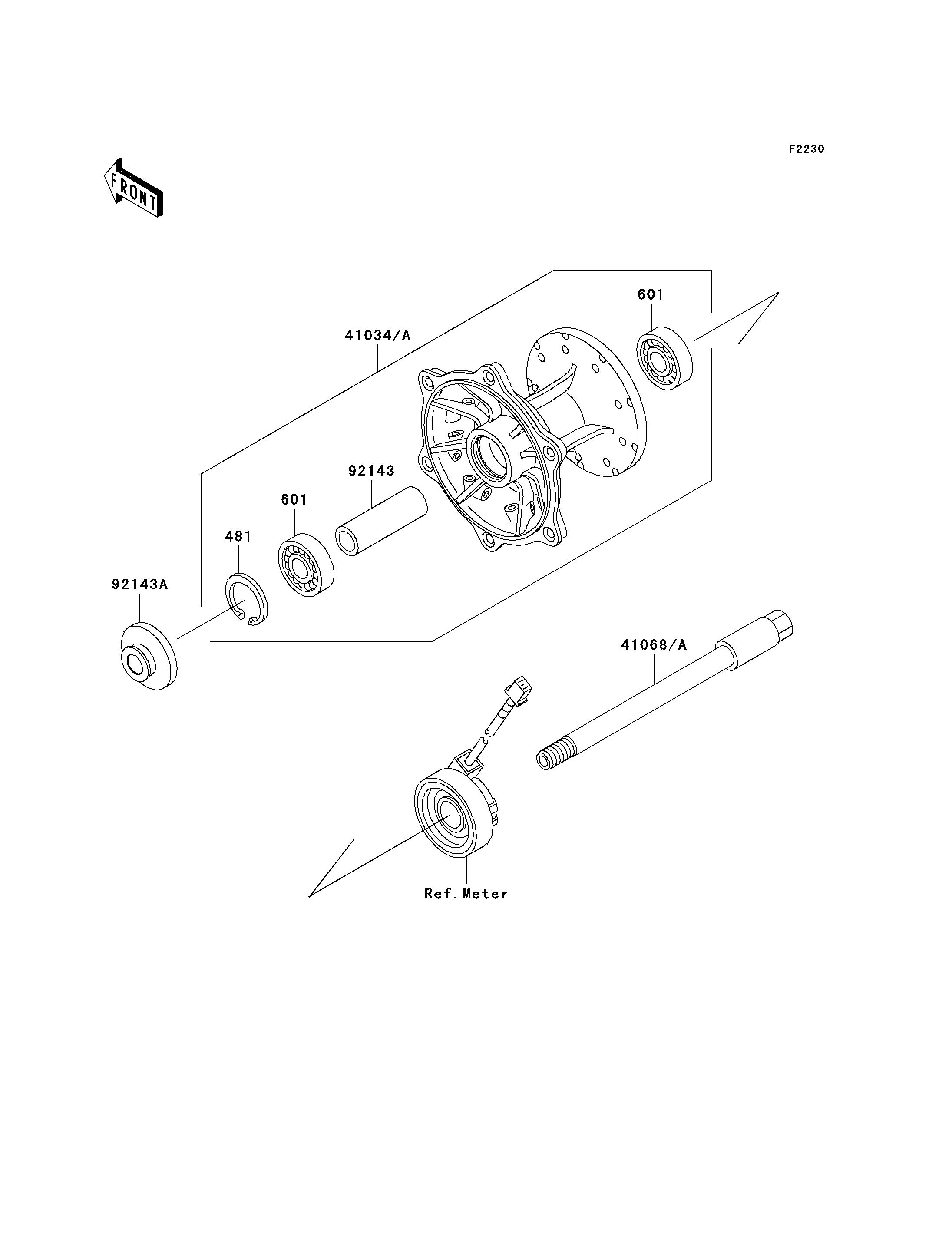

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,35MM 481 481J3500 1
BEARING-BALL,#6202UG 601 601B6202UG 2
DRUM-ASSY,FRONT BRAKE 41034 41034-0007 1
AXLE,FR 41068 41068-0013 1
COLLAR,15.2X22X67 92143 92143-1033 1
COLLAR,FR AXLE,L=19.5 92143A 92143-1918 1
