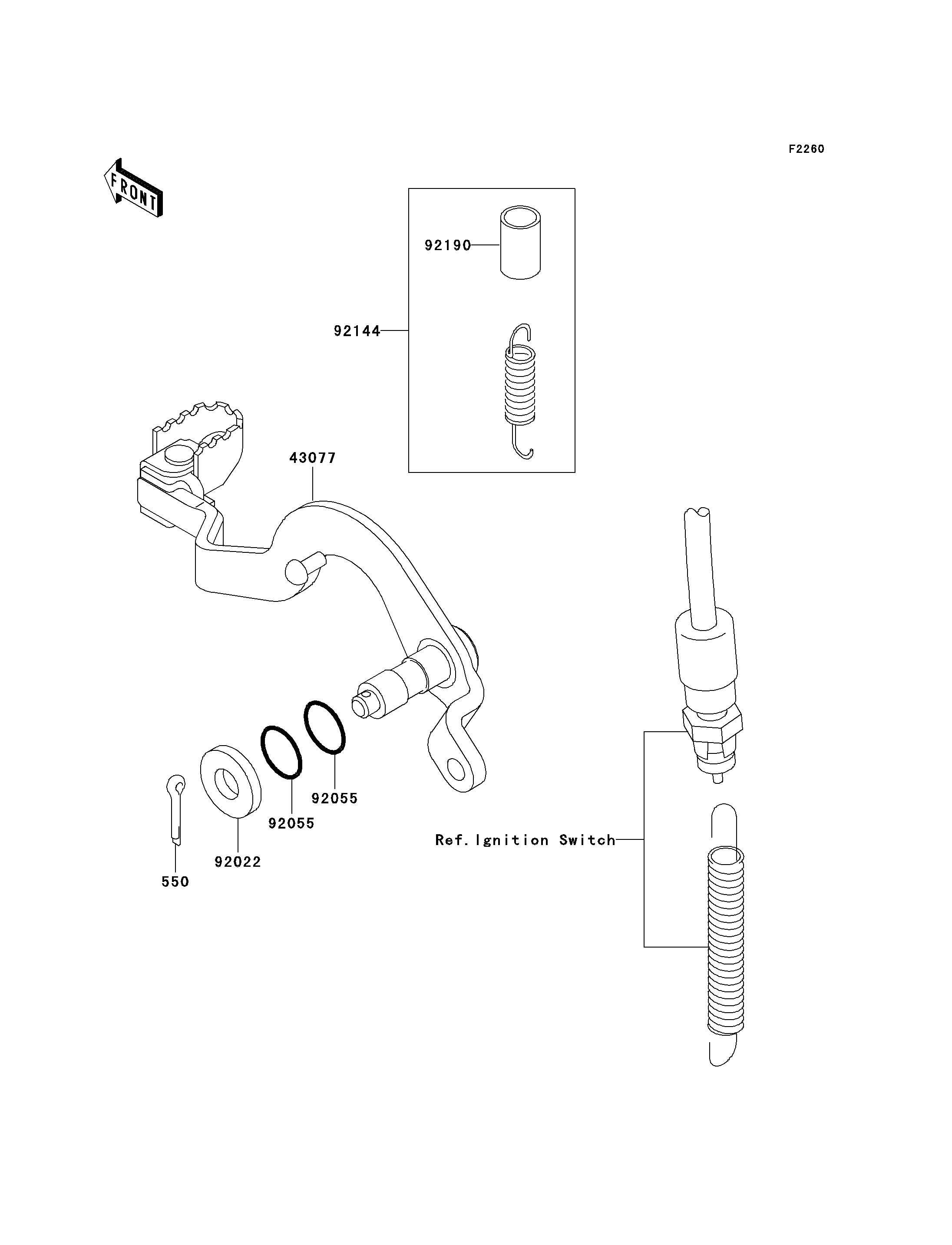

550
43077
92022
92055
92055
92144
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,2.5X25 550 550D2525 1
LEVER-ASSY-BRAKE,PEDAL 43077 43077-1083 1
WASHER,8.5X20X1.6 92022 92022-1561 1
RING-O,OD=18.5 92055 92055-1148 2
SPRING,BRAKE PEDAL RETURN 92144 92144-1752 1
TUBE,13X16X25 92190 92190-1488 1
