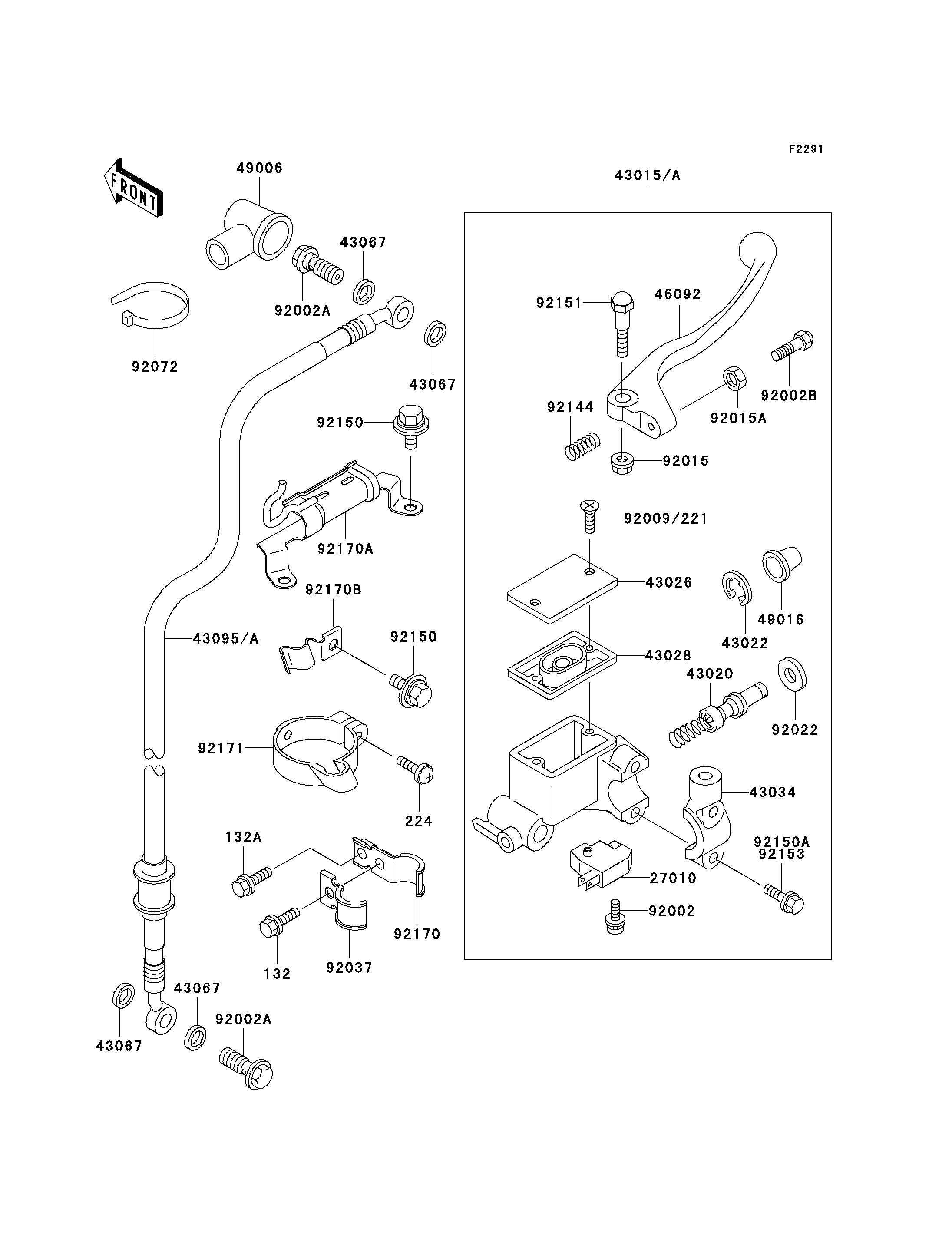

2004 Super Sherpa (Canada Only) - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
132A
221
224
27010
43015
43020
43022
43026
43028
43034
43067
43067
43067
43067
43095A
46092
49006
49016
92002
92002A
92002A
92002B
92015
92015A
92022
92037
92072
92144
92150
92150
92151
92153
92170
92170A
92170B
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0612 1
BOLT-FLANGED-SMALL 132A 132J0616 1
SCREW-CSK-CROSS 221 221R0412 2
SCREW-PAN-WP-CROS,5X20 224 224B0520 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0021 1
PISTON-COMP-BRAKE 43020 43020-1065 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1081 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1144 1
WASHER,10.5X15X1.5 43067 43067-001 4
HOSE-BRAKE,FR 43095A 43095-1328 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1199 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT,OIL,L=23 92002A 92002-1888 2
BOLT,ADJUST 92002B 92002-1893 1
NUT,FLANGED,6MM 92015 92015-1528 1
NUT,ADJUST 92015A 92015-1642 1
WASHER 92022 92022-1814 1
CLAMP,HOSE 92037 92037-1898 1
BAND,L=202 92072 92072-1195 2
SPRING,RETURN 92144 92144-1103 1
BOLT,6X12 92150 92150-1435 3
BOLT,LEVER SET 92151 92151-1215 1
BOLT 92153 92153-0547 2
CLAMP,BRAKE HOSE 92170 92170-1749 1
CLAMP,BRAKE HOSE 92170A 92170-1778 1
CLAMP,BRAKE HOSE 92170B 92170-1781 1
CLAMP,BRAKE HOSE 92171 92171-1079 1
