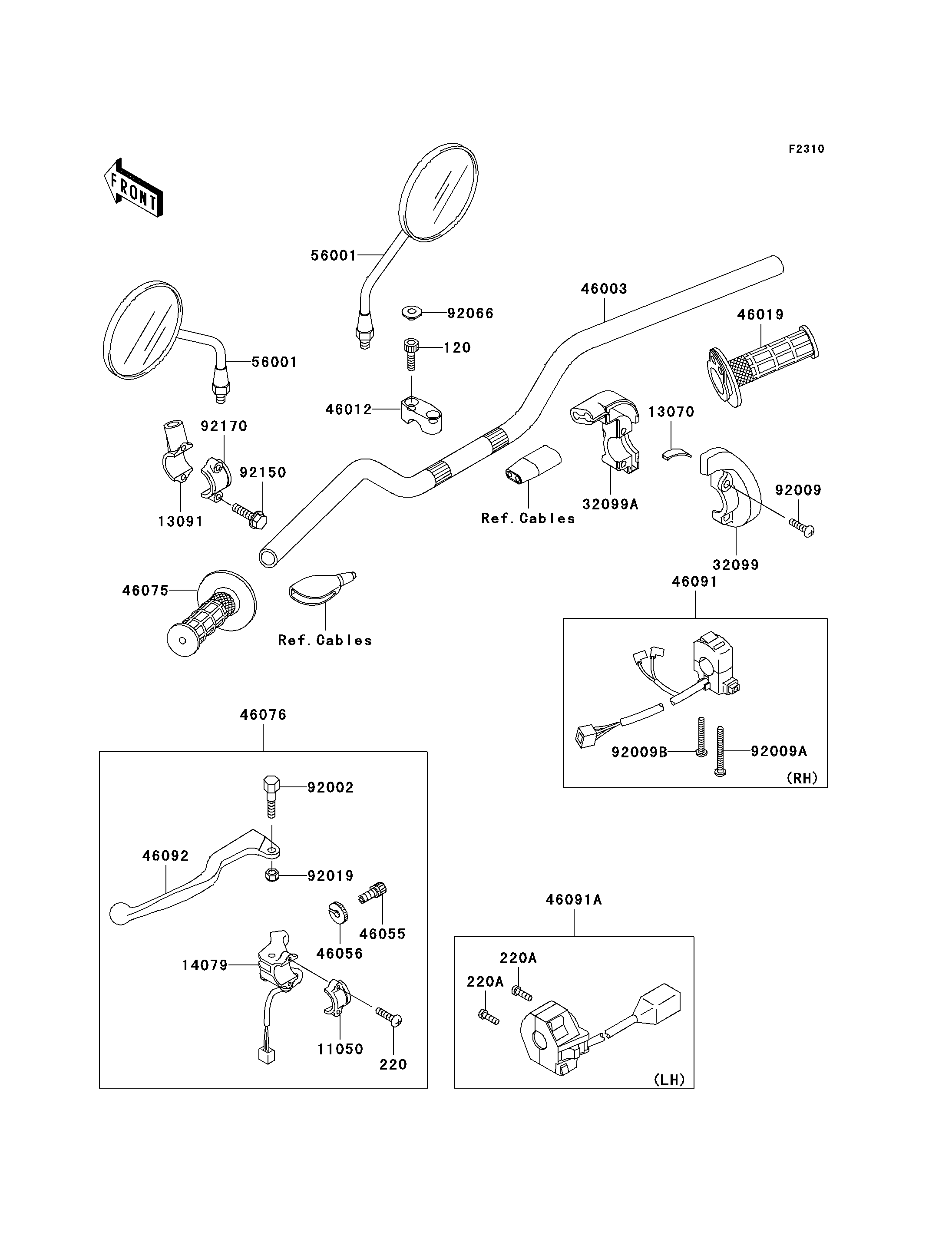

2004 Super Sherpa (Canada Only) - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
120
220
220A
220A
11050
13070
13091
14079
32099
32099A
46003
46012
46019
46055
46056
46075
46076
46091
46091A
46092
56001
56001
92002
92009
92009A
92009B
92019
92066
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30,BLACK 120 120S0830 4
SCREW-PAN-CROS 220 220B0514 2
SCREW-PAN-CROS 220A 220C0530 2
BRACKET,LEVER HOLDER 11050 11050-1310 1
GUIDE,THROTTLE CABLE 13070 13070-1274 1
HOLDER,MIRROR 13091 13091-1995 1
HOLDER-ASSY,CLUTCH CABLE 14079 14079-1122 1
CASE,THROTTLE,UPP 32099 32099-1146 1
CASE,THROTTLE,LWR 32099A 32099-1186 1
HANDLE 46003 46003-1465 1
HOLDER-HANDLE,UPP 46012 46012-1276 2
GRIP-ASSY,THROTTLE 46019 46019-1093 1
SCREW,CABLE ADJUST,8MM 46055 46055-009 1
NUT,CABLE ADJUST 46056 46056-006 1
GRIP,LH 46075 46075-1149 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1211 1
HOUSING-ASSY-CONTROL,RH 46091 46091-1678 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-1690 1
LEVER-GRIP,CLUTCH 46092 46092-1159 1
MIRROR-ASSY 56001 56001-1339 2
BOLT,LEVER SET 92002 92002-1150 1
SCREW,5X16 92009 92009-1699 2
SCREW,4X45 92009A 92009-1803 1
SCREW,4X32 92009B 92009-1804 1
NUT,LOCK,6MM 92019 92019-008 1
PLUG 92066 92066-1277 4
BOLT 92150 92150-1474 2
CLAMP,LEVER HOLDER 92170 92170-1226 1
