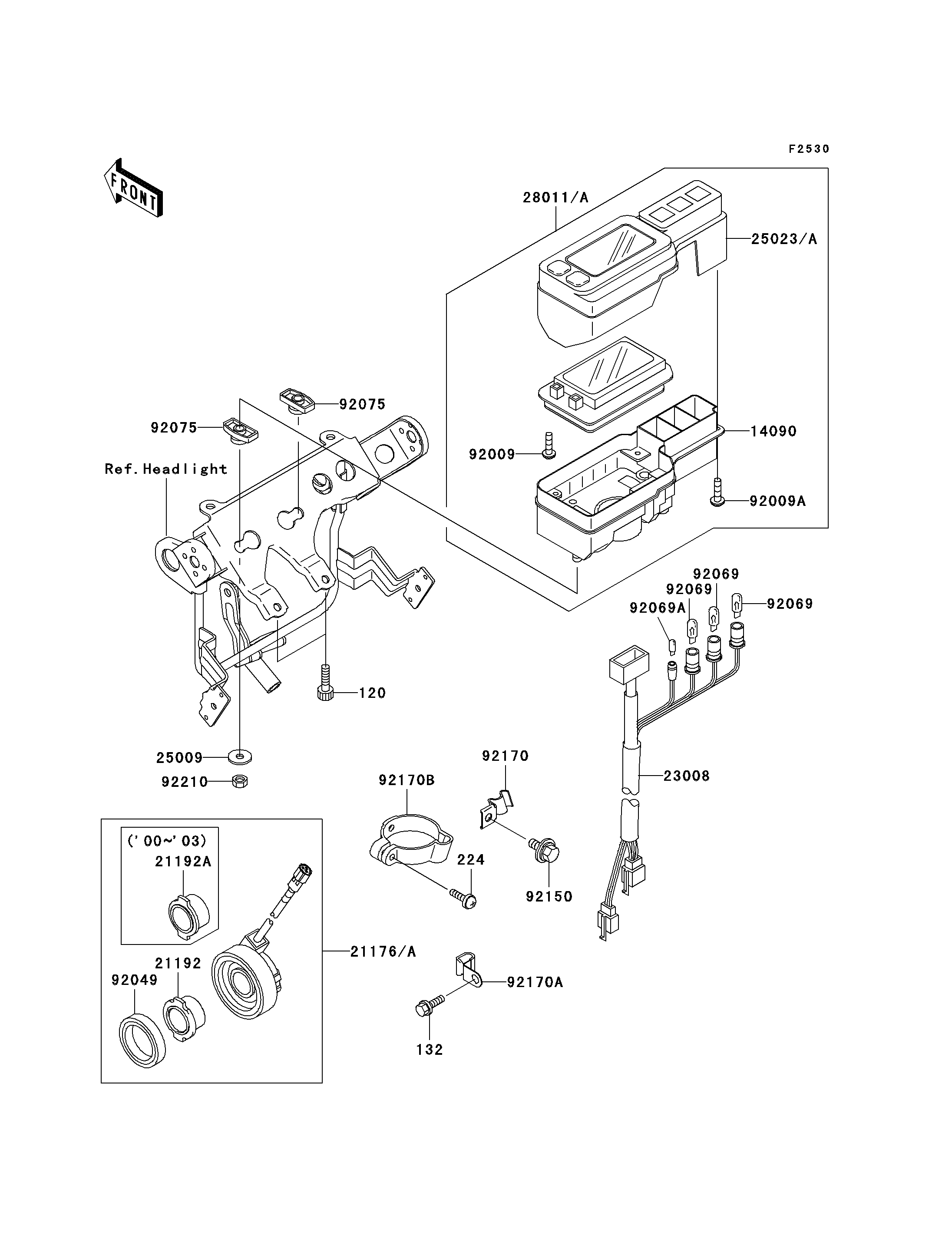

2003 Super Sherpa - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
120
132
224
14090
21176A
21192A
23008
25009
92009
92009A
92049
92069
92069
92069
92069A
92075
92075
92150
92170
92170A
92170B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120P0612 2
BOLT-FLANGED-SMALL 132 132G0608 1
SCREW-PAN-WP-CROS,5X20 224 224B0520 1
COVER,METER CASE,LWR 14090 14090-1903 1
SENSOR,SPEED 21176A 21176-1091 1
MAGNET,SPEED SENSOR 21192A 21192-1051 1
SOCKET-ASSY,METER 23008 23008-1579 1
WASHER,5.2X16X1.2 25009 25009-004 2
SCREW,TAPPING,3X12 92009 92009-1028 2
SCREW,TAPPING,3X14 92009A 92009-1592 5
SEAL-OIL,METER GEAR CASE 92049 92049-1172 1
BULB,12V 3.4W,T10 92069 92069-1007 3
BULB,12V 3W,T6.5 92069A 92069-1068 1
DAMPER,METER BRACKET 92075 92075-1581 2
BOLT,6X12 92150 92150-1435 1
CLAMP,METER HARNESS 92170 92170-1782 1
CLAMP 92170A 92170-1804 1
CLAMP,METER HARNESS 92170B 92170-1852 1
NUT,5MM 92210 92210-1124 2
COVER-METER CASE,UPP 25023 25023-1245 1 CN
COVER-METER CASE,UPP 25023A 25023-1250 1 US
METER,DIGITAL 28011 28011-1190 1 CN
METER,DIGITAL,MPH 28011A 28011-1195 1 US
